LED Illuminated indicators and pilot lights, rjs electronics ltd

Indicators & Pilot Lights

show blocks helper

IP Rating
IP Rating Dust & Water Proof Rating / Ingress Rating

  • IP40 (front)
  • IP65 (front)
  • IP67 (front)
  • IP68 (front)

Panel Cut-out

  • Ø 6mm
  • Ø 8mm
  • Ø 10mm
  • Ø 12mm
  • Ø 16mm
  • Ø 19mm
  • Ø 22mm
  • Ø 25mm
  • Ø 28mm
  • Ø 30mm

# of NO Contacts

# of NC Contacts

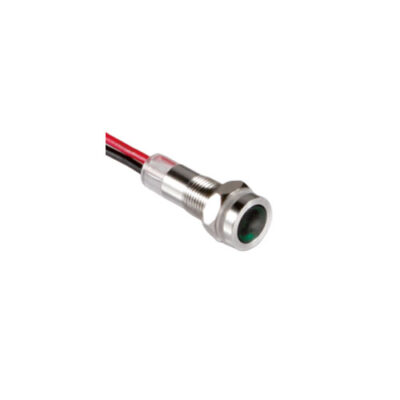

What is an LED Indicator?

An LED indicator displays illumination without the component requiring a push to action. The opposite of the typical push button switch. LED indicators and pilot lights are often found in a number of applications, for example, medical devices.

Pilot lights are also known as power light indicators, commonly used in devices to signpost the start/stop/end of a process. Often indicated by a change in colour, changing from red to green or visa-versa, meaning that Pilot lights are dual colours.

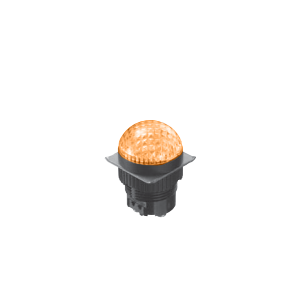

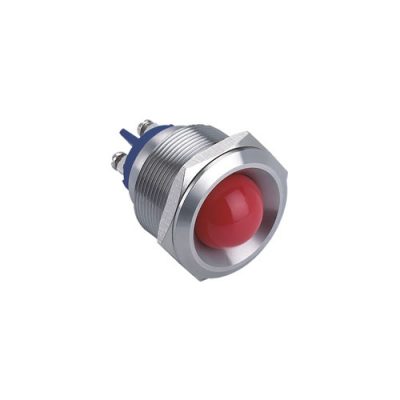

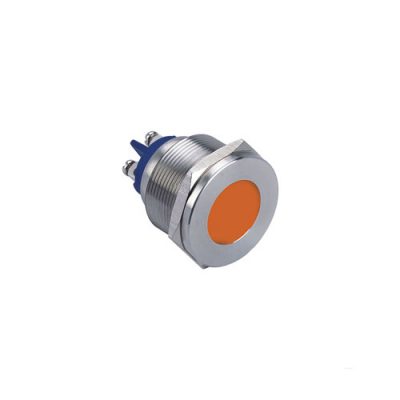

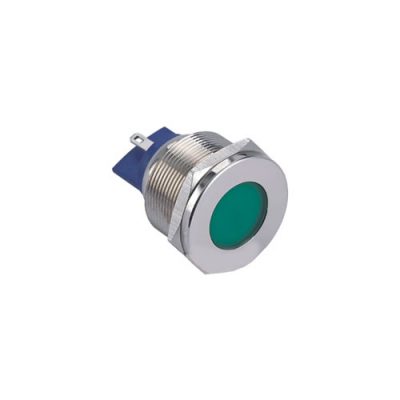

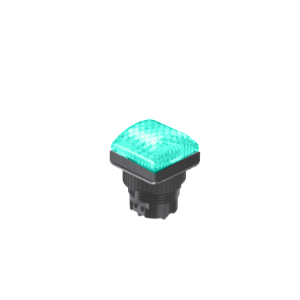

RJS Electronics offers a range of panel mount LED indicators, pilot lights and panel indicators. Select from metal or plastic, available in sizes ranging from 6mm – 30mm, with a range of shapes and IP ratings. Most importantly, they support a range of LED illuminated options to suit your design.

See our full range of plastic LED indicators.

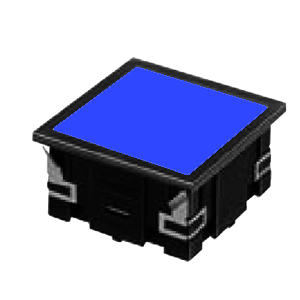

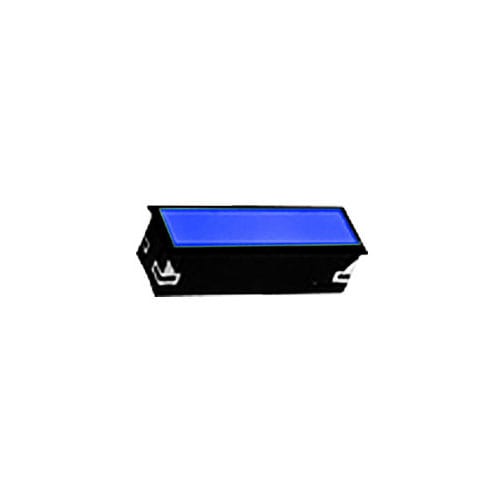

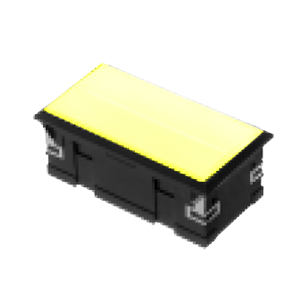

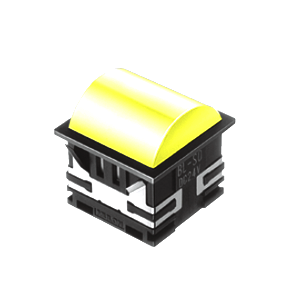

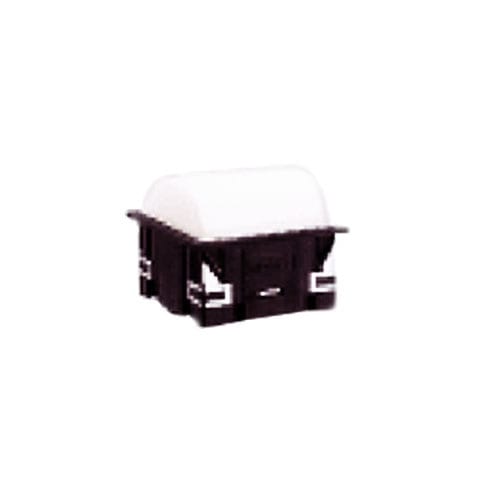

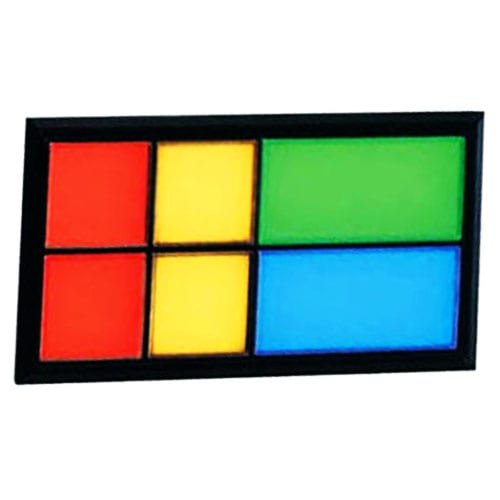

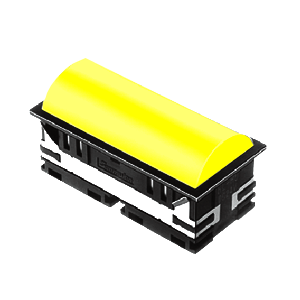

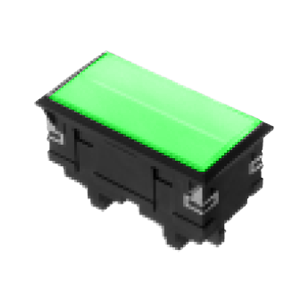

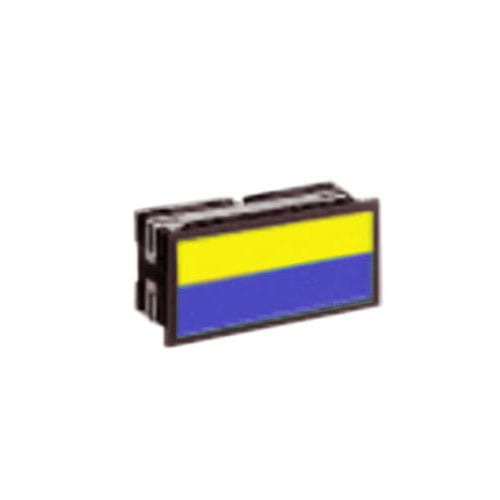

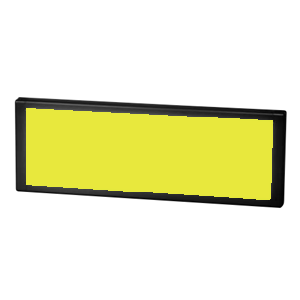

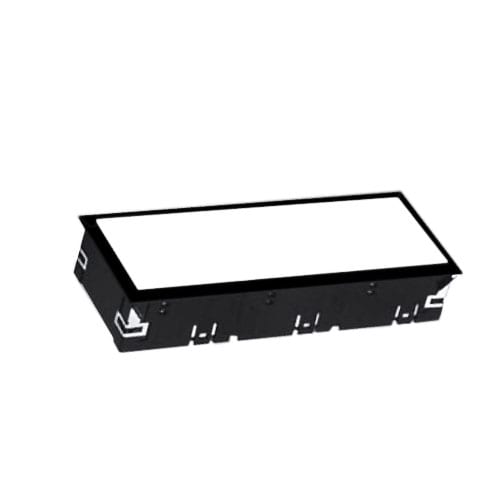

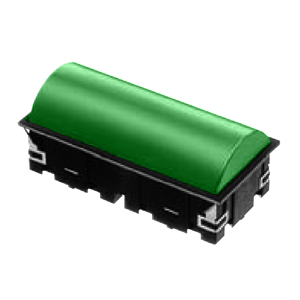

See our full range of LED indicator panels:

LED Options:
Single LED Illumination A single LED illumination is the display of a single LED colour.
Bi-Colour LED Illumination A bi-colour LED switch means it can display two colours together or switch between two LED illumination.
RGB LED Illumination Switches that are listed with ‘RGB’ LED illumination, with the combination ‘red’, ‘blue’ and ‘green’, over 16million hues of light can be achieved. However, some pinks and browns are difficult to achieve.

IP Rating:

What are IP ratings?
IP ratings are standards set out by IEC (International Electrotechnical Commission) under the 60529 standards document which specifies a classification system on the effectiveness in the sealing of enclosures of electrical equipment. This looks at the protection of factors such as dust and water/moisture.

The IP rating will depend on how hard wearing or weatherproof the component needs to be. For example, a metal push button switch in a swimming pool will need to be waterproof and hence this product will need a higher IP rated switch.

See the chart below outlining the IP rating and its characteristics.

IP65 Dust-tight, protected against water projected from a nozzle.
IP66 Dust-tight and protected against powerful water jets.
IP67 Dust-tight and protected from water immersion for 30 minutes between depths of 150mm – 1000mm.
IP68 Dust-tight and protected against continuous water immersion.

How to place an order?

There are many ways to place an order and enquire about our push button Metal switches

We operate Monday – Thursday 8 am – 5 pm and Fridays 8 am – 4.30 pm, call us on +44 (0)1234 213600 to speak to our Sales Engineers or e-mail us on [email protected] alternatively, leave us a message using our online contact form.

Download our latest brochure and Product Catalogue.
