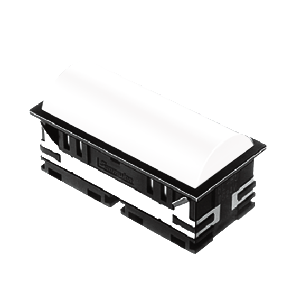

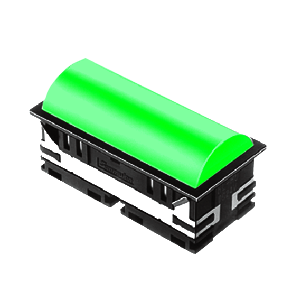

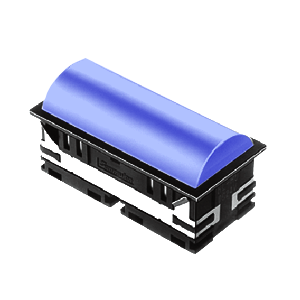

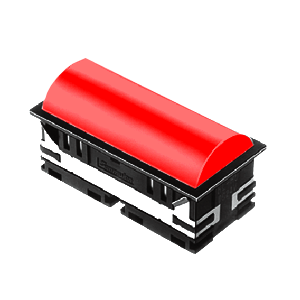

BL Rectangular – Domed Type

This LED Indicator features a 30mm rectangular domed cap and a connector-type terminal. It can support full-face, split-face, negative or 3-colour LED illumination.

Key Features:

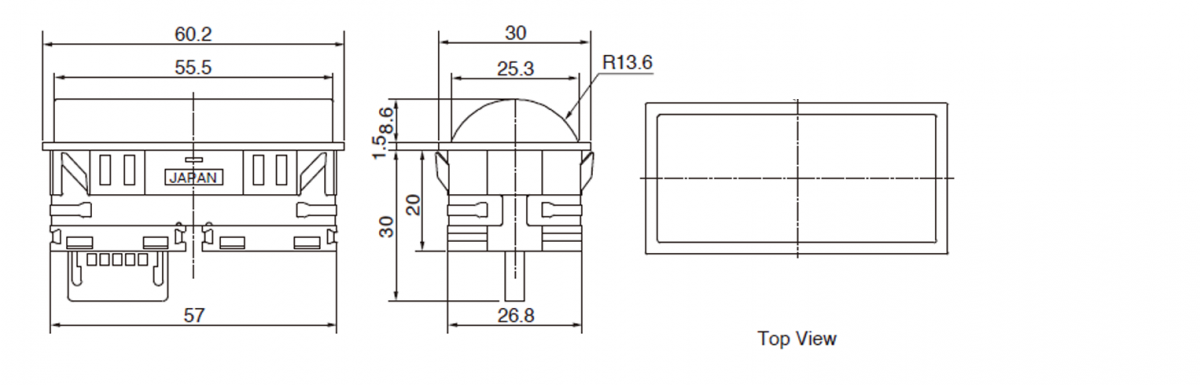

  • 30mm x 20mm rectangle
  • 20mm depth behind panel
  • LED illuminated
  • Full face/split-face illumination (vertical or horizontal)
  • Negative/3-colour (red, green, yellow) options
  • Connector type
  • Full BL series


Single LED options

, , , ,

Split Colour LED Options

red, green/yellow

3 Colour LED Options

Red, Green, Yellow

Product Series

Terminal Options

BL Series specifications

Insulation resistance More than 100MΩ at 500V DC
Dielectric strength 1500V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambient temperature and humidity)
Reverse dielectric strength 150V
Ambient temperature -10°C~+40°C
Ambient humidity 45~80% RH

Panel Mount, LED illuminated, indicator panel - BL, 30mm - Rectangular, Domed Style, RJS Electronics Ltd.
