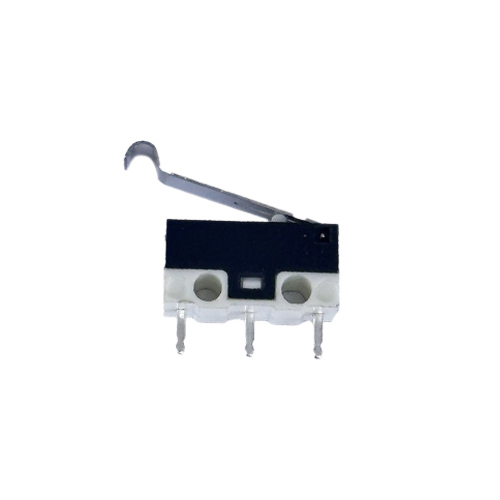

Compact PCB micro switch suitable for a wide range of applications.

Key Features:

  • Micro switch
  • Small in size
  • PCB mount
  • Rating: DC30V 100mA

Data Sheet


Terminal Options


DC30V 100mA

Mechanical Operations

Electrical Operations




Rating: DC30V 100mA Electrical Life: 300,000 cycles
Contact Resistance: 500m Ω  Max Mechanical Life: 300,00 cycles
Insulation Resistance: >100M Ω   DC500V Ambient Temper. Used: -25 °C to 85 °C
Withstand Voltage: AC500V 1min. Ambient Humidity Used: ≤85% at +40 °C
Soldering Temper.: 235 ± 5 °C   5s Operating Force: 30±15gf max

micro switch technical drawing
