| Function | |
|---|---|
| Illumination | |
| Product Series | |
| Single LED options | |
| Multi-Colour LED Options | |
| Thickness | 14 mm |

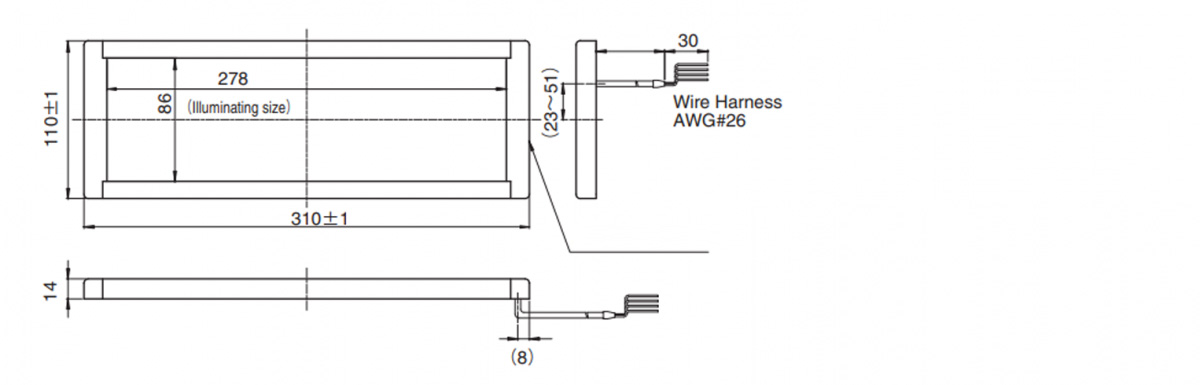

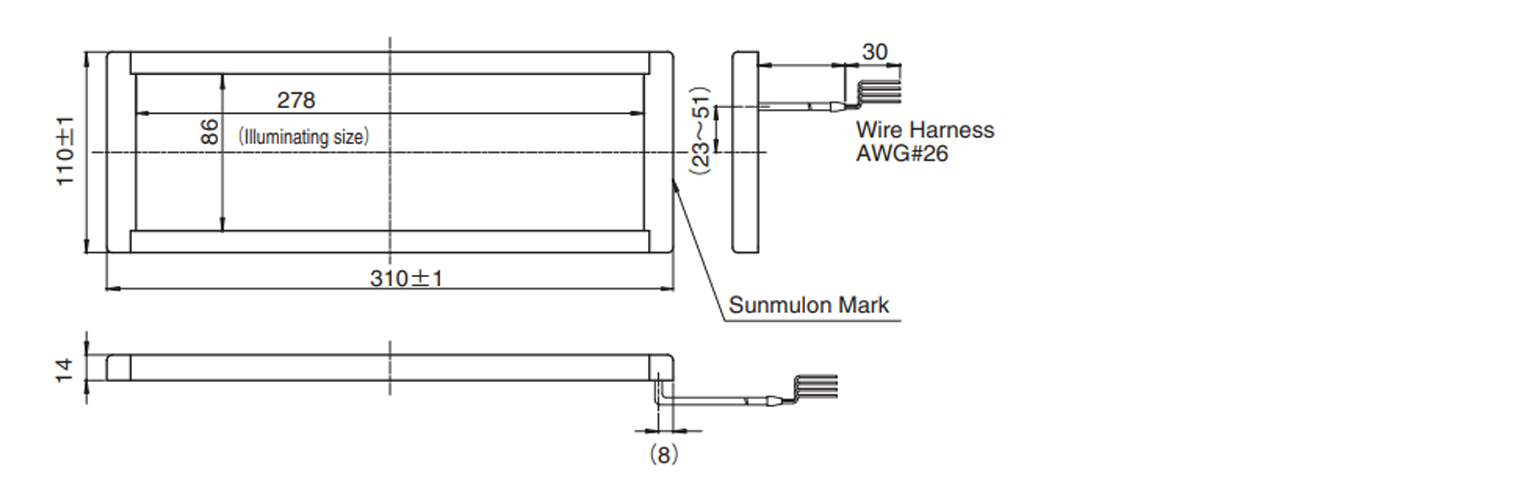

| Size | 26 x 278 mm |

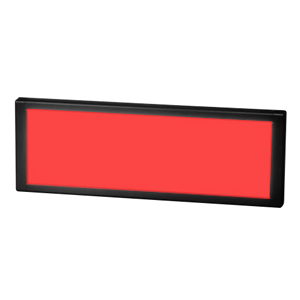

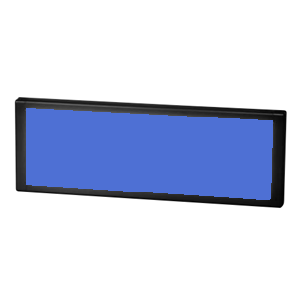

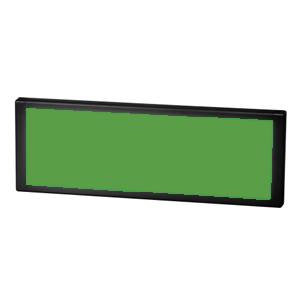

This extra large LED Indicator Panel features an 86mm x 278mm illumination size. It is available with single or bi-colour LED illumination and black or ivory housing.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Product Series | |
| Single LED options | |
| Multi-Colour LED Options | |
| Thickness | 14 mm |
| Size | 26 x 278 mm |

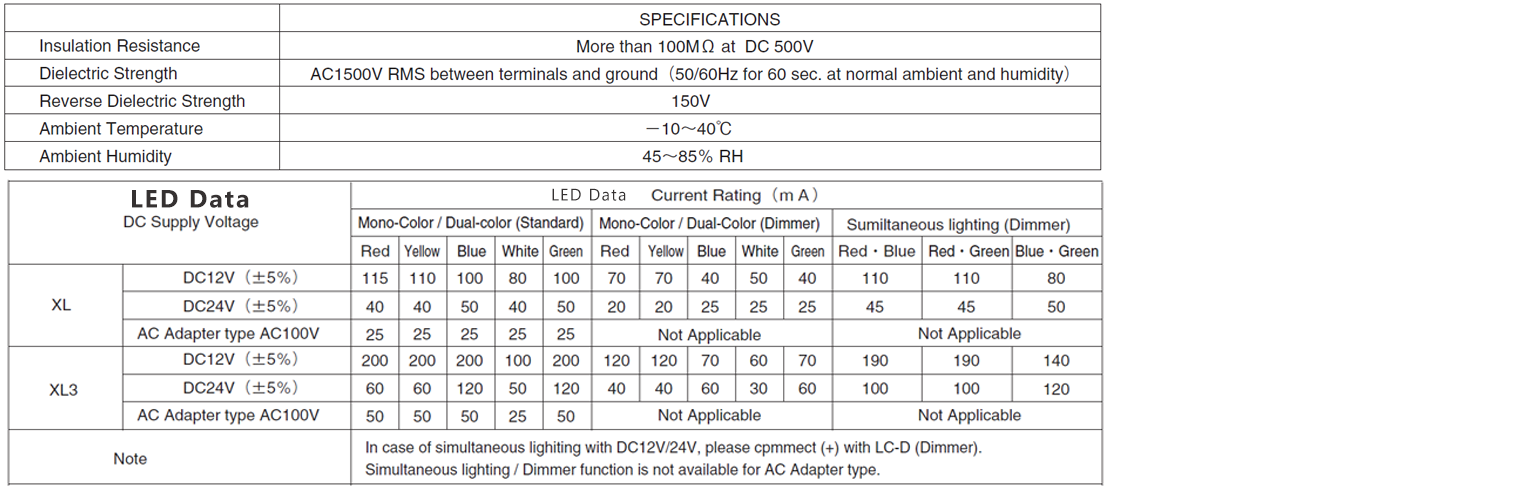

XL LED Series specifications
| Item | Specifications |
| Insulation resistance | More than 100MΩ at 500VDC |
| Dielectric strength | 1500V AC RMS between terminals and ground (50/60Hz for 60 sec. at normal ambient temperature and humidity |
| Reverse dielectric strength | 150V |
| Ambient temperature | -10°~40°C |
| Ambient humidity | 45~85%RH |
