25mm LED indicator, panel mount, metal indicator, RGB LED, RJS Electronics Ltd.

25mm metal LED indicator, domed or flat, LED indicator with a range LED options. Single, dual or RGB, IP67, IP68 rated. Panel mount, LED Indicator, RJS Electronics Ltd

RJS01-25I-150A~68H

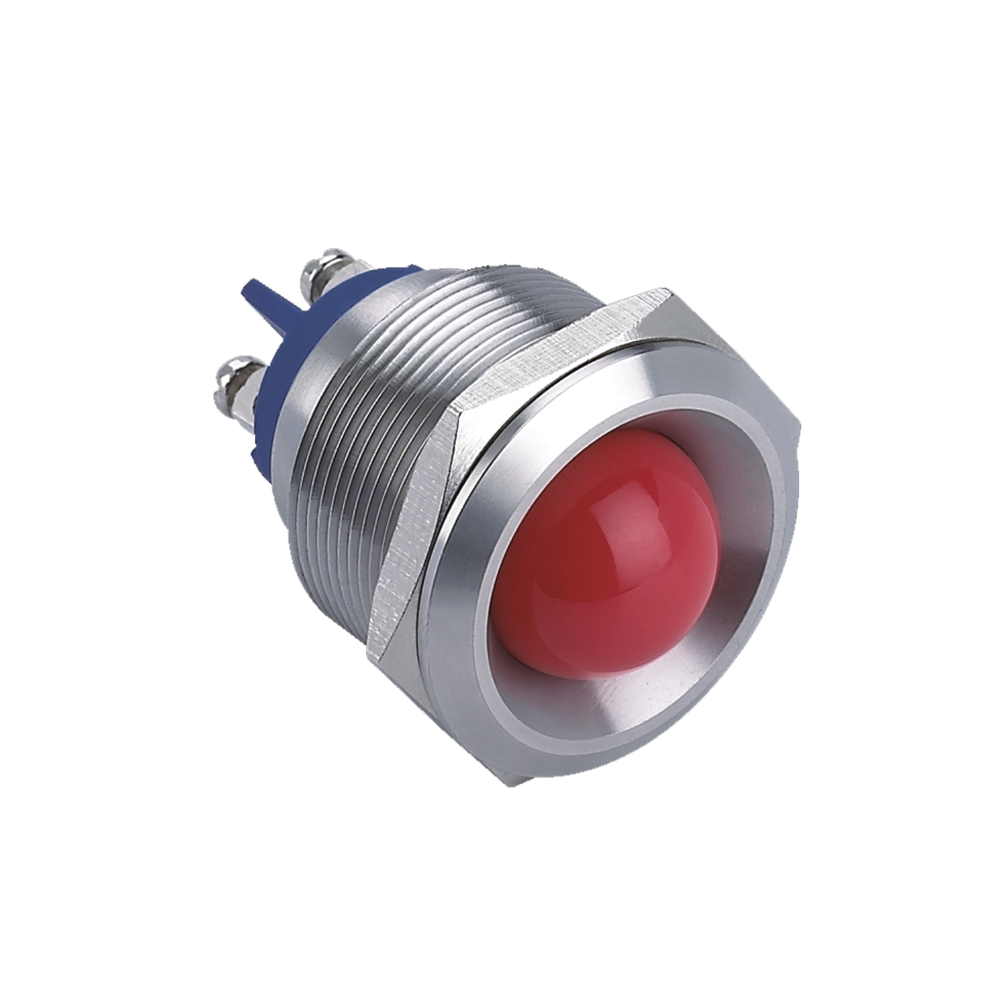

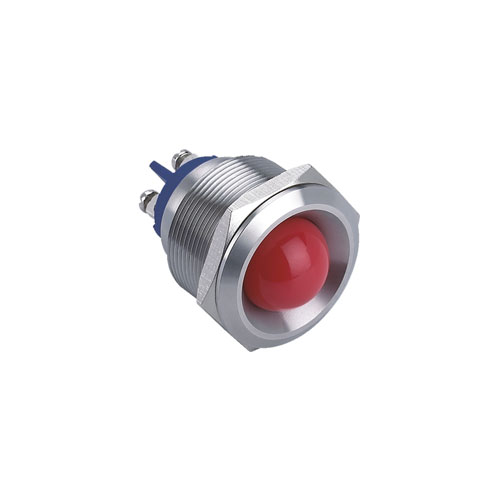

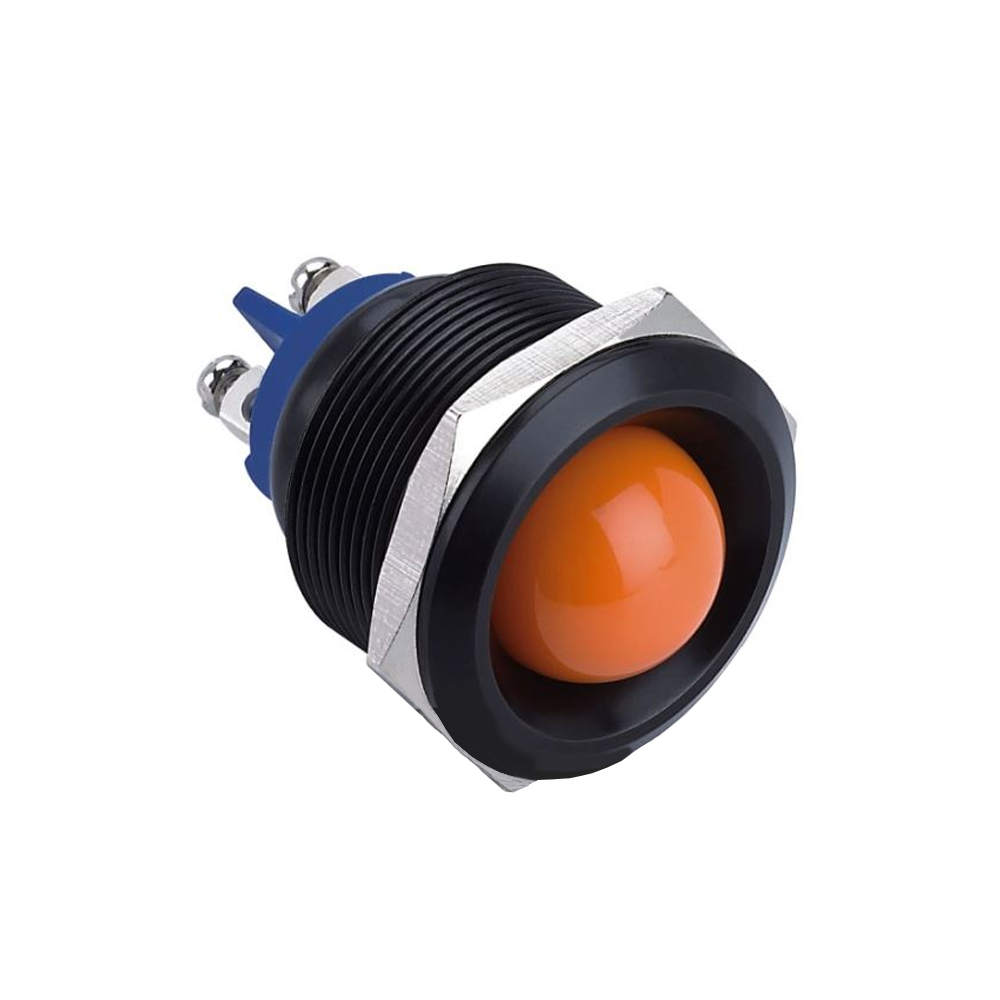

Ø 25mm metal LED indicator switch with LED illumination.

Key Features:

Ø 25mm Panel cut out
Full LED illumination
IP68 rated (from the front)

Applications

Automotive
Boatbuilding & Marine
Security
Door entry
Medical

Additional information

Function	LED Indicator
Product Series	RJS01-25I
Illumination	Full Illumination
Cap / Actuator Shape	Domed, Round
IP Rating	IP67 (front), IP68 (front)
Terminal Options	Screw Terminals
Panel Cut-Out Diameter	Ø 25mm
Single LED options	Blue, Green, Orange (Amber), Red, White, Yellow
