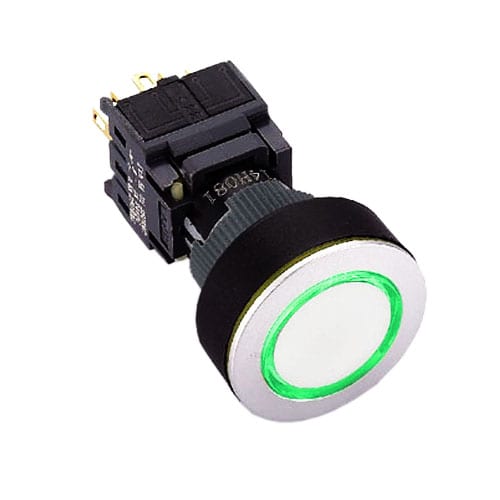

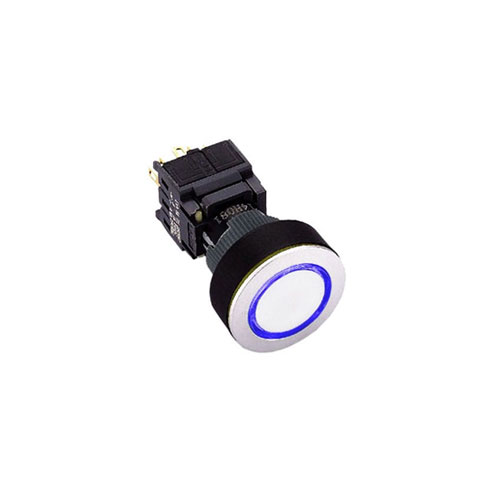

This 16/22mm round push button switch features a plastic actuator with ring LED illumination. It has a momentary/latching function and is IP65 rated (from the front).
Key Features:
| Product Series | |
|---|---|
| Function | Plastic Push Button Switch, Momentary Switch, Latching Switch |
| Cap / Actuator Shape | |
| Illumination | |
| Orientation | |
| Terminal Options | |
| Configuration | |

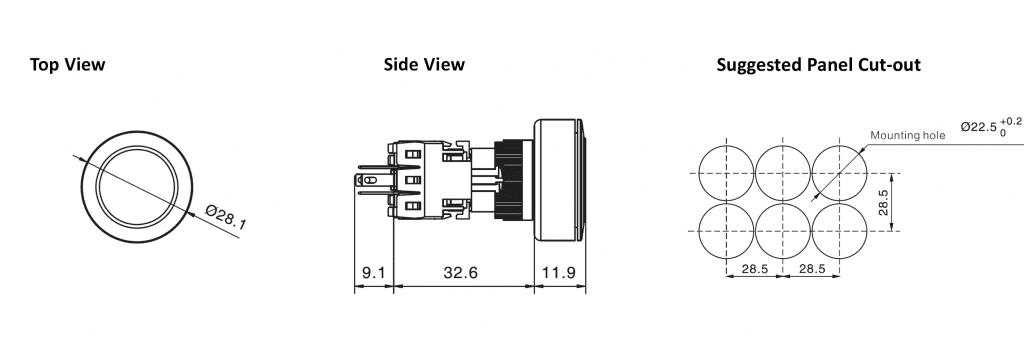

| Panel Cut-Out Diameter | |
| Single LED options | |
| IP Rating |
|
Operating Temperature |
-25°C to +60°C |
|
Operating Humidity |
45-85% RH |
|
Degree of Protection |
IP40, customisable IP65 >10G |
|
Maximum Voltage |
250V AC/DC |
|
Thermal Current |
5A |
|
Minimum Applicable Load |
5V AC/DC, 1mA |
|
Contact Material |
Silver alloy (gold plated) |
|
Terminal Style |
110 terminal type tab |
|
Contact Resistance |
50mΩ maximum |
|
Insulation Resistance |
100MΩ minimum (500V DC megger) |
|
Dielectric Strength |
1500 VAC 1 min |
|
Vibration Resistance |
10 to 55Hz, amplitude 1.2mm p-p |
|
Mechanical Life |
Maintained: 100,000 Momentary: 1,000,000 |
|
Electrical Life |
100,000 operations minimum |
