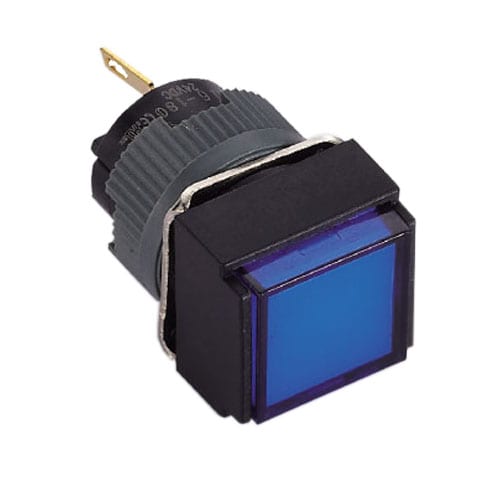

This 16mm Square LED Indicator has a square actuator, solder lug terminals and full LED illumination.
| Product Series | |
|---|---|
| Function | |
| Cap / Actuator Shape | |
| Illumination | |
| Orientation | |
| Terminal Options | |
| Configuration | |

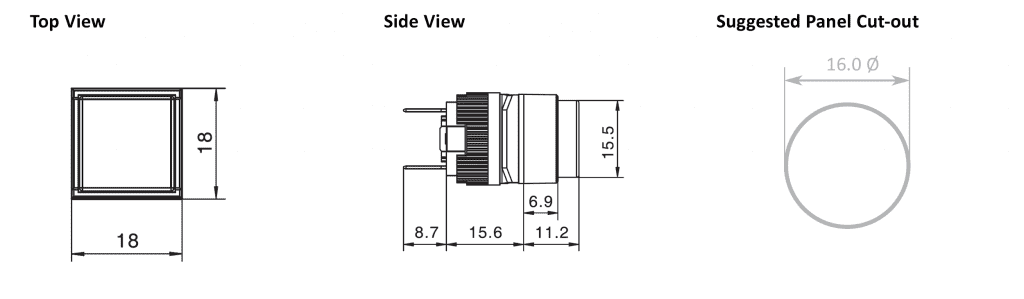

| Panel Cut-Out Diameter | |
| Single LED options | |
| IP Rating |
|
Operating Temperature |
-25°C to +60°C |
|
Operating Humidity |
45-85% RH |
|
Degree of Protection |
IP40, customisable IP65 >10g |
|
Maximum Voltage |
250V AC/DC |
|
Thermal Current |
5A |
|
Minimum Applicable Load |
5V AC/DC, 1mA |
|
Contact Material |
Gold-plated silver alloy |
|
Terminal Style |
.110” Solder/Quick Connect |
|
Contact Resistance |
50MΩ maximum |
|
Insulation Resistance |
100MΩ minimum (500V DC megger) |
|
Dielectric Strength |
1500VAC 1 min |
|
Vibration Resistance |
10 to 55Hz, amplitude 1.2mm p-p |
|
Electrical Life |
100,000 operations minimum (at full rated load) |
