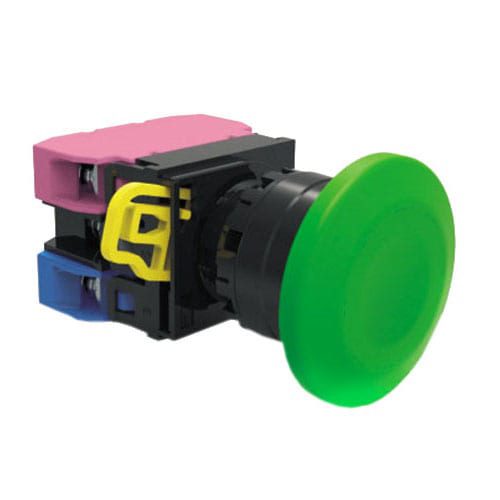

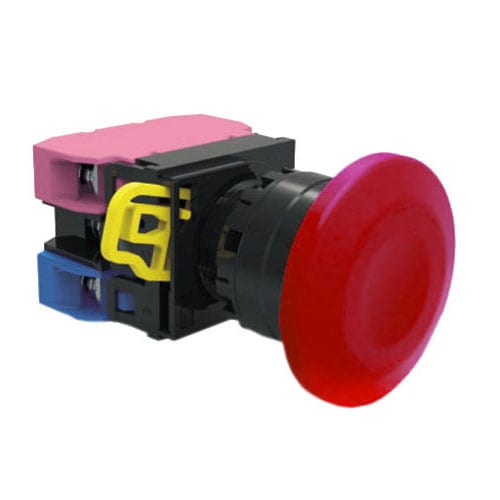

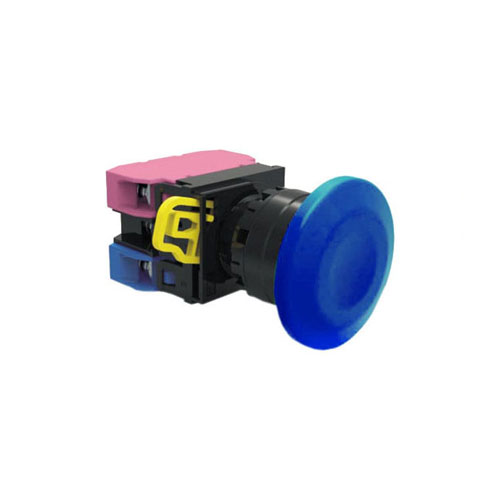

This Round Mushroom Push Button Switch features a 22mm panel cut-out and a plastic actuator. It is non-illuminated, has a momentary or latching function and an IP65 rating (from the front).
Key Features:
| Product Series | |
|---|---|
| Function | Plastic Push Button Switch, Momentary Switch, Latching Switch |
| Cap / Actuator Shape | |
| Illumination | |
| Orientation | |
| Terminal Options | |
| Configuration | |

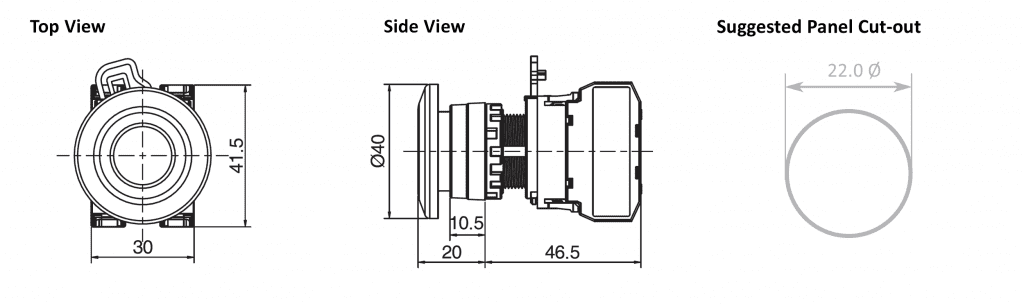

| Panel Cut-Out Diameter | |
| IP Rating |
|
Operating Temperature |
-20°C to +55°C |
|
Operating Humidity |
45-85% |
|
Store Temperature |
-45°C to +80°C |
|
Store Humidity |
95% RH |
|
Degree of Protection |
IP65 IP20 |
|
Insulation Resistance |
100MΩ |
|
Dielectric Strength |
2,500VAC 2,000VAC |
|
Vibration Resistance |
10-500Hz 0.35mm 50m/s2 5-55Hz 0.5mm 30Hz 1.5mm |
|
Shock Resistance |
150m/s2 1000m/s2 100m/s2 |
|
Mechanical Life |
100,000 / 250,000 / 1,000,000 / 5,000,000 |
|
Electrical Life |
50,000 / 100,000 |
