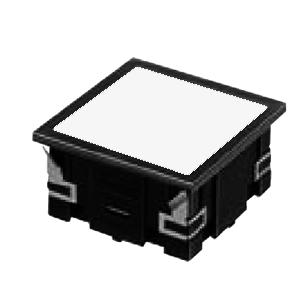

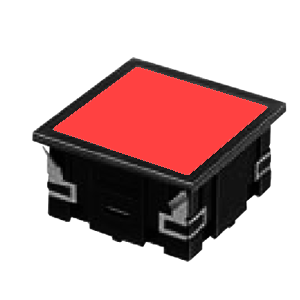

This LED Indicator features a square flat cap and full face, split face, 3-colour or negative LED illumination. It can be easily mounted in a matrix with other indicators.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Terminal Options | |
| Single LED options | |
| Bezel Shape | |
| Split Face LED Options | Red/Green/Yellow |
| 3 Colour LED Option | Red/Green/Yellow |
| Insulation Resistance | More than 100MΩ at 500V DC |
| Dielectric Strength | 1500V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambiet temperature and humidity) |
| Depth (mm) | |
| Product Series |
CL Series specifications
| Insulation resistance | More than 100MΩ at 500V DC |
| Dielectric strength | 1500V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambient temperature and humidity) |
| Reverse dielectric strength | 150V |
| Ambient temperature | -10°C~+40°C |
| Ambient humidity | 45~80% RH |
