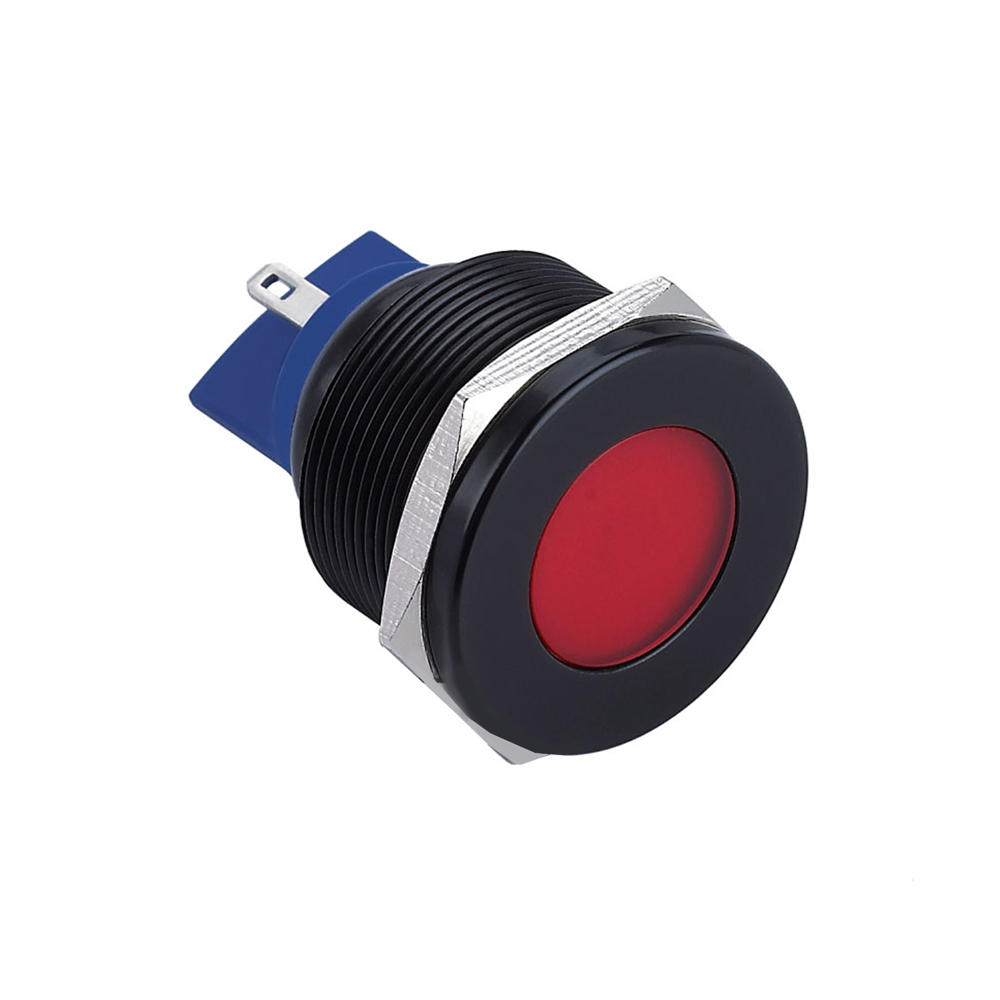

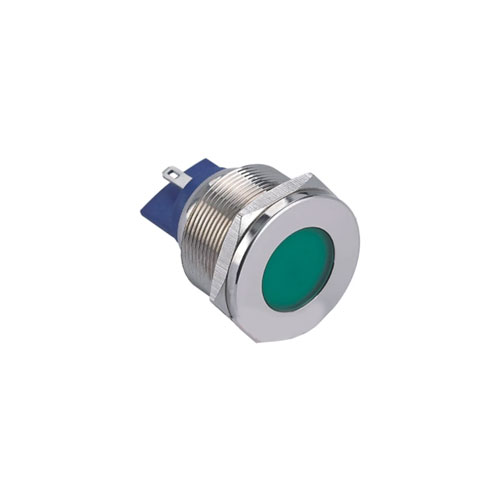

RJS01-25I-170P~67H 25mm LED indicator, panel mount, metal indicator, RGB LED illuminated indicators, RJS Electronics Ltd.

25mm metal LED indicator, domed or flat, LED indicator with a range LED options. Single, dual or RGB, IP67, IP68 rated. Panel mount, LED Indicator, RJS Electronics Ltd

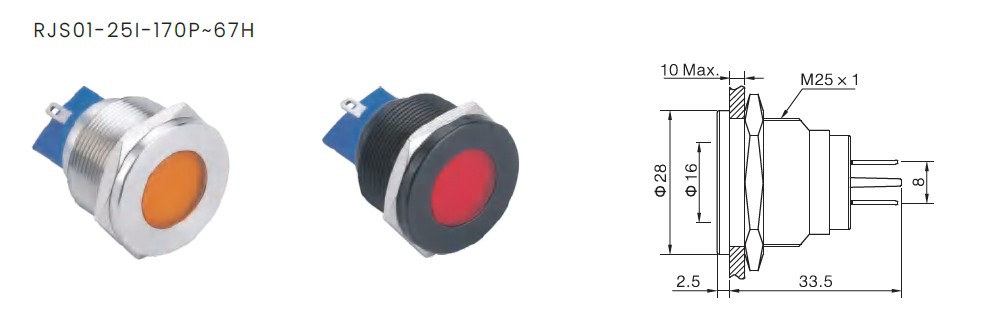

RJS01-25I-170P~67H

Key Features:

Ø 25mm panel cut out
LED illuminated
Flat head
IP67 rated (from the front)
PCB type

Key Features:

Ø 25mm panel cut out
LED illuminated
Flat head
IP67 rated (from the front)
PCB type

Additional information

Function	LED Indicator
Product Series	RJS01-25I
Illumination	Full Illumination
Cap / Actuator Shape	Flat, Round
IP Rating	IP67 (front)
Terminal Options	Solder Lug Terminals
Panel Cut-Out Diameter	Ø 25mm
Single LED options	Blue, Green, Orange (Amber), Red, White, Yellow
