3L Multi

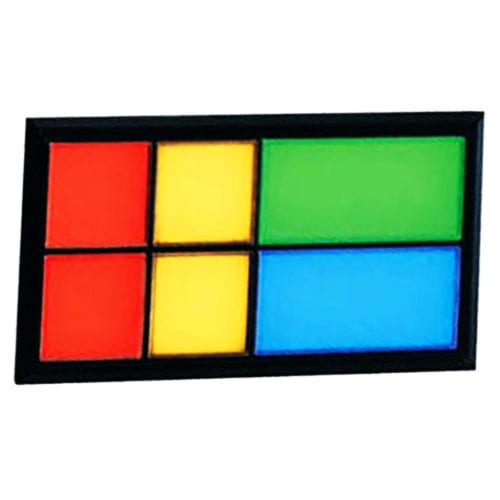

3L Multi LED Indicator

  • 30mm x 62mm x 28mm
  • Available with Matrix mounting & Matrix frame
  • LED Illuminated
  • Single/Bi-colour/Negative LED illumination options
  • Full face/ Split-face illumination display
  • Full 3L series

Application:

  • Home automation
  • Industrial Controls
  • Audio & Broadcasting
  • Automotive
Function

Illumination

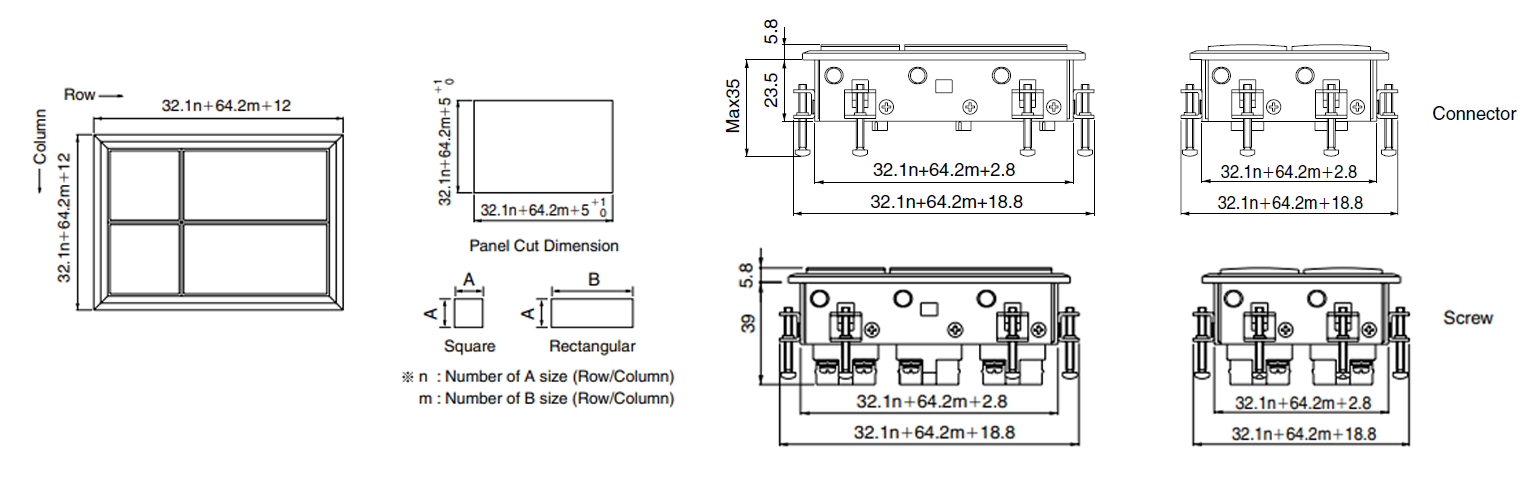

Terminal Options

,

Single LED options

, , , ,

Split Face LED Options

Red/Yellow, Green, Blue/Green, White

Multi-Colour LED Options

, ,

Supply Voltage

DC5V, 12V, 24V, 48V

Bezel Shape

Dielectric Strength

200V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambiet temperature and humidity)

Insulation Resistance

More than 100MΩ at 500V DC

Product Series

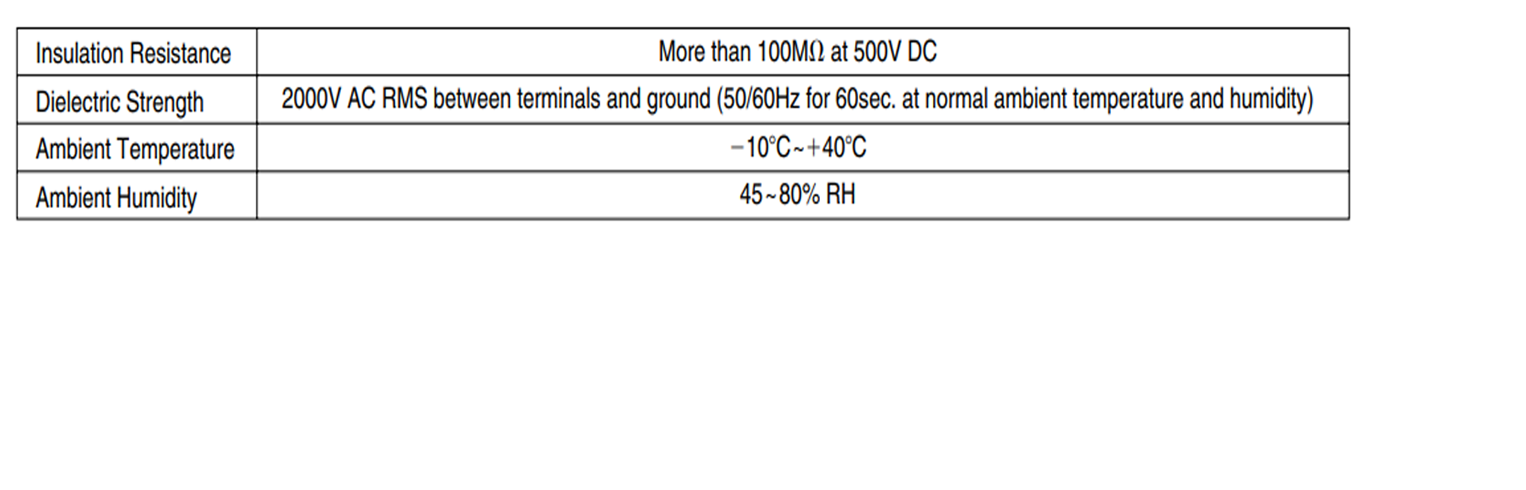

3L Series specifications

Insulation resistance More than 100MΩ at 500V DC
Dielectric strength 2000V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambient temperature and humidity)
Ambient temperature -10°C~+40°C
Ambient humidity 45~80% RH

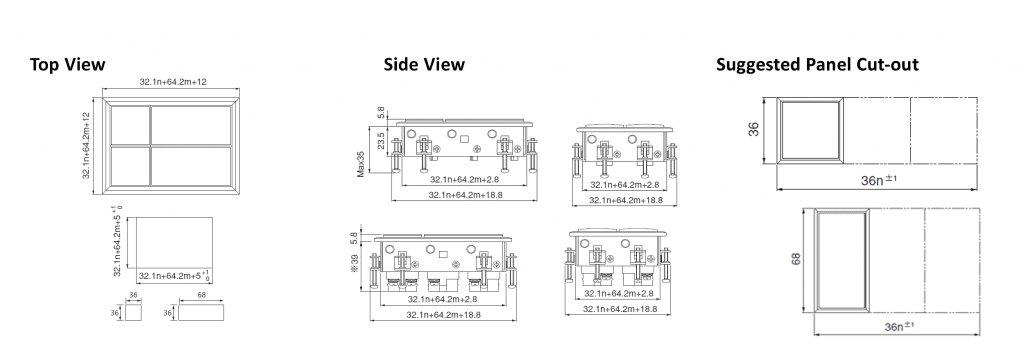

Drawing for 3L led push button switch, rjs electronics ltd
