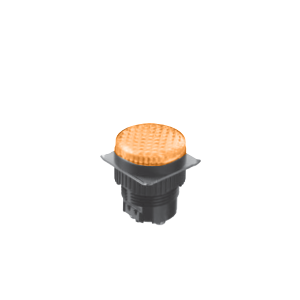

MLC – Flat Round Type

Round flat, MLC LED Indicator Panel

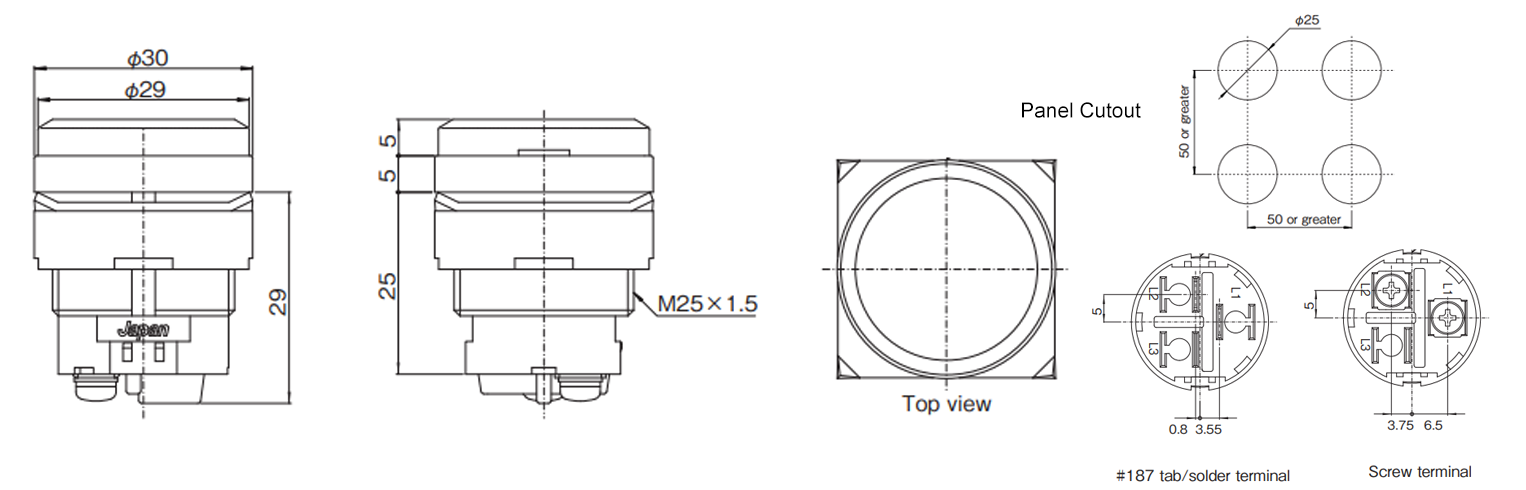

ø 30mm
IP65 Rated
LED Illuminated
Ultra-bright LED type with diamond-cut cover
Single/Dual Colour LED illumination options
Full MLC series

Application:

Home automation
Industrial Controls
Audio & Broadcasting
Automotive

Function	LED Indicator
Bezel Shape	Round
Cap / Actuator Shape	Round
IP Rating	IP65 (front)
Illumination	Full Illumination
Single LED options	Green, Red, Yellow
Multi-Colour LED Options	(RG) Red/Green
Product Series	MLC – LED Indicator Panels
Insulation Resistance	100M Ω or greater with DC 500V megger
Dielectric Strength	Between terminals and ground: AC 1500VRMS, 50/60Hz for 60 sec. at normal temp. and humidity.

MLC Series specifications

Insulation resistance	100MΩ or greater with a DC 500V megger
Dielectric strength	1500V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambient temperature and humidity)
Reverse dielectric strength	150V
Ambient temperature	-10°C~+50°C
Ambient humidity	80% RH or less
