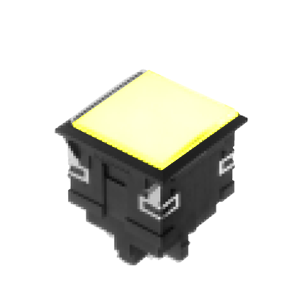

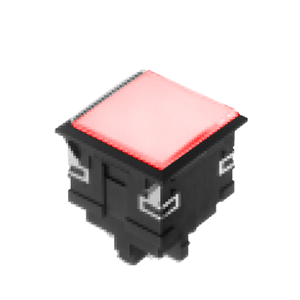

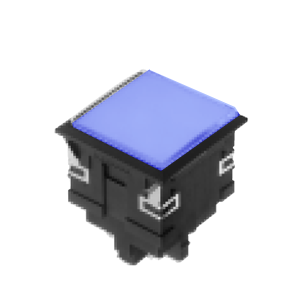

3L Square – Screw Type

This LED Indicator features a 30mm square cap and screw-type mounting. It can support single, bi-colour or negative LED illumination in a full-face or split-face style.

Key Features:

  • 30mm square
  • 28mm depth behind panel
  • Single/bi-colour/negative LED illumination
  • Full face or split-face illumination display
  • Screw type mounting
  • Full 3L series
Bezel Shape

Function

Illumination

Depth (mm)

Single LED options

, , , ,

Split Face LED Options

Red/Yellow, Green, Blue/Green, White

Multi-Colour LED Options

, ,

Supply Voltage

DC5V, 12V, 24V, 48V

Insulation Resistance

More than 100MΩ at 500V DC

Dielectric Strength

200V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambiet temperature and humidity)

Terminal Options

,

Product Series

3L Series specifications

Insulation resistance More than 100MΩ at 500V DC
Dielectric strength 2000V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambient temperature and humidity)
Ambient temperature -10°C~+40°C
Ambient humidity 45~80% RH
