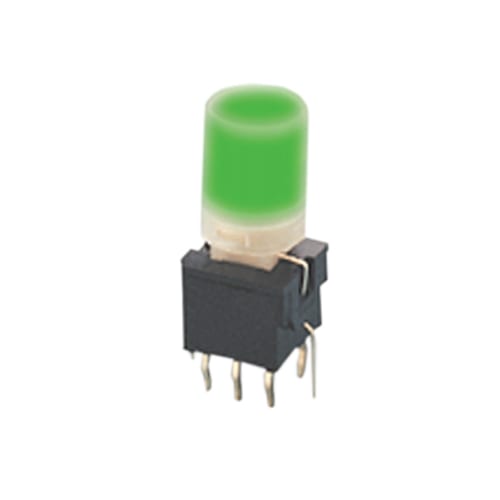

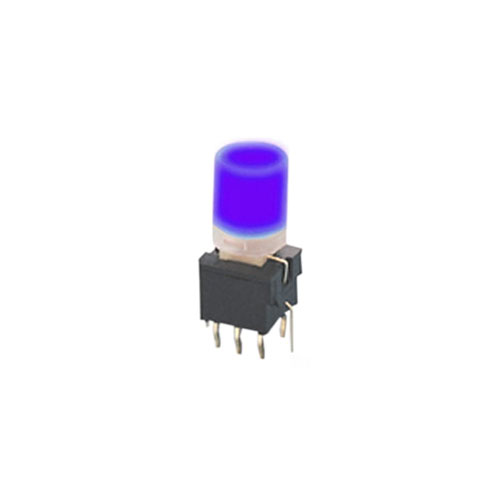

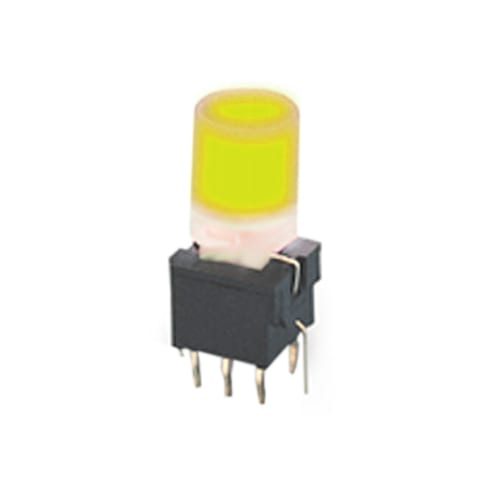

Introducing our LED Illuminated Push Button Switch! Equipped with a latching function, it provides convenient on/off control. Choose between single or bi-colour LED illumination options.

Choose the PB61303B for the momentary version.

Key Features:

  • Switch height – 18.5mm
  • PCB mounting – THT
  • Switch circuit – DPDT (8 pin)
  • Latching function
  • Illuminated & non-illuminated options
  • Round button shape
Product Series



Single LED options

, , , , , , , , ,

Cap Dimensions (mm)

Cap / Actuator Shape

Terminal Options




# NC Contacts


# NO Contacts

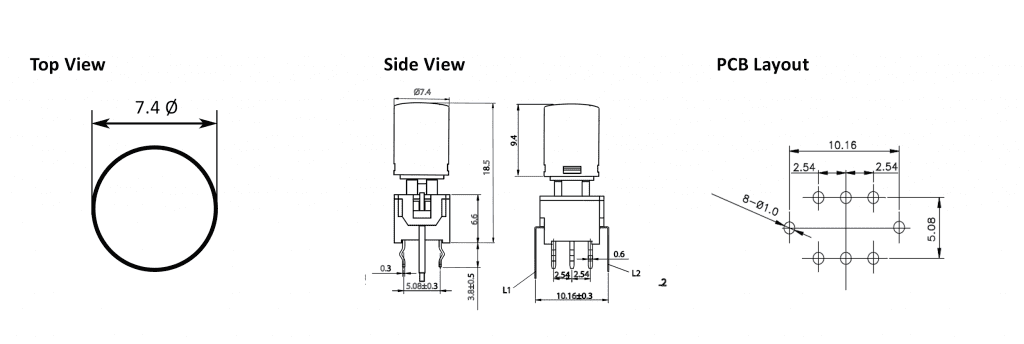

371. PB61303A Drawing - PCB, push button switch, switch with LED Illumination, latching and momentary push button function, IP RATING, single or bi-colour LED illumination. RJS Electronics Ltd.


PB613 Series Specification


Rating 0.1A 30VDC
Insulation Resistance 100MΩ Min (at 500VDC)
Dielectric Strength AC 500V (50/60 Hz for 1 minute)
Contact Resistance 50mΩ Max. (Initial)
Electrical Life 10,000 Cycles Min
Ambient Temperature -10°c~ +80°c
Operating Force 150 + 100gf (Momentary)
250 + 100gf (Alternate)
200 + 100gf (Momentary with click)
