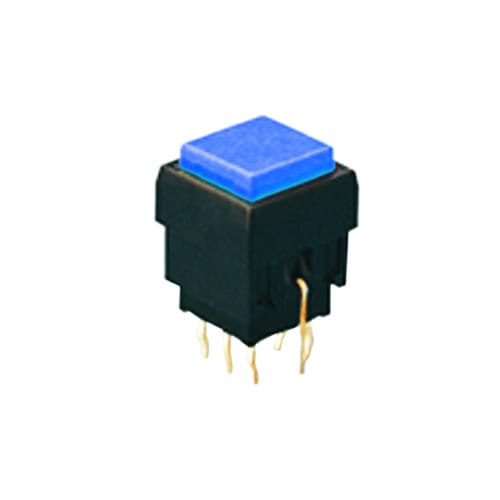

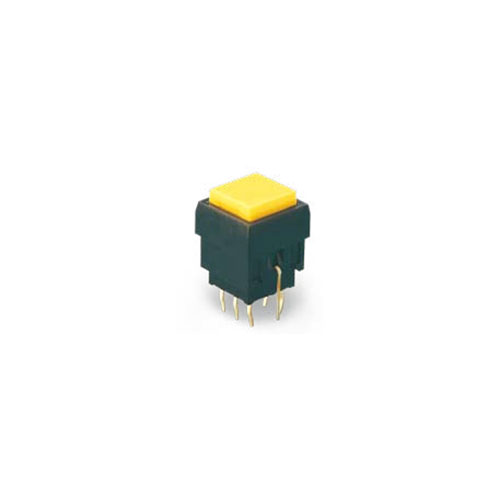

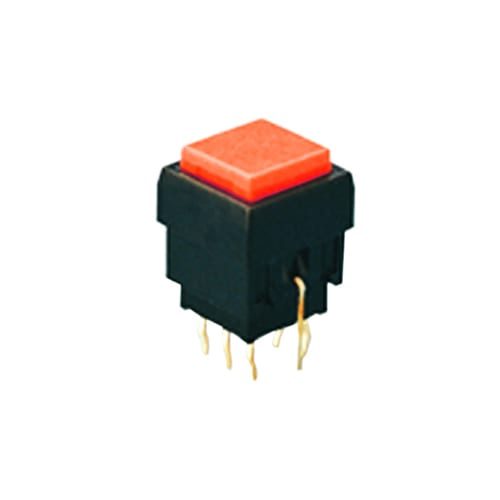

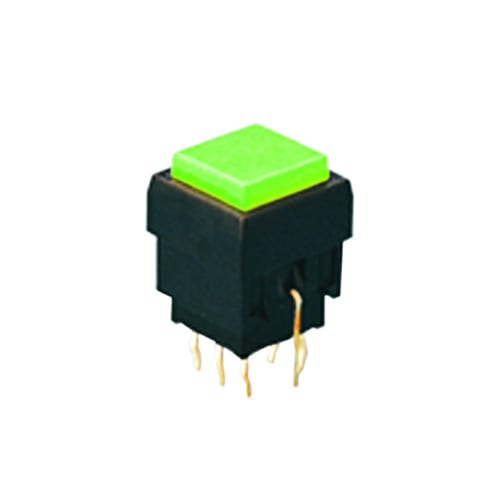

LED Illuminated Push Button Switch – this versatile switch features momentary, latching or momentary with click options. It is also equipped with single or bi-colour LED illumination.

Key Features:

  • LED Illuminated Push Button Switch
  • Momentary / latching function / Momentary with click
  • Single / bi-colour LED illumination
  • Rating: 0.1A 30VDC
  • Various cap legends available



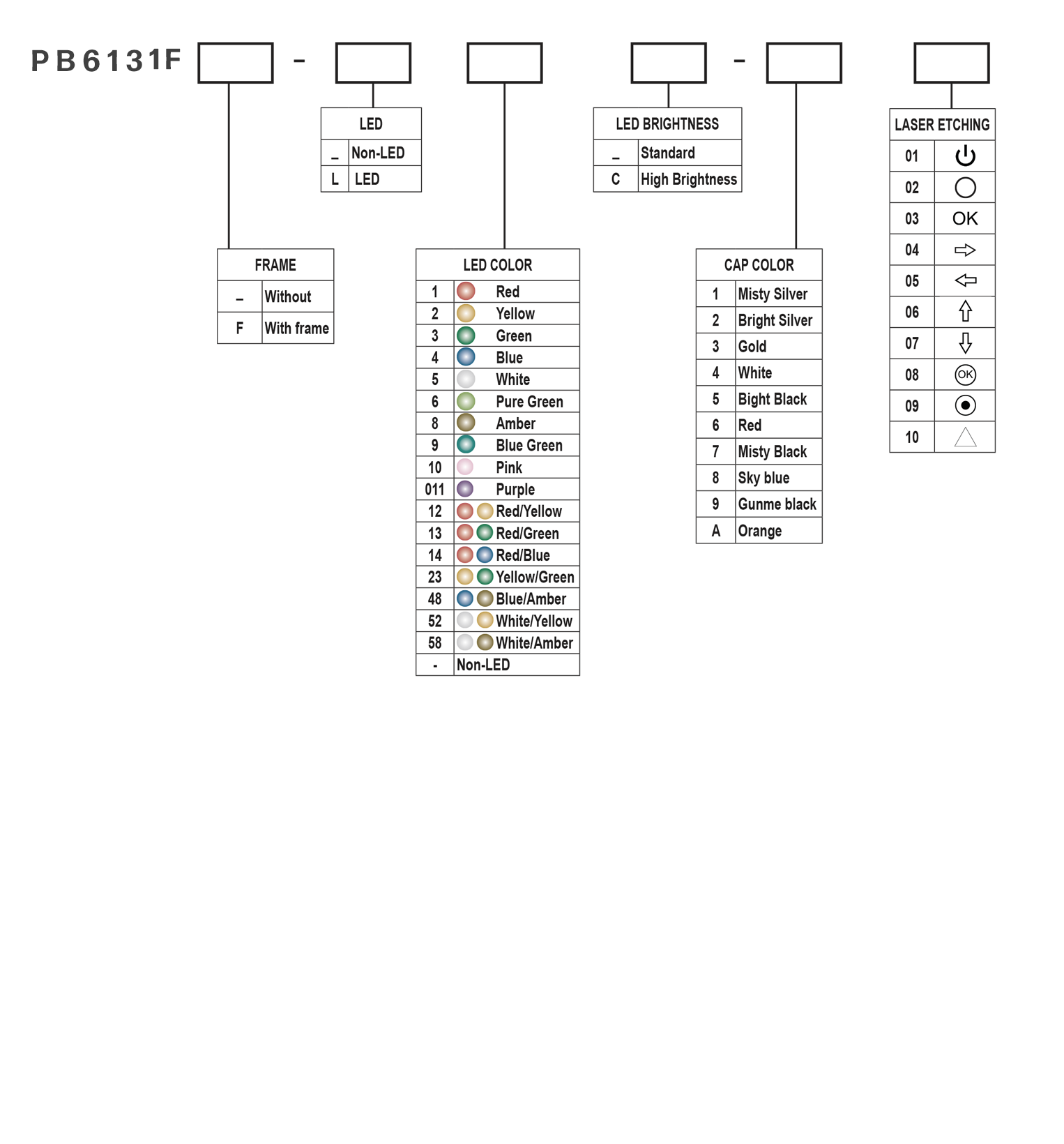

Product Series

Configuration

Illumination

Single LED options

, , , , , , , , ,

Cap Dimensions (mm)

Cap / Actuator Shape

,

Terminal Options

Orientation

# NC Contacts

,

# NO Contacts

,

Function



PB613 Series Specification



Rating 0.1A 30VDC
Insulation Resistance 100MΩ Min (at 500VDC)
Dielectric Strength AC 500V (50/60 Hz for 1 minute)
Contact Resistance 50mΩ Max. (Initial)
Electrical Life 10,000 Cycles Min
Ambient Temperature -10°c~ +80°c
Operating Force 150 + 100gf (Momentary)
250 + 100gf (Alternate)
200 + 100gf (Momentary with click)

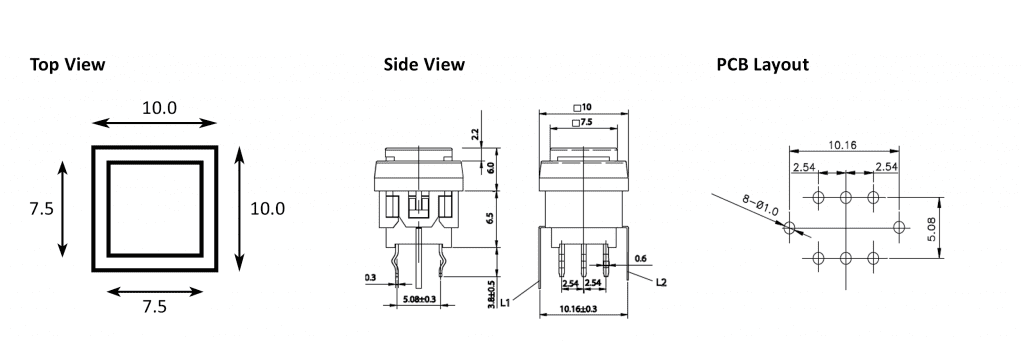

LED illuminated pcb push button switch drawing, rjs electronics ltd
