Slide Switches

What are slide switches? Essentially, Slide switches are used to manage a level of current by sliding one way or the opposite direction to either turn ‘on’ or ‘off’ or a function. Commonly the slider switch is used to turn an electrical device ‘on’ or ‘off’, by making or breaking the circuit, the circuit can be interrupted by moving the switch.

Key Features

  • Vertical and right-angle slide switches
  • Single pole and double pole options
  • Sealed IP rated slide switches available
  • Miniature and Sub-miniature versions

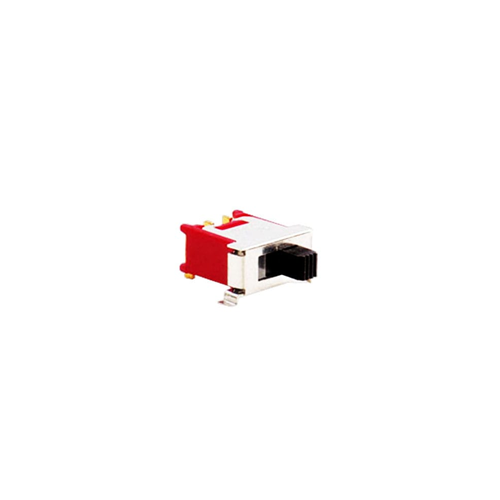

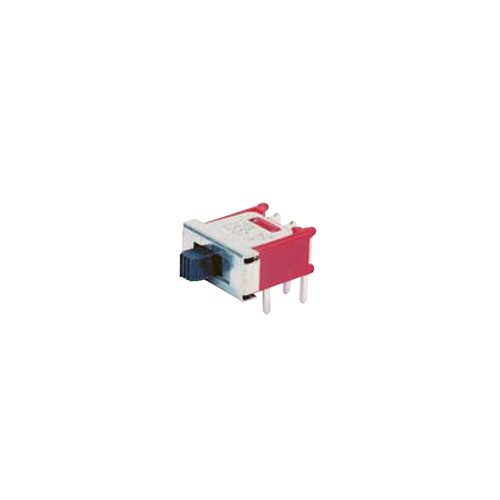

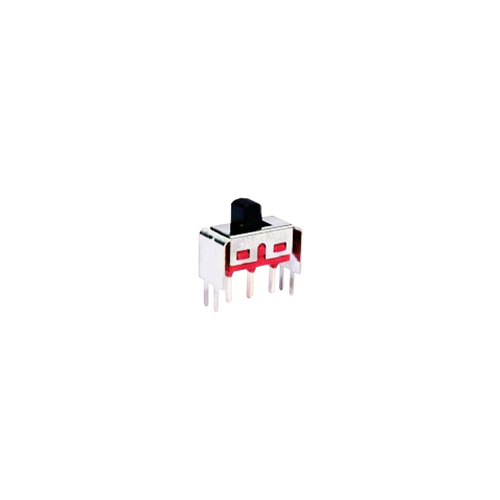

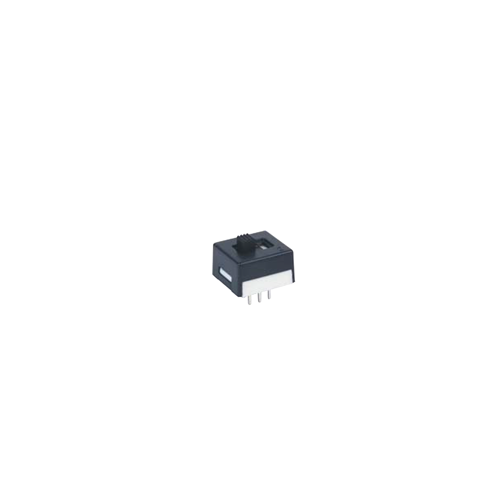

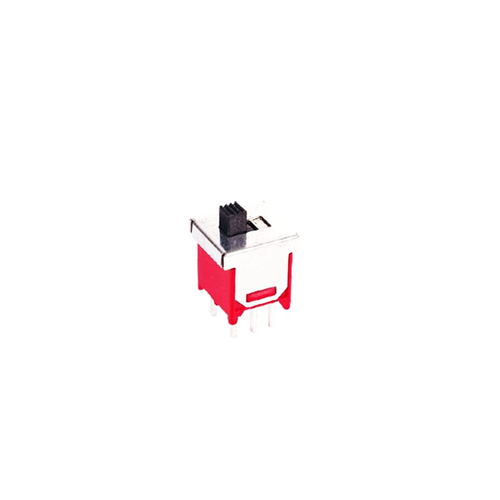

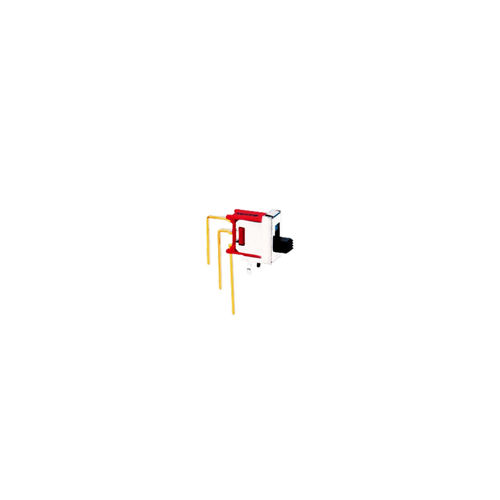

slide switches, smd type, vertical type, pcb mount, rjs electronics ltd

PCB slide switches?
Our slide switches are PCB mounted. A PCB switch is a switch that is directly mounted onto a PCB (Printed Circuit Board). Surface mount PCB switches (SMD/SMT) are designed to sit flat, directly on top of a PCB. Through-hole or ‘thru-hole’ PCB switches are inserted into a drilled hole on the printed circuit boards and soldered to pads on the opposite side.

We operate Monday – Thursday 8 am – 5 pm and Fridays 8 am – 4.30 pm, call us on +44 (0)1234 213600 to speak to our Sales Engineers or e-mail us on [email protected] alternatively, leave us a message using our online contact form.

How to order?

Download our latest brochure and Product Catalogue. Join our mailing list to get the latest news, read our blog posts and see our latest products.
