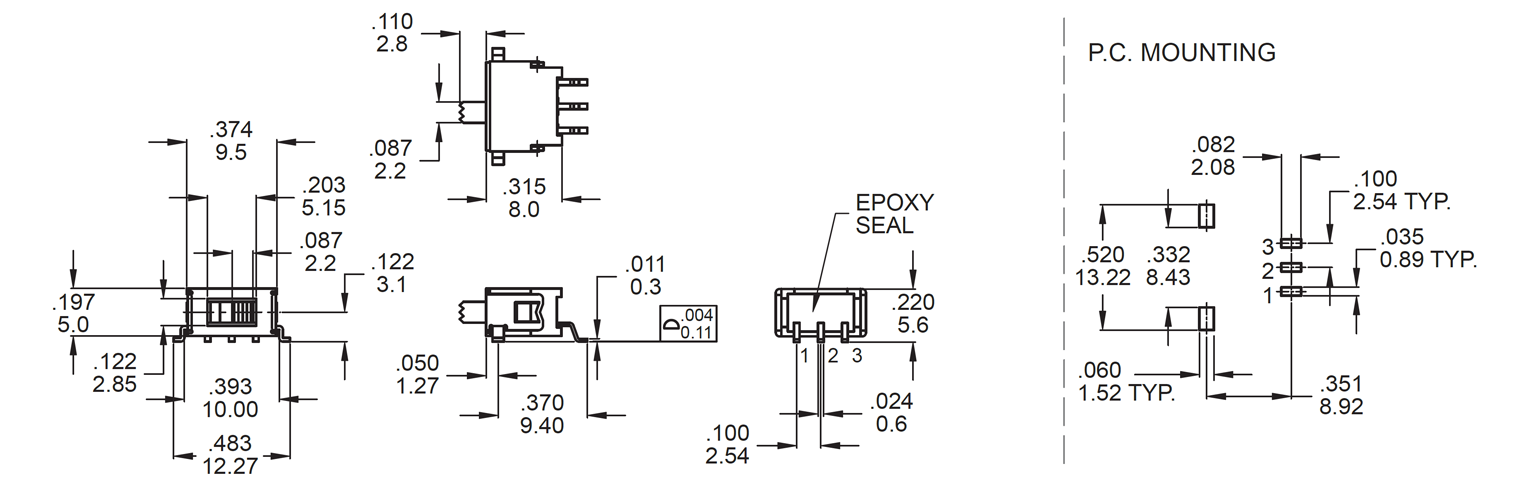

5SE-MZ-SPDT

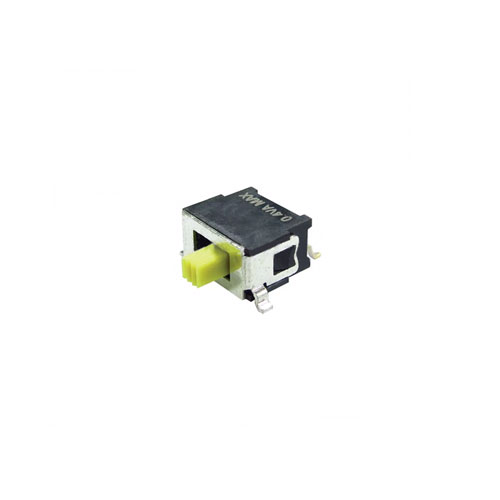

This PCB mount Sub-miniature Slide Switch features an SPDT configuration and an IP67 rating. It is a surface mount switch and available with 2 or 3 positions.

Key Features:

  • Sub-miniature slide switch
  • SPDT
  • Surface mount
  • 2 or 3 position
  • IP67 (from the front)
  • Contact rating up to 0.4VA
  • Full 5SE Slide Switch Series
Function

IP Rating

Mechanical Operations

Product Series

Configuration

Contact rating Max 0.4 VA max @ 48 VAC or DC
Mechanical life minimum 40,000 operations
Contact resistance 50 mΩ max.
Insulation resistance 500 MΩ at 250 VDC.
Dielectric strength 500V, 50 Hz for the duration of 1 minute
Operating temperature -20°C to 80°C.
Degree of protection IP67
