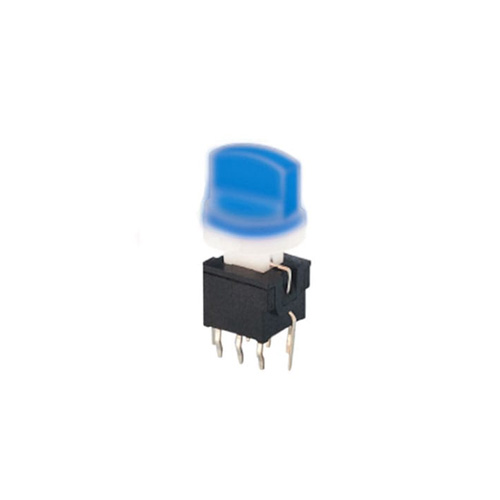

PCB push button switch with latching function, choose from single or bi-colour LED illumination.

Choose the PB61301B for the momentary version.

Key Features:

  • Switch height – 18.4mm
  • PCB mounting – THT
  • Switch circuit – DPDT (8 pin)
  • Latching function
  • Illuminated & non-illuminated options
Product Series

Switch Circuit



PB613 Series Specification


Rating 0.1A 30VDC
Insulation Resistance 100MΩ Min (at 500VDC)
Dielectric Strength AC 500V (50/60 Hz for 1 minute)
Contact Resistance 50mΩ Max. (Initial)
Electrical Life 10,000 Cycles Min
Ambient Temperature -10°c~ +80°c
Operating Force 150 + 100gf (Momentary)
250 + 100gf (Alternate)
200 + 100gf (Momentary with click)

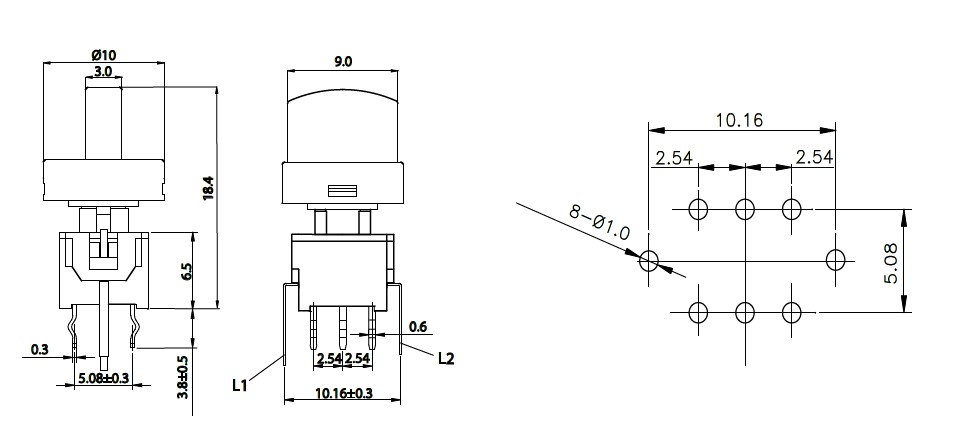

Drawing for PB61301 pcb led push button switch, rjs electronics ltd
