PB61301B plastic momentary push button switch, led switches, rjs electronics ltd

pb61301 - blue, PCB switches, Push button switch, Switch with LED illumination, single LED illumination, bi-colour LED illumination, RGB Illumination, momentary function or latching function, IP Rated, RJS Electronics Ltd.

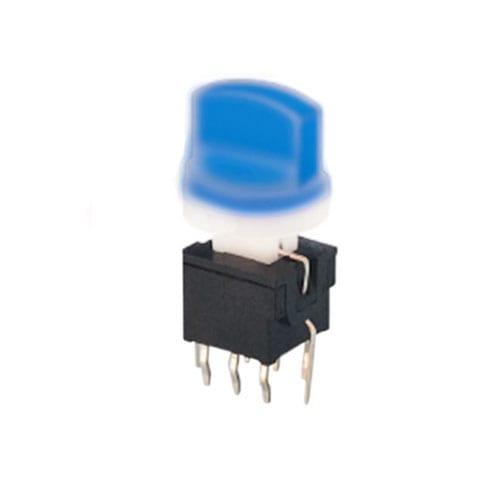

PB61301B - Image 3

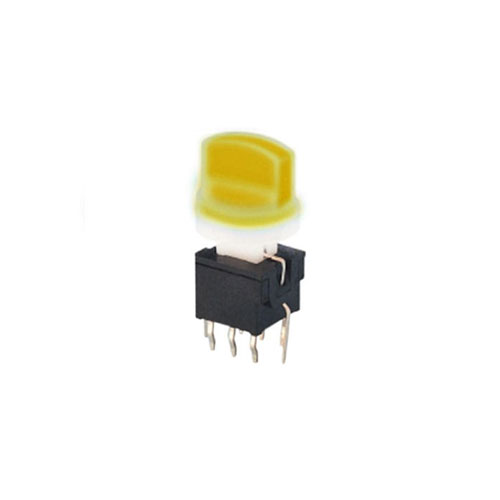

PB61301B - Image 4

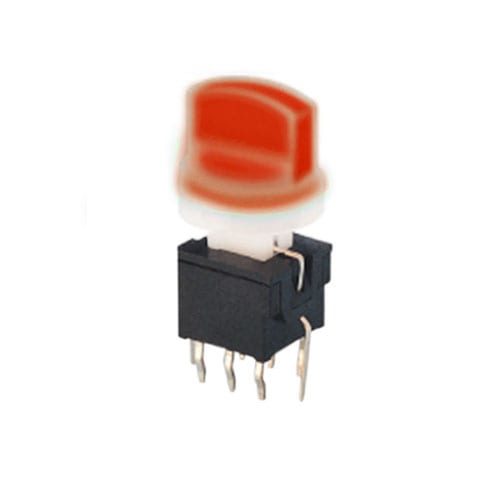

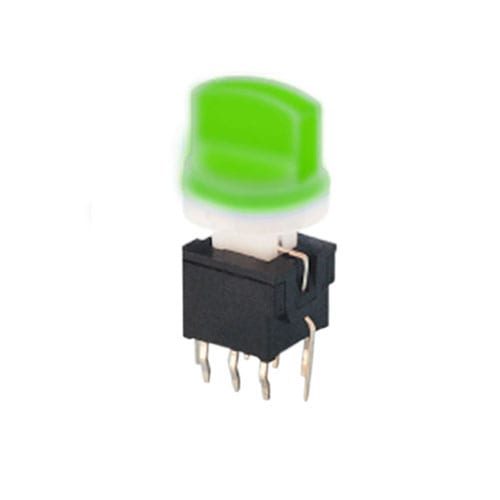

PB61301B

PCB push button switch with momentary function, choose from single or bi-colour LED illumination.

Choose the PB61301A for the latching version.

Key Features:

Switch height – 18.4mm
PCB mounting – THT
Switch circuit – DPDT (8 pin)
Momentary function
Illuminated & non-illuminated options

Additional information
Specifications

Product Series	TP613 / PB613
Switch Action	change over, push to break, push to make
Switch Circuit	DPDT (8 pin)
Function	Momentary Switch

PB613 Series Specification
Rating	0.1A 30VDC
Insulation Resistance	100MΩ Min (at 500VDC)
Dielectric Strength	AC 500V (50/60 Hz for 1 minute)
Contact Resistance	50mΩ Max. (Initial)
Electrical Life	10,000 Cycles Min
Ambient Temperature	-10°c~ +80°c
Operating Force	150 + 100gf (Momentary)
	250 + 100gf (Alternate)
	200 + 100gf (Momentary with click)
