19mm metal push button switch, non-illuminated, antivandal switch, panel mount, RJS Electronics Ltd

RJS1N1LP-19M-F~67J

19mm Antivandal Switch with No LED Illumination

Key Features:

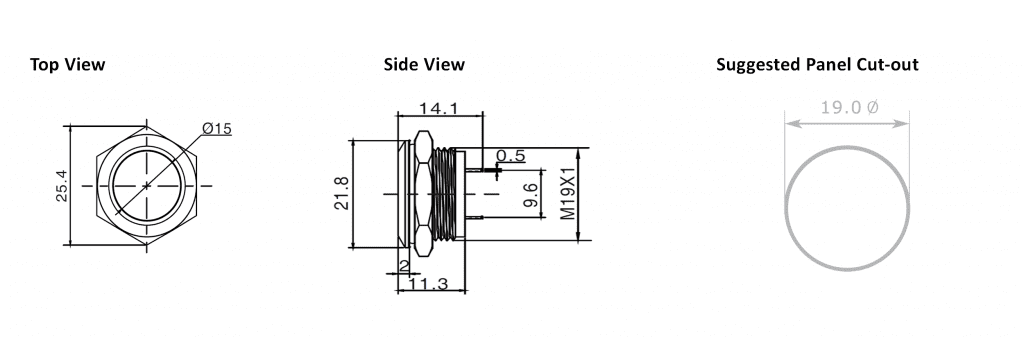

Ø 19mm Panel cut out
Momentary
Non-illuminated
IP67 (from the front)
SPST
Low profile with Micro travel

Applications:

Automotive
Boat building & Marine
Security
Door entry
Medical

Additional information

Product Series	RJS1N1LP-19M, RJS1N1LP
IP Rating	IP67 (front)
Configuration	1NO (SPST) [push to make]
Mechanical Operations	1,000,000
Cap / Actuator Shape	Flat, Round
Bezel Shape	Chamfered, Round
Illumination	non-illuminated
Single LED options	Without LED
Function	Push Button Switch, Momentary Switch
Panel Cut-Out Diameter	Ø 19mm
Switch Action	push to make
# NO Contacts	1
