| Function | |
|---|---|
| Contact Resistance: | 50mΩmax. initial |
| Insulation Resistance: | 1,000 mΩ min. |
| Mechanical Operations | |
| Dielectric Strength: | 1,000 Vrms min. @sea level. |
| Illumination | |
| Product Series |
Miniature Slide Switch
- 6M Slide Switch
- Miniature slide switch
- DPDT
- Contact Rating up to 3A
- Full 6M Slide Switch Series
Applications
- Audio & Broadcast
- Boatbuilding & Marine
- Home Automation
- Medical Equipment
- Industrial Controls

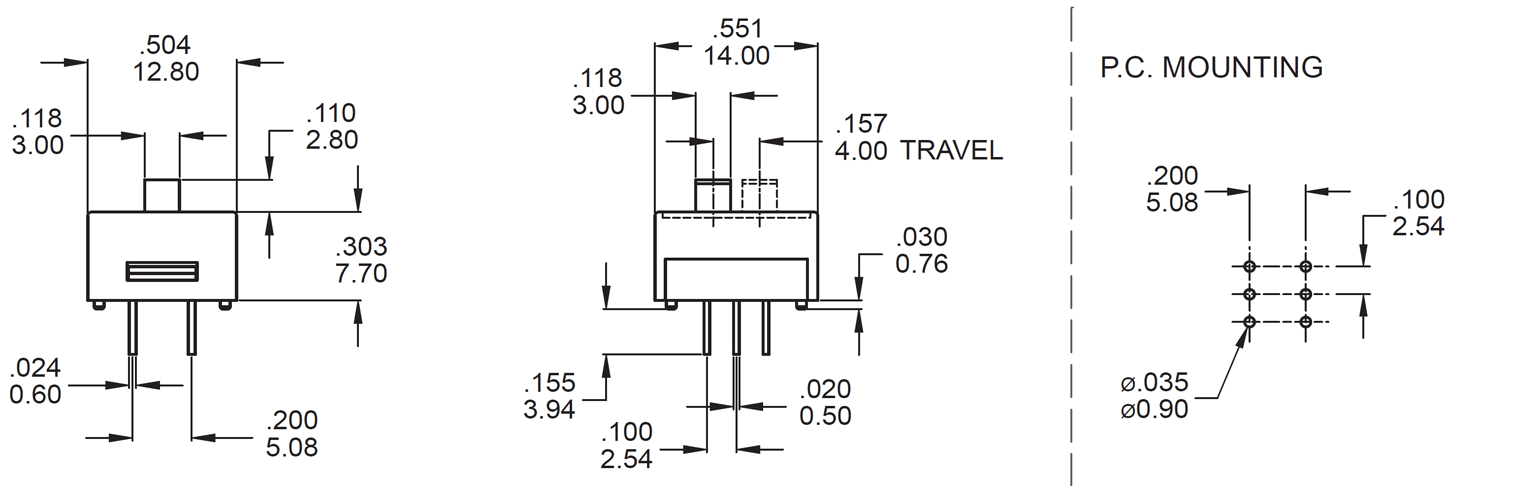

Drawing

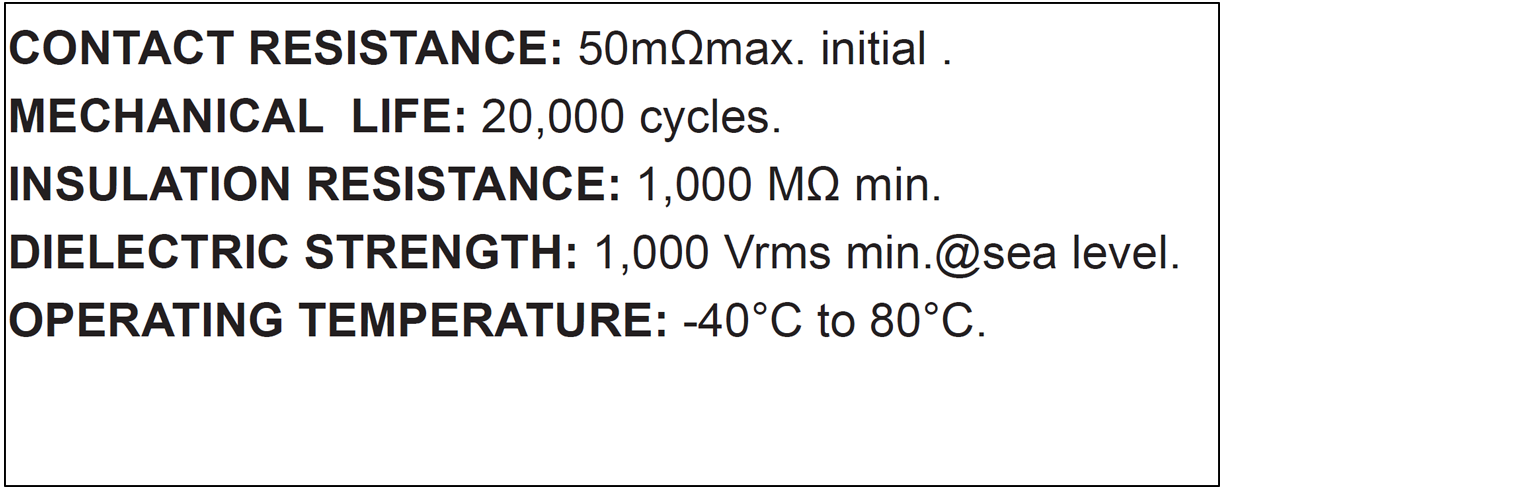

Mechanical & Electrical Specs

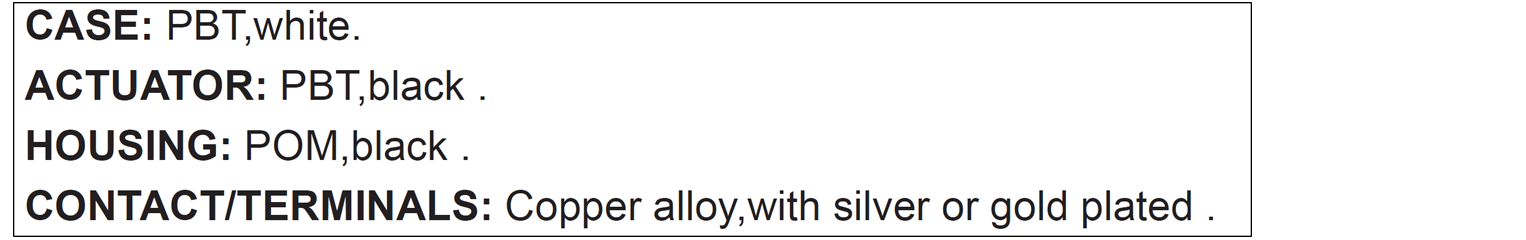

Materials

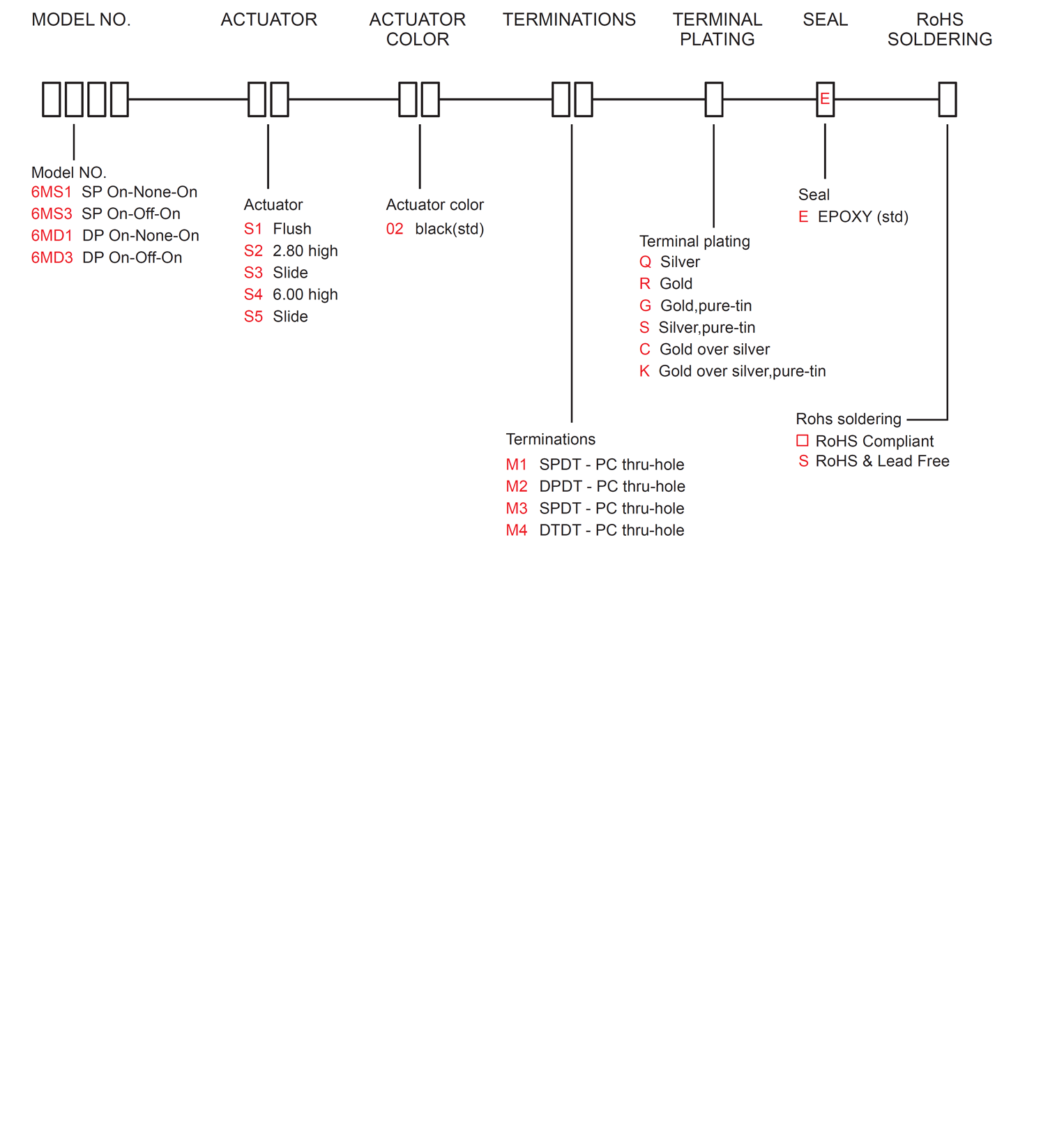

How to order
