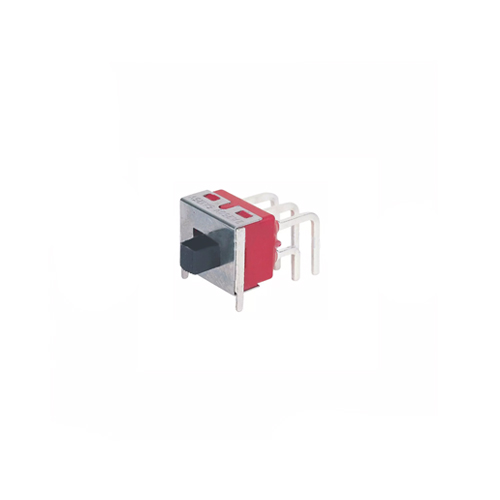

Slide Switch: 5M-M6-DPDT

Slide Switch

Features:

  • M6 Slide Switch
  • Vertical
  • DPDT
  • Contact Rating up to 5A
  • Full 5m Series

Applications:

  • Audio & Broadcast
  • Boatbuilding & Marine
  • Home Automation
  • Medical Equipment
  • Industrial Controls





Function

Mechanical Operations

Illumination

Configuration

Product Series

Mechanical life 30,000 make-and-break cycles
Contact resistance 10mΩ max. initial @ 2-4VDC

100mA for both silver and gold plated contacts

Insulation resistance 1000MΩ min
Dielectric strength 1000 Vms min. @sea level
Operating temperature -30°C to 85°C

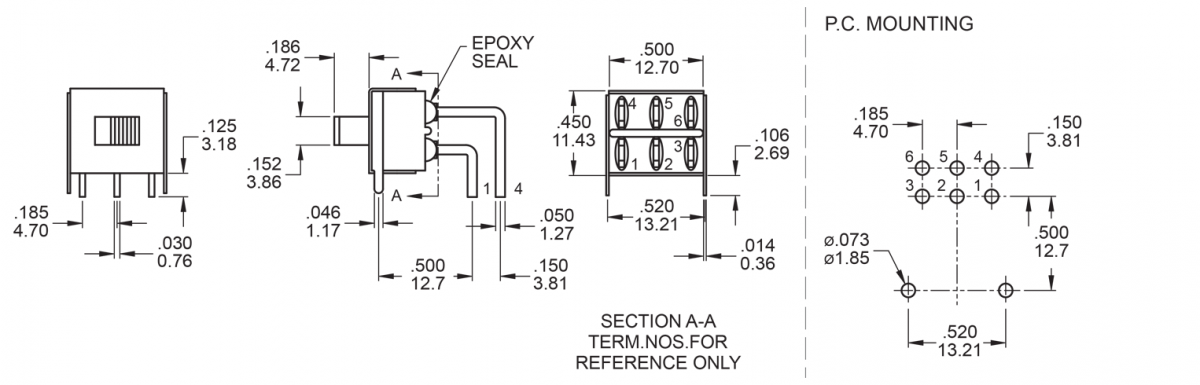

M6 DPDT drawing, Slide Switch, RJS Electronics Ltd.
