SLIDE SWITCH: 5M-DPDT

Slide Switch

Features:

Applications:

  • Audio & Broadcast
  • Boatbuilding & Marine
  • Home Automation
  • Medical Equipment
  • Industrial Controls





Function

Illumination

Mechanical Operations

Configuration

Product Series

Contact rating
Mechanical life 30,000 make-and-break cycles
Contact resistance 10mΩ max initial. @2-4VDC

100mA for both silver and gold plated contacts

Insulation resistance 1,000 MΩ min
Dielectric strength 1,000 vms min @sea level
Operating temperature -30°C to 85°C

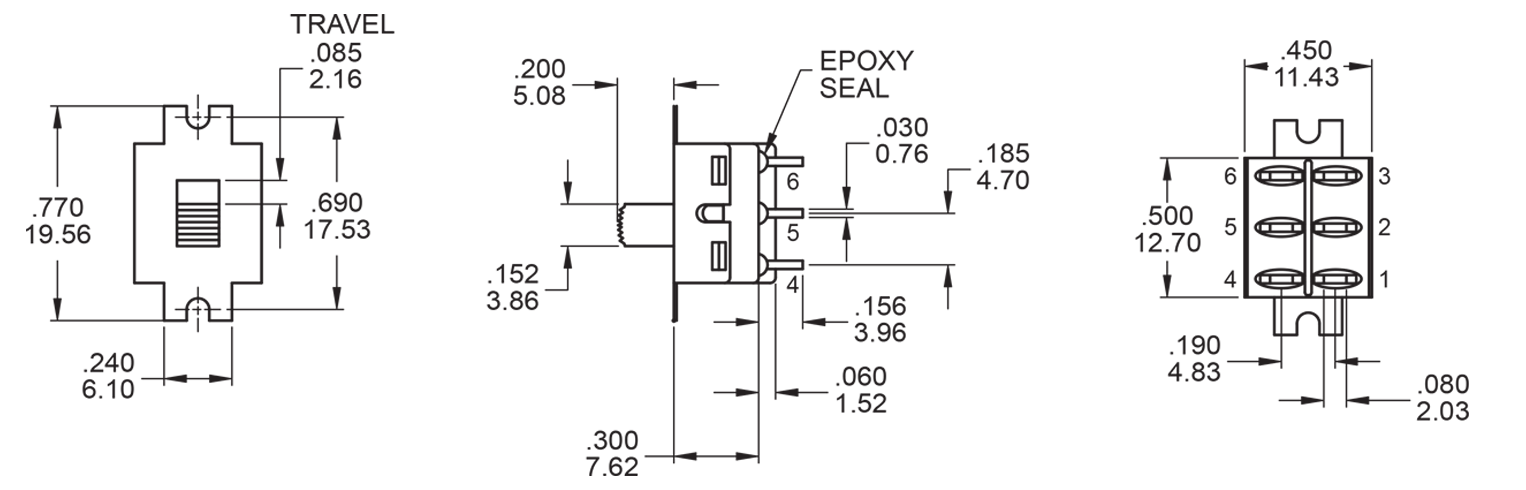

5m dpdt drawing, slide switch, RJS Electronics Ltd
