Slide Switch: 5F-M6-SPDT

Sub-miniature Slide switch

Features:

  • Slide Switch
  • SPDT
  • SMT, Panel mount or PC Board mount
  • Contact rating up to 3A
  • Gold or silver contact options and epoxy seal
  • Full 5F Series

Applications:

  • Audio & Broadcast
  • Boatbuilding & Marine
  • Home Automation
  • Medical Equipment
  • Industrial Controls



Function

Configuration

Illumination

Mechanical Operations

Product Series

Contact rating Dependent upon contact material
Mechanical life 30,000 make-and-break cycles
Contact resistance 20mΩ max initial. @2-4VDC

100mA for both silver and gold plated contacts

Insulation resistance 1,000 MΩ min
Dielectric strength 1,000 vms min @sea level
Operating temperature -30°C to 85°C

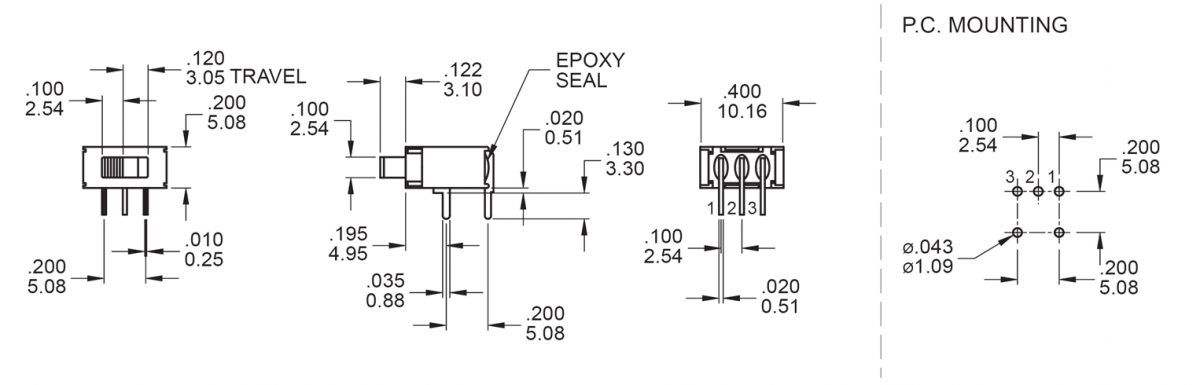

5F M6 SPDT- SLIDER SWITCHES - MZ - SPDT - PCB, PANEL MOUNT switches. Material Specs - RJS Electronics Ltd
