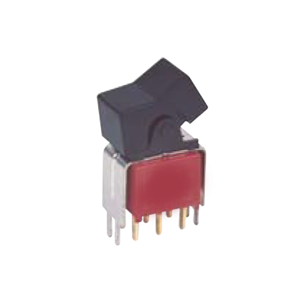

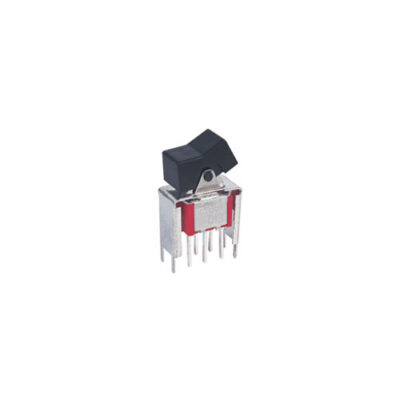

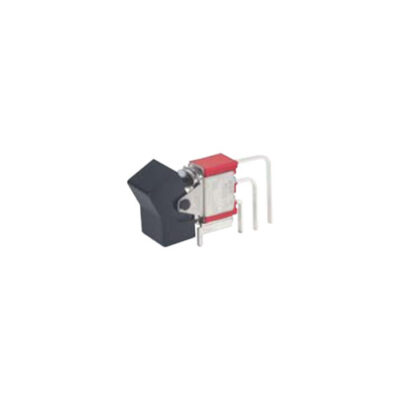

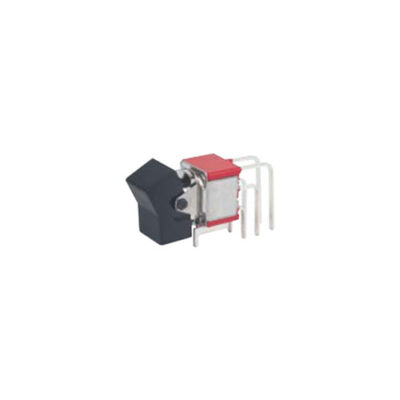

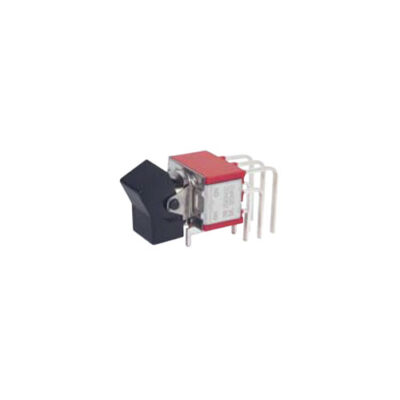

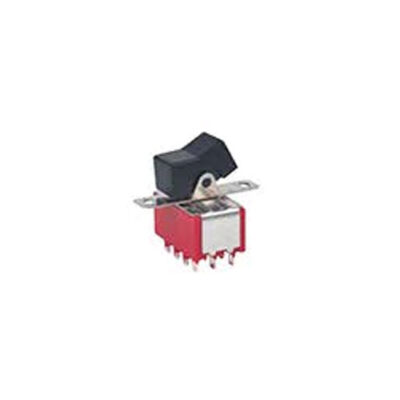

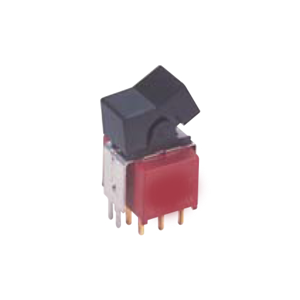

Rocker Switches

show blocks helper

IP Rating
IP Rating Dust & Water Proof Rating / Ingress Rating

  • IP67 (front)

Panel Cut-out

# of NO Contacts

# of NC Contacts

What are Rocker switches?

Rocker Switches operate on a see-saw mechanism, when one side is pressed down the other side raises. Available as PCB or panel mount, designed to switch a device on/off or to activate a certain feature. For example, turning a coffee machine on. we supply a wide range of rocker switches supporting a wide range of options including different sizes, voltages, types of actuators, configurations SPDT – 4PDT, panel mount and PCB mount, sealed IP rated options, illuminated rockers and the number of poles and throws.

rocker switches, panel mount with on off marking, rjs electronics ltd

Key Features

  • Miniature and Sub-miniature types available
  • PCB mount / Panel Mount
  • Illuminated options
  • Markings available
  • Sealed IP rated types available

Poles & Throws Explained – The number of poles on a switch defines how many separate circuits the switch can control. Therefore, a switch with one pole (SPST), can only influence one single circuit. The amount of Poles will determine how many circuits the component, Rocker Switch, can control.

A switch’s throw count defines how many positions each of the switch’s poles can be connected to. For example, if a switch has two throws, each circuit (pole) in the switch can be connected to one of two terminals.

SPST switches make or break the connection of a single conductor in a single branch circuit. This switch type typically has two terminals and is referred to as a single-pole switch.

SPDT  switches make or break the connection of a single conductor with either of two other single conductors. These switches usually have three terminals and are commonly used in pairs. SPDT switches are sometimes called three-way switches.

DPST  switches make or break the connection of two circuit conductors in a single branch circuit. They usually have four terminals.

DPDT  switches make or break the connection of two conductors to two separate circuits. They usually have six terminals are available in both momentary and maintained contact versions.

normally open (NO)  switch has contacts that are open or disconnected in their unactuated (normal) position. A normally closed (NC) switch has contacts that are closed or connected in their unactuated (normal) position.

Momentary ON – describes contacts that interrupt the circuit when the switch is in the normal, open (NO) position.

Momentary OFF – describes contacts that establish a circuit when the switch is in the normal, closed (NC) position.

Alternate ON/OFF – describes a switch where the first actuation turns the switch ON and the second actuation turns the switch OFF.

Poles and throws, switch configuration diagram, rjs electronics ltd

Switch Voltage Rating – This states the maximum voltage accepted in an electrical circuit where the switch is utilised.

Illumination and Markings – We supply LED illuminated rockers which can be available with or without symbols or text.

led illuminated rocker switches, with on off markings, panel mount, 12v switch, rjs electronics ltd

Typical markings include ‘|’ & ‘O’, the universal symbols for off and on. Or just simply the text itself on either end of the rocker.

IP Rated Rockers – A selection of our Rocker switches are sealed to IP67. See an outline of the IP ratings and their meanings below. For more information on click here to read our blog post.

IP65 Dust tight, protected against water projected from a nozzle.
IP66 Dust tight and protected against powerful water jets.
IP67 Dust tight and protected from water immersion for 30 minutes between depths of 150mm – 1000mm.
IP68 Dust tight and protected against continuous water immersion.
