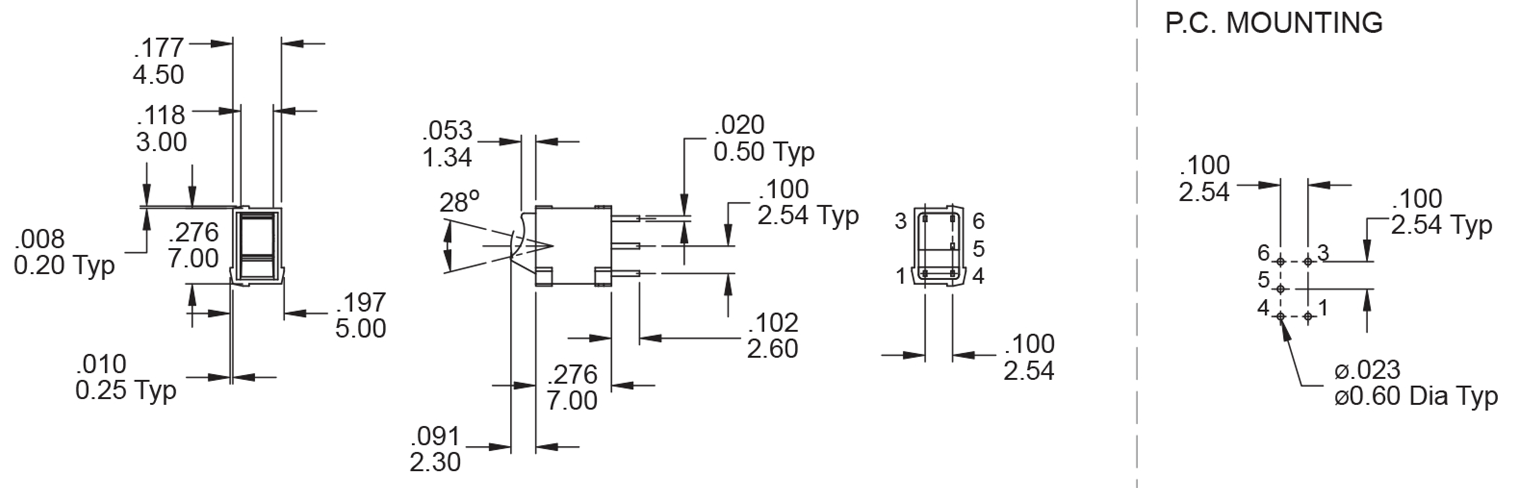

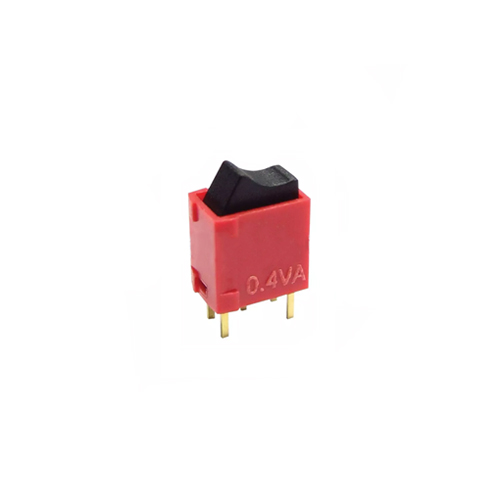

This Ultra-miniature Rocker Switch features a latching function and an SPDT configuration. It has vertical PCB mounting and a contact rating of up to 0.4VA.
Key Features:
| Function | |
|---|---|
| Contact Rating | 0.4 VA max. @ 20V AC or DC max. |
| Mechanical Operations | |
| Contact Resistance | 100 mΩ typ. initial @ 2-4VDC, 100mA |
| Insulation Resistance | DC500V 500 mΩ |
| Dielectric Strength | 500 Vms min@ sea level. |
| Product Series |
| Contact Rating | 0.4 VA max. @ 20 V AC or DC max. |
| Mechanical Life | 40,000 cycles |
| Contact Resistance | 100 m Ω typ. initial @ 2-4VDC 100mA |
| Insulation Resistance | DC500V 500 M Ω |
| Dielectric Strength | 500 vrms min. @ sea level |
| Operating Temperature | -30°C to 85°C |
