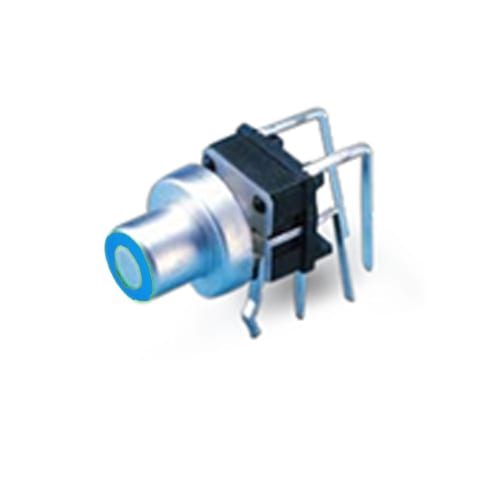

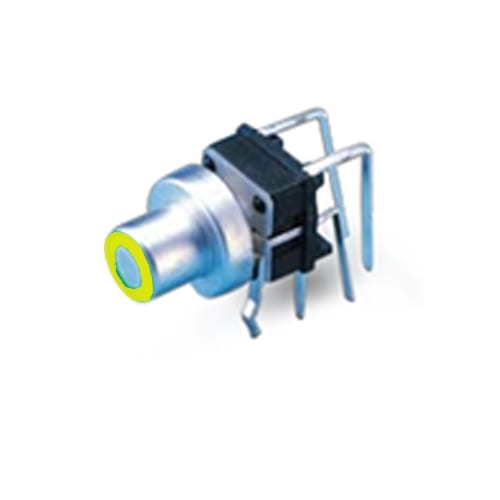

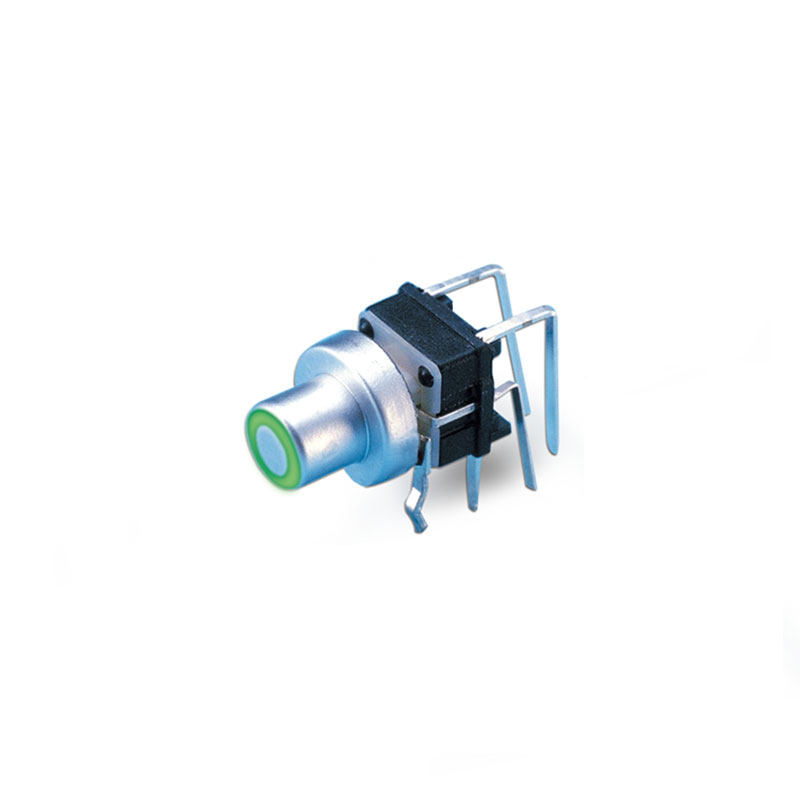

PB6156RSL

The PCB switch with LED illumination is a type of switch that is mounted on a printed circuit board (PCB), making it easy to integrate into electronic devices. This switch has a momentary function, meaning that it only stays activated while it is being pressed. Additionally, the switch comes with RGB LED illumination available, allowing it to display multiple colors.

Key Features:

  • LED Illuminated Push Button Switch
  • Momentary function
  • Tactile feedback
  • Single / bi-colour / RGB LED illumination
  • Rating: 50mA 12VDC
  • Right angle type
Configuration

Illumination

Single LED options

, , , , , , , , ,

Cap Dimensions (mm)

Cap / Actuator Shape

Terminal Options

Orientation

Function

,

Product Series

,



PB615 Series Specification



Rating 50mA 12VDC
Insulation Resistance 100MΩ Min (at 500VDC)
Dielectric Strength AC 250V (50/60 Hz for 1 minute)
Contact Resistance 100mΩ Max. (Initial)
Electrical Life 300,000 Cycles Min
Ambient Temperature -25°c~ +70°c
Operating force 160 + 50gf

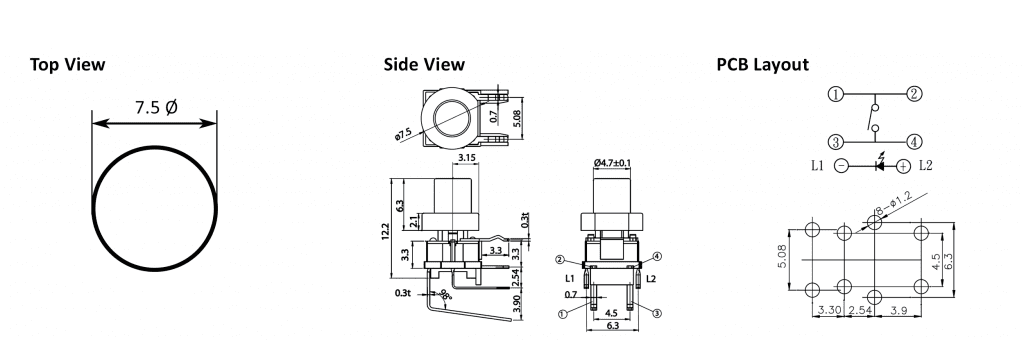

pcb push button switch with led illumination drawing, rjs electronics ltd
