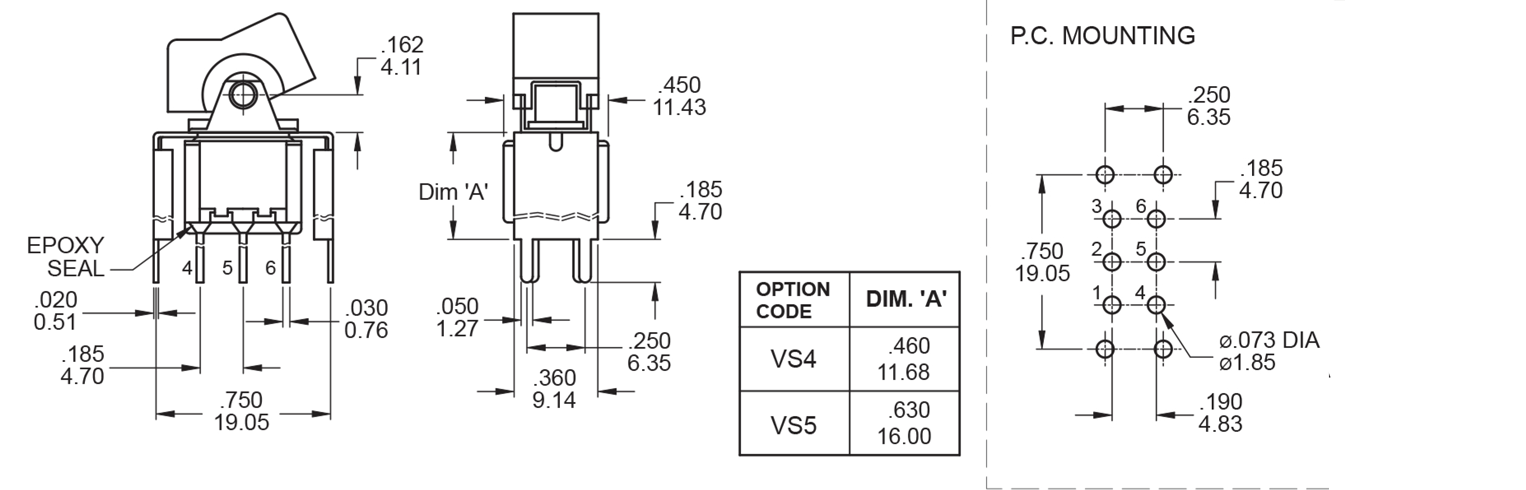

This PCB Rocker Switch features a DPDT configuration and vertical bracket mounting. It is available with a momentary or latching function and 2 or 3 positions.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Mechanical Operations | |
| Product Series | |
| Insulation Resistance: | 1,000 MΩ min. |
| Dielectric Strength: | 1,000 Vrms min.@sea level. |
| Contact Resistance: | 10 m Ω max. initial @ 2-4VDC, 1 00mA for both silver and gold plated contacts. |
| Contact Rating | Dependent upon contact material |
| Mechanical Life | 40,000 cycles |
| Contact Resistance | 10 m Ω max. initial @ 2-4VDC 100mA |
| Insulation Resistance | 1000 m Ω min. |
| Dielectric Strength | 1000 vrms min. @ sea level |
| Operating Temperature | -30°C to 85°C |
