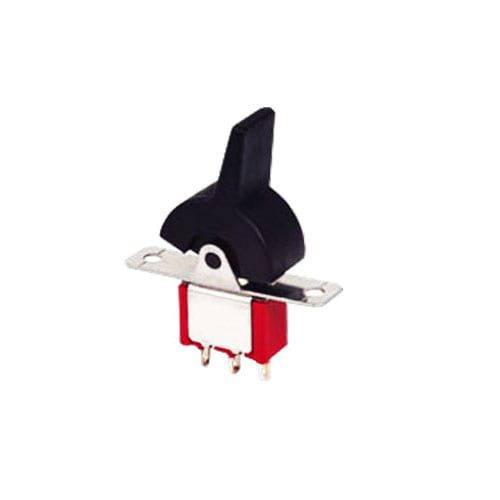

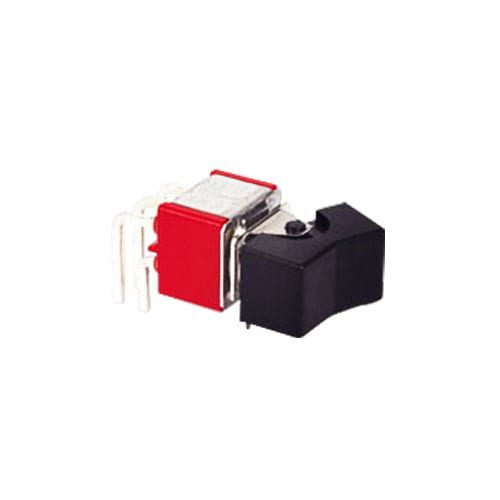

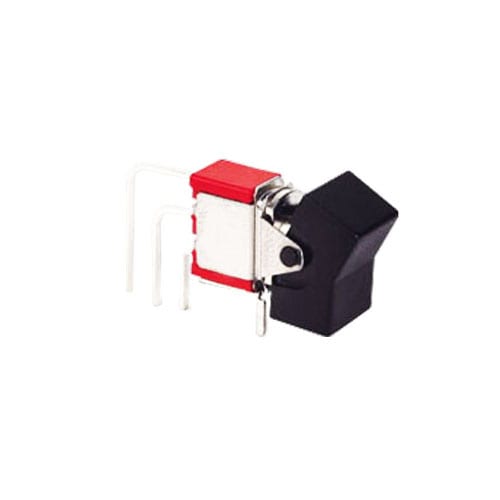

Rocker Switch: 3M-VS2-VS3-DPDT

3MSeries - 3A - VS2 - VS3 -DPDT - Rocker Switches, Panel Mount switches. Panel Mount, momentary functioning Rocker switches by RJS Electronics Ltd, Rocker Switches, on off switch, plastic, metal, PCB, panel mount switch, available with and without LED illumination, IP rated, miniature sealed rocker and paddle switch, SPDT – 3PDT. RJS Electronics Ltd.

  • Miniature Rocker and  Paddle Switches
  • DPDT
  • Contact Rating up to 5A
  • Full 3m Series

Applications

  • Automotive
  • Security
  • Door entry
  • Medical
PDF
SKU: 13250 Categories: , , , , ,
PDF
Function

Illumination

Mechanical Operations

Product Series

Insulation Resistance:

1,000 MΩ min.
Dielectric Strength:

1,000 Vrms [email protected] level.
Contact Resistance:

10 m Ω max. initial @ 2-4VDC, 1 00mA for both silver and gold plated contacts.

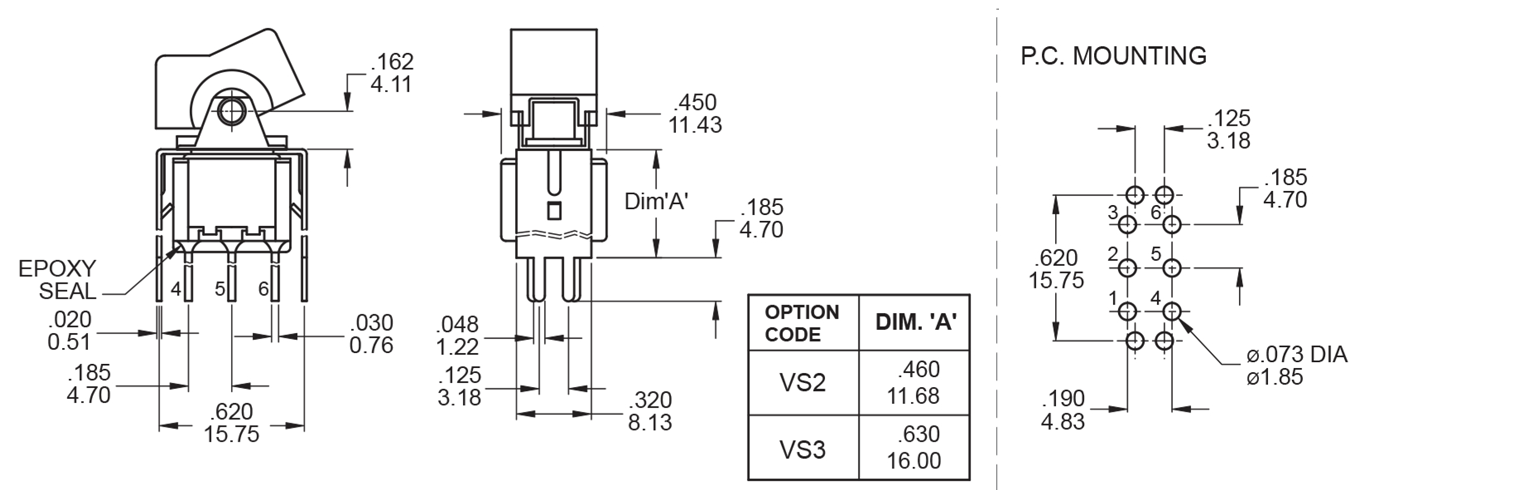

Drawing
Mechanical & Electrical Specs
Materials
