| Panel Cut-Out Diameter | |
|---|---|
| Function | |
| IP Rating | |
| Illumination | |
| Terminal Options |

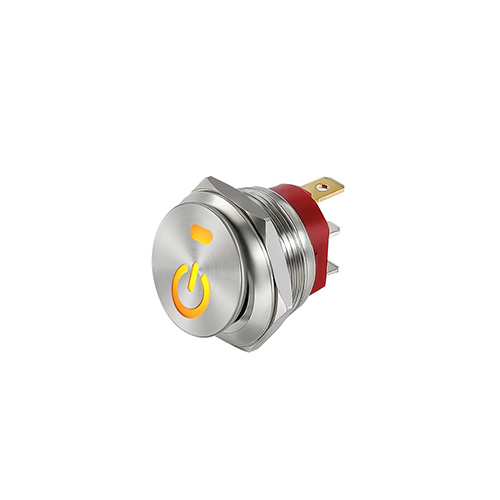

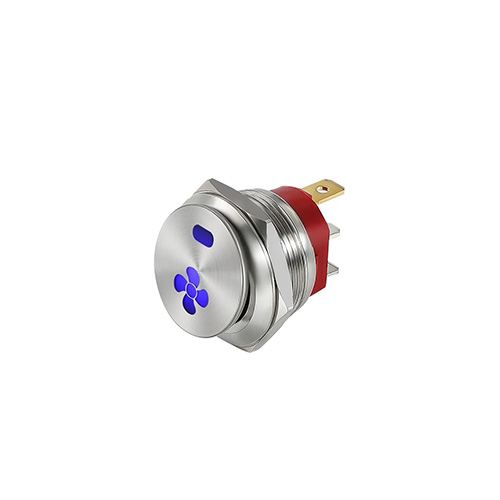

22mm panel mount anti vandal rocker switch. Choose from an array of LED illuminated custom symbols. Equipped with IP65 rating to ensure durability, ideal for a variety of electrical control applications.
Key Features:
| Panel Cut-Out Diameter | |
|---|---|
| Function | |
| IP Rating | |
| Illumination | |
| Terminal Options |
| Contact Resistance | ≤ 50m Ω |
| Insulation Resistance | ≥ 1000M Ω |
| Insulation Strength | 2000VAC |
| Ambient Temperature | -20 °C ~ +55 °C |
| Electrical Life | > 10,000 times |
| Mechanical Life | > 10,000 times |
| Operating Pressure | 2.5-4.5N |
| Operating Schedule | 2mm, 3mm |
