TP6X7ML

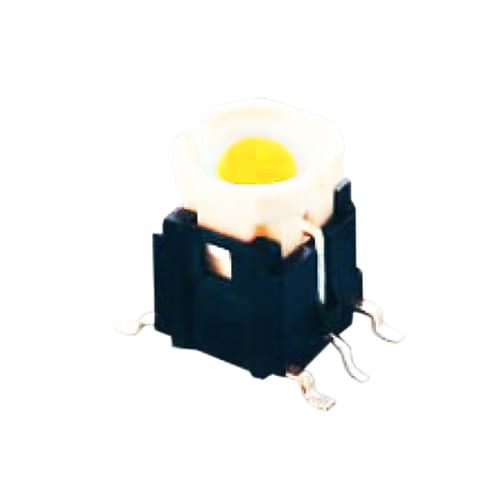

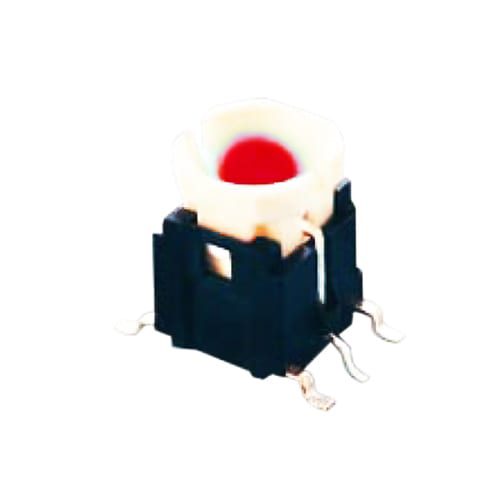

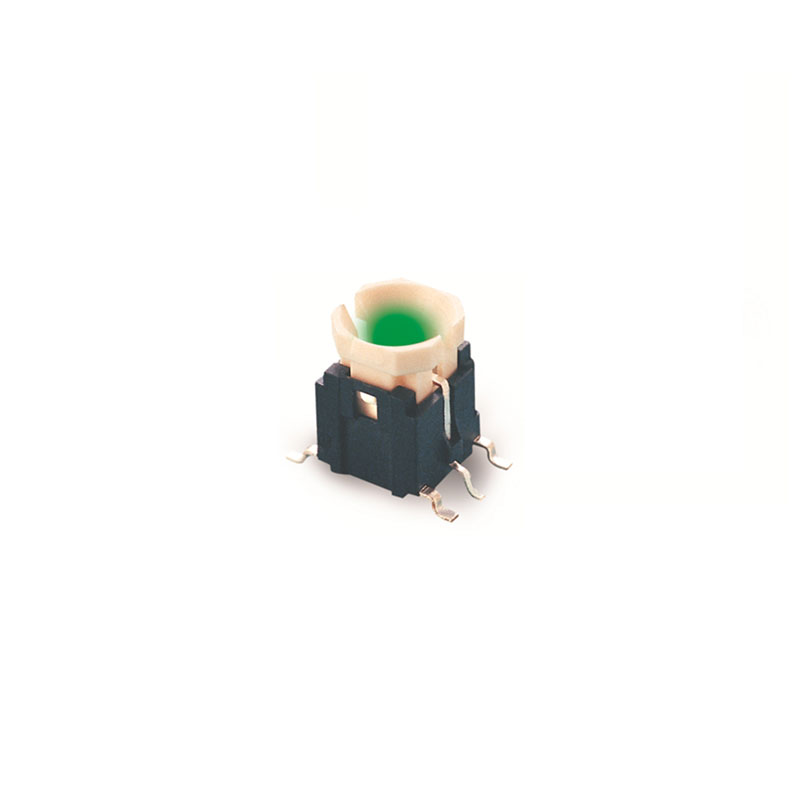

PCB push button switch, equipped with momentary function, with a tactile ‘clicky’ feel. Available with single or bi-colour LED illumination.

Key Features:

  • LED illuminated push button switch
  • Momentary function
  • Single/bi-colour LED illumination
  • Tactile feel
Product Series

Function

,

Illumination

Multi-Colour LED Options

, , , , , , ,

TP617 Series TP617 TP627 TP637 TP647
Rating 50mA 48VDC 10mA 12VDC 50mA 48VDC 50mA 12VDC
Insulation resistance 100MΩ Min (at 500VCD) 100MΩ Min (at 500VCD) 100MΩ Min (at 500VCD) 100MΩ Min (at 500VCD)
Dielectric strength AC 250V (50/60 Hz for 1 minute) AC 250V (50/60 Hz for 1 minute) AC 250V (50/60 Hz for 1 minute) AC 250V (50/60 Hz for 1 minute)
Contact resistance 100mΩ Max. (Initial) 500mΩ Max. (Initial) 100mΩ Max. (Initial) 20mΩ Max. (Initial)
Electrical life 300,000 Cycles Min 100,000 Cycles Min 300,000 Cycles Min 100,000 Cycles Min
Ambient temp -20°c~ +70°c -20°c~ +70°c -20°c~ +70°c -20°c~ +70°c
Travel 0.25 + 0.1mm 1.0 + 0.2mm 0.6 + 0.2mm 1.0mm Min
Operating force 160 + 50gf

100 + 30gf

250 + 50gf

100 + 40gf 250 + 50gf 200gf Min

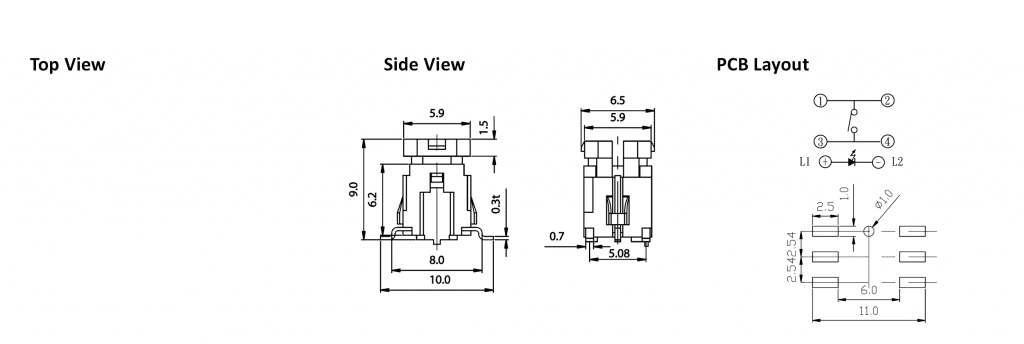

pcb push button drawing, rjs electronics ltd
