| Product Series | |
|---|---|
| Configuration | |
| Illumination | |
| Single LED options | Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Yellow |
| Cap / Actuator Shape | |
| Terminal Options | |
| Orientation | |
| # NC Contacts | |
| # NO Contacts | |
| Function |

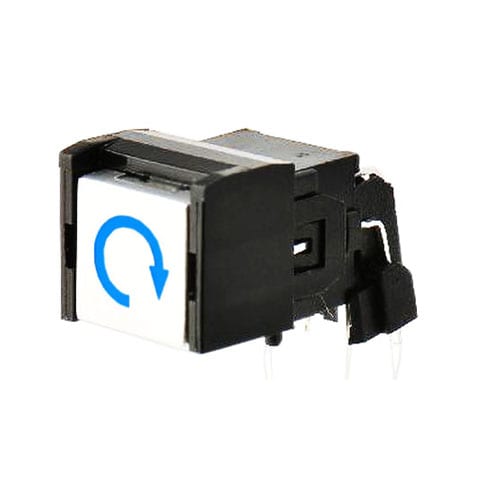

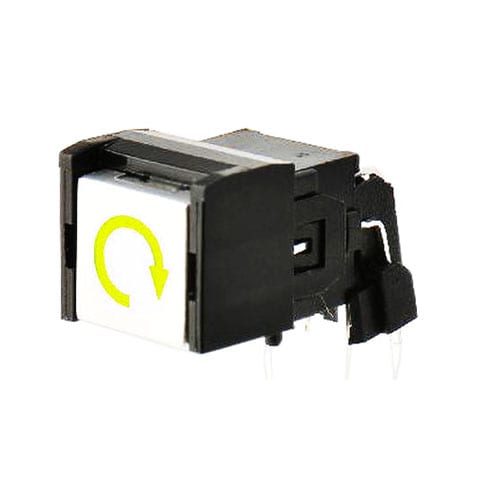

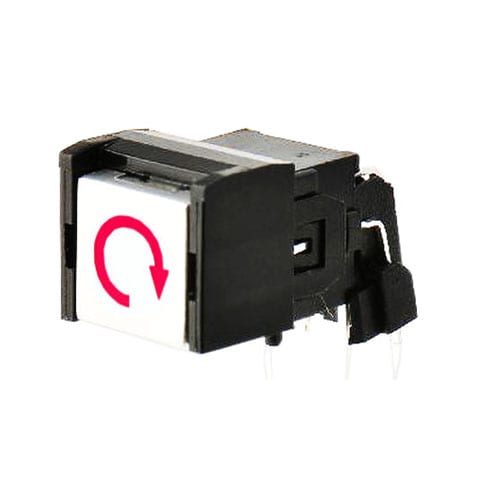

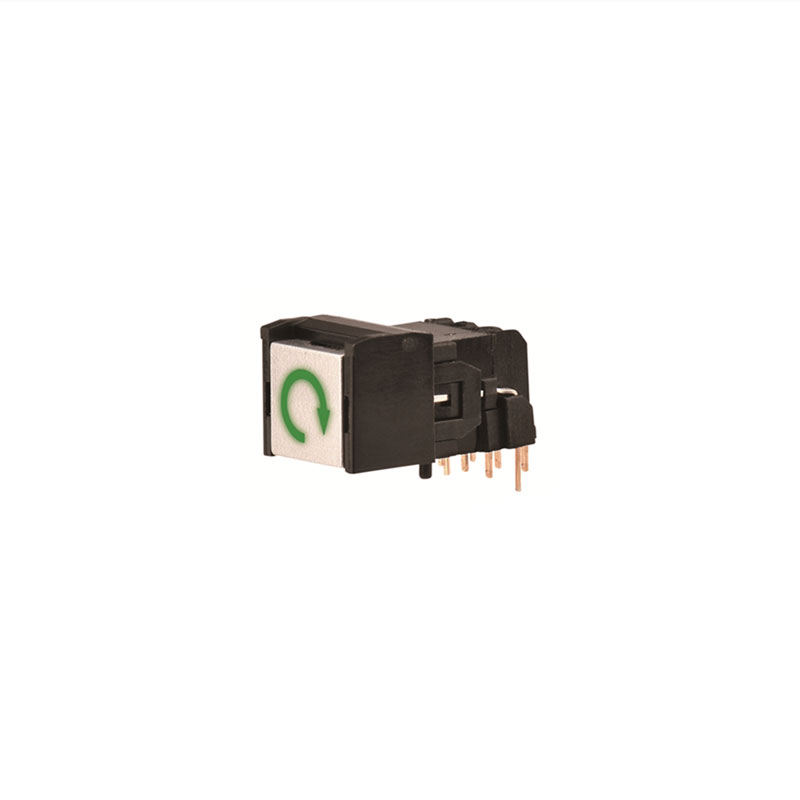

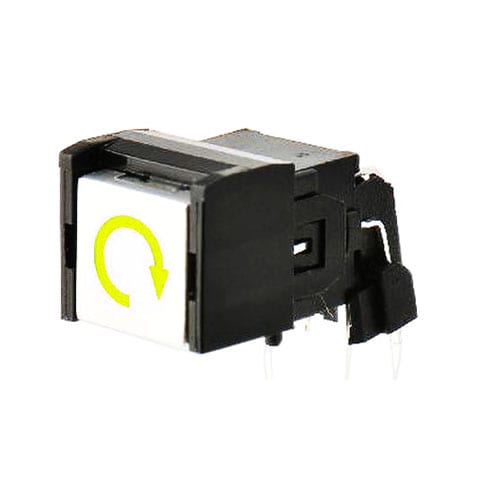

Our LED illuminated push button switch, designed for both momentary and latching functions. Available with single or bi-colour illumination options. Customise your switch further with various cap legends available to suit your needs.
Key Features:
| Product Series | |
|---|---|
| Configuration | |
| Illumination | |
| Single LED options | Blue Green, Pink, Pure Green, Purple, Blue, Green, Orange (Amber), Red, White, Yellow |
| Cap / Actuator Shape | |
| Terminal Options | |
| Orientation | |
| # NC Contacts | |
| # NO Contacts | |
| Function |
|

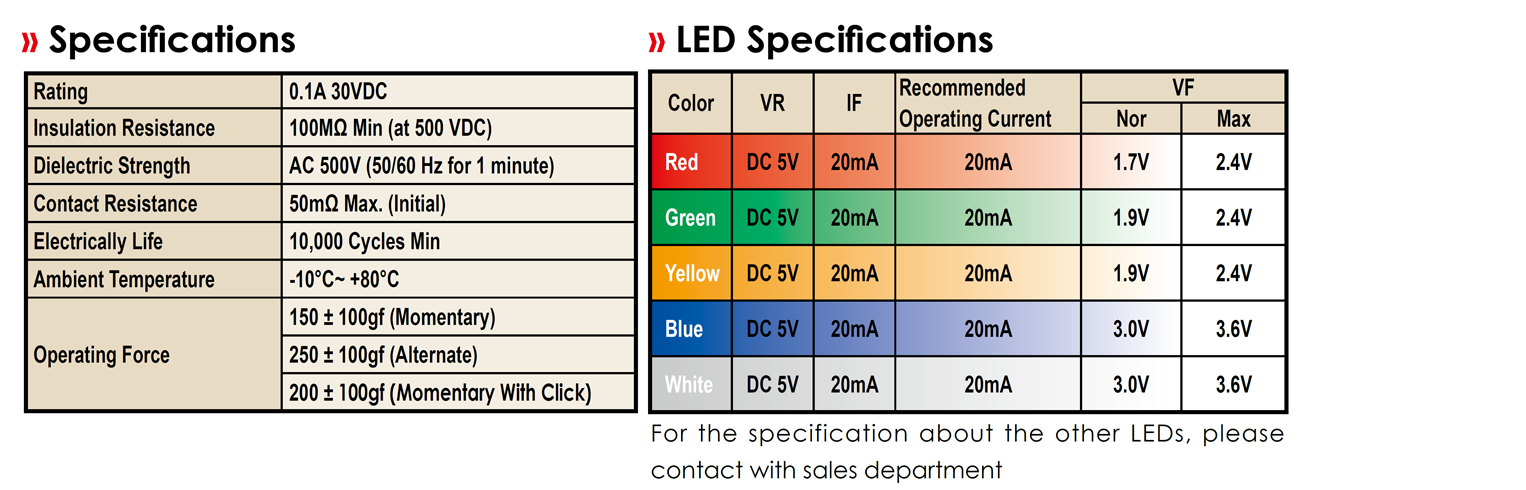

PB613 Series Specification
|
|
| Rating | 0.1A 30VDC |
| Insulation Resistance | 100MΩ Min (at 500VDC) |
| Dielectric Strength | AC 500V (50/60 Hz for 1 minute) |
| Contact Resistance | 50mΩ Max. (Initial) |
| Electrical Life | 10,000 Cycles Min |
| Ambient Temperature | -10°c~ +80°c |
| Operating Force | 150 + 100gf (Momentary) |
| 250 + 100gf (Alternate) | |
| 200 + 100gf (Momentary with click) | |
