PB615302

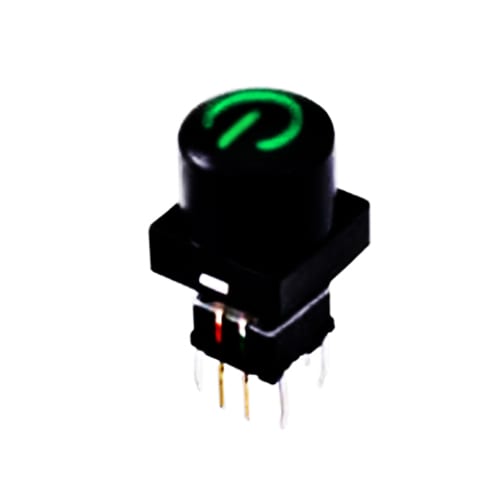

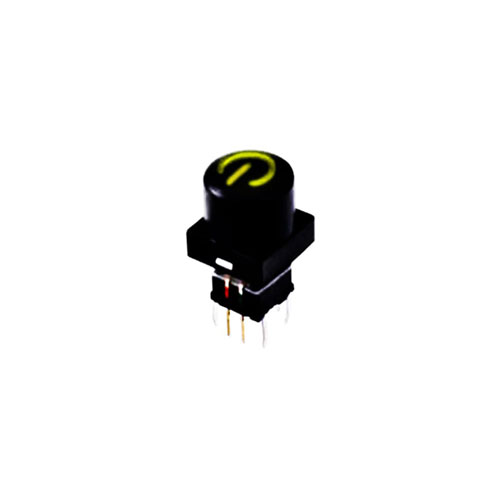

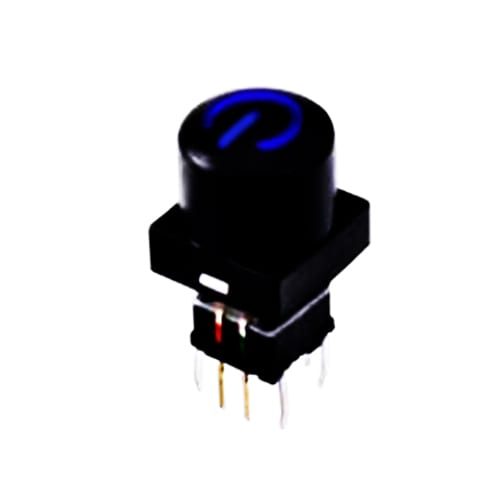

LED illuminated push button switch, available with single, bi-colour or RGB illumination options. Equipped with a momentary function with tactile feedback.

Key Features:

  • PCB push button (THT)
  • Momentary function
  • Tactile feedback
  • Single / bi-colour / RGB LED
  • Rating: 50mA 12VDC
  • Round cap
Product Series

,

Cap / Actuator Shape

Cap Dimensions (mm)

Configuration

Illumination

Single LED options

, , , , , , , , , ,

Multi-Colour LED Options

, , , , , , ,

Terminal Options

Orientation

Function

,



PB615 Series Specification



Rating 50mA 12VDC
Insulation Resistance 100MΩ Min (at 500VDC)
Dielectric Strength AC 250V (50/60 Hz for 1 minute)
Contact Resistance 100mΩ Max. (Initial)
Electrical Life 300,000 Cycles Min
Ambient Temperature -25°c~ +70°c
Operating force 160 + 50gf

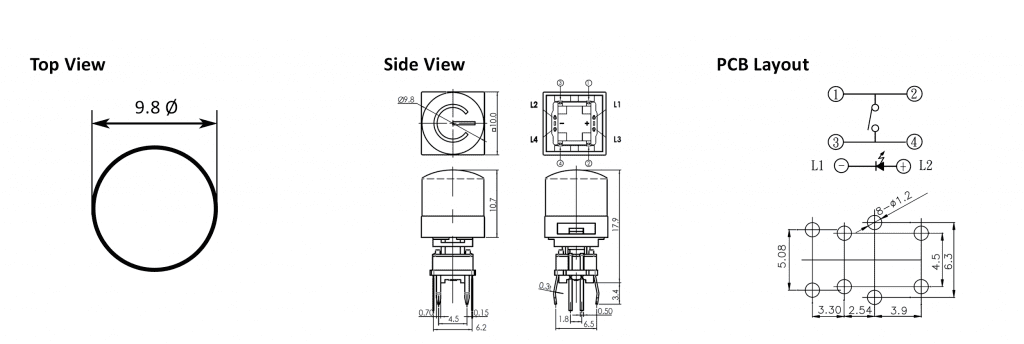

PCB switches led button drawing, rjs electronics ltd
