SPD2T

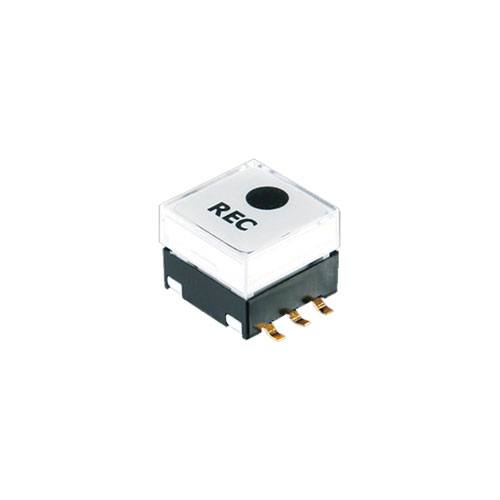

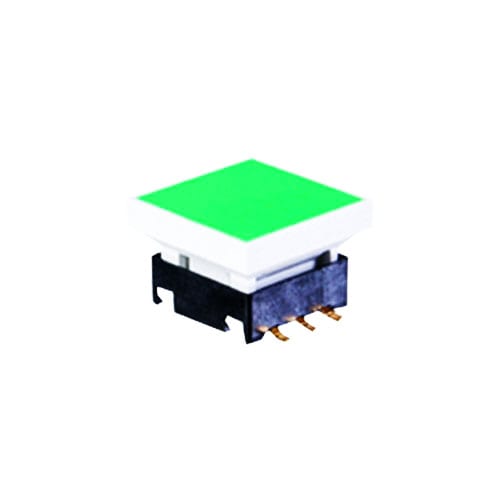

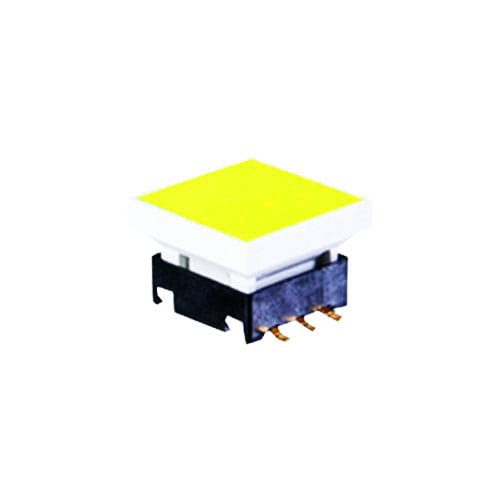

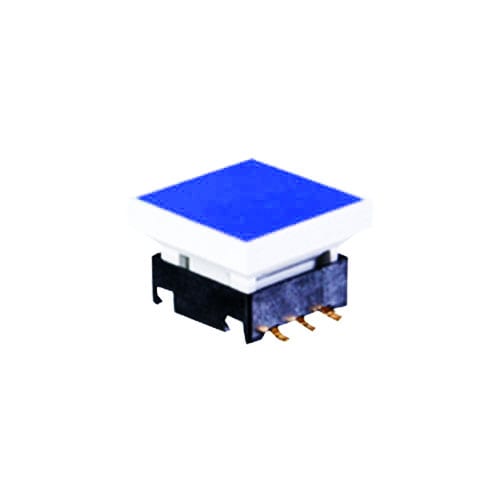

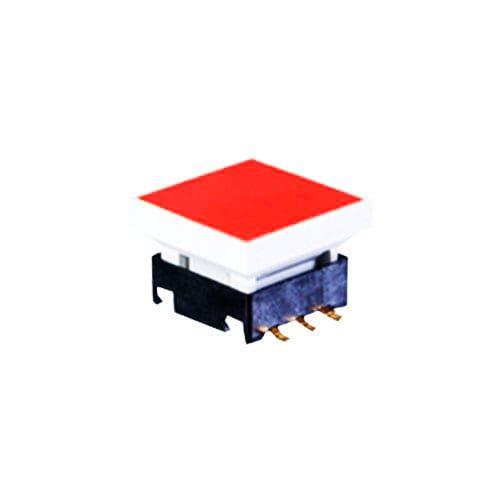

This PCB Push Button Switch has a square cap with a tactile click. It features single, bi-colour or RGB LED illumination and a momentary function.

Key Features:

  • LED illuminated switch
  • Momentary function
  • Single/bi-colour/RGB LED illumination
  • Caps range from 10mm to 17mm as standard
  • 10 or 12mm base
  • Compatible with Smart Caps.
  • Tactile switch
Product Series

Configuration

Single LED options

, , , , , ,

Illumination

, , ,

Terminal Options

Orientation

Function

,

Multi-Colour LED Options



SPD-Z Series Specification



Circuit SPST
Current rating 50mA @ 12VDC
Contact resistance 100mOhm max.(initial)
Insulation resistance 100MOhm min
Operating force 220gf + 50gf (S1~4)
Total travel 0.3mm + 0.1mm
Mechanical life 1,000,000 cycles min
Operating temperature -25deg~+60deg
Solder specifications 250 deg


SPD-Z Series Materials



Cover Polycarbonate (PC)
reflector Polyamide (PA)
Base LCP
Action dome Stainless steel with silver plating
Terminal Phosphor bronze (PBS) with gold plating

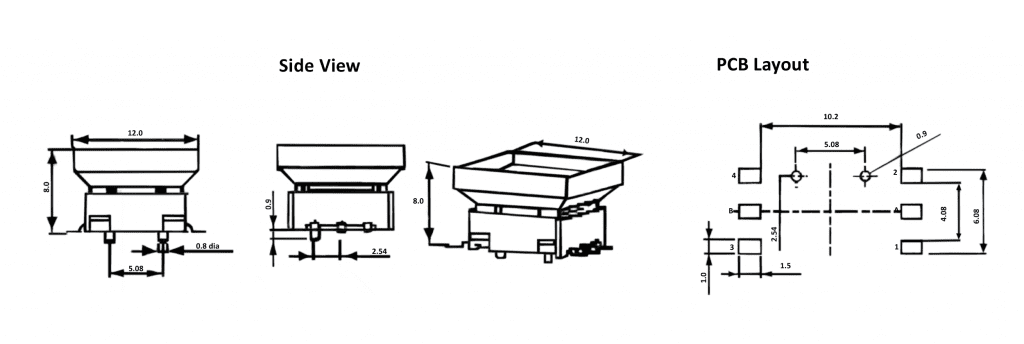

spd2 push button switch drawing, led illuminated button, rjs electronics ltd
