Toggle Switch

show blocks helper

IP Rating
IP Rating Dust & Water Proof Rating / Ingress Rating

  • IP65 (front)
  • IP67 (front)

Panel Cut-out

# of NO Contacts

# of NC Contacts

What are Toggle Switches?

A toggle switch is a type of electromechanical switch with a handle or lever that is pushed to control the electrical flow to a device. Our toggle Switches are available in a range of sizes to suit your project. We have filtered our Toggle switches into the following categories to make it easy to locate the Toggle switch you are looking for.

Key Features

  • IP67 rated Toggles (front)*
  • LED illumination options*
  • Vertical / Horizontal/ Right-angle position

Configurations:

Our Toggles configure to SPDT – 4PDT.

  • SPSP – single pole single throw
  • SPDT – single pole double throw
  • DPST – double pole single throw
  • DPDT – double pole double throw
  • 3PDT – Three poles double throw
  • 4DPDT – Four poles double throw

SPST switches make or break the connection of a single conductor in a single branch circuit. This switch type typically has two terminals and is referred to as a single-pole switch.

SPDT  switches make or break the connection of a single conductor with either of two other single conductors. These switches usually have three terminals and are commonly used in pairs. SPDT switches are sometimes called three-way switches.

DPST  switches make or break the connection of two circuit conductors in a single branch circuit. They usually have four terminals.

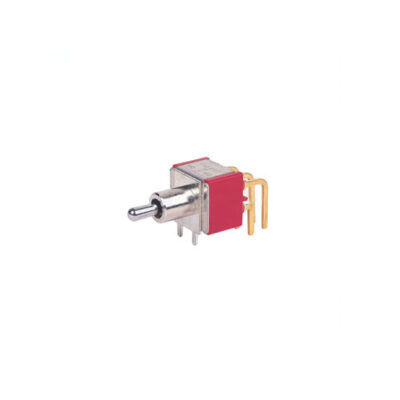

DPDT  switches make or break the connection of two conductors to two separate circuits. They usually have six terminals are available in both momentary and maintained contact versions.

normally open (NO)  switch has contacts that are open or disconnected in their unactuated (normal) position. A normally closed (NC) switch has contacts that are closed or connected in their unactuated (normal) position.

IP Ratings

See the chart below outlining the IP rating and its characteristics.

IP65 Dust tight, protected against water projected from a nozzle.
IP66 Dust tight and protected against powerful water jets.
IP67 Dust tight and protected from water immersion for 30 minutes between depths of 150mm – 1000mm.
IP68 Dust tight and protected against continuous water immersion.

Many of our PCB and panel mount switches are IP rated. For more information about IP ratings, click to read our blog about IP rating.

Toggle Accessories

Our toggle switches are available with added accessories if required for your project.

• Switch guards

Toggle switch guards are predominantly used for protecting the switch, and preventing the toggle from accidentally being turned off or on. The solid casing covers the toggle, guarding it against accidental movements.

toggle switch accessories - switch guard, rjs electronics ltd

• Rubber boot

A toggle switch rubber boot is used as protection against dust and moisture. The boot encloses the base creating a dust tight seal.

toggle switch rubber boot, rjs electronics ltd

Explore our extensive range of toggles!
