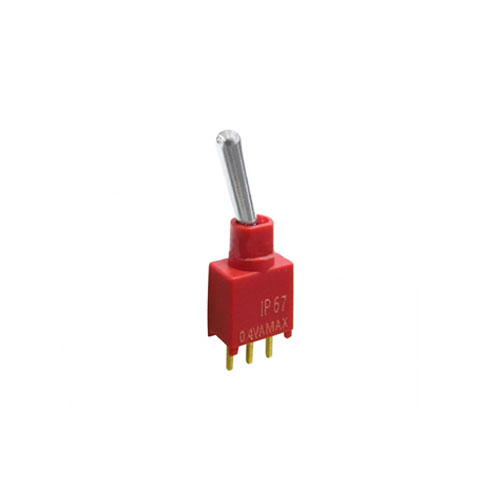

This Sub-Miniature PCB Toggle Switch has SPDT terminals and a vertical mounting. It can have 2 or 3 positions and is IP67 rated against water and dust.
Key Features:
| Function | |
|---|---|
| IP Rating | |
| Mechanical Operations | |
| Product Series |
| Contact Rating | Dependent upon contact material |
| Mechanical Life | 30,000 cycles |
| Contact Resistance | 20 m Ω max. (initial value) @ 2-4 V DC, 100 mA for both silver and gold plated contacts |
| Insulation Resistance | 1000 M Ω min. / 1000VDC |
| Dielectric Strength | 1000 vrms min. @ sea level (initial value) |
| Operating Temperature | -40°C to 85°C |
