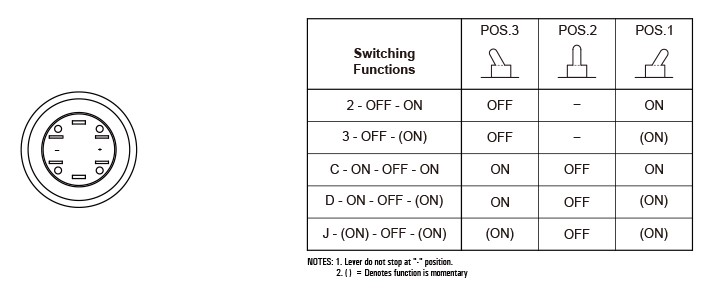

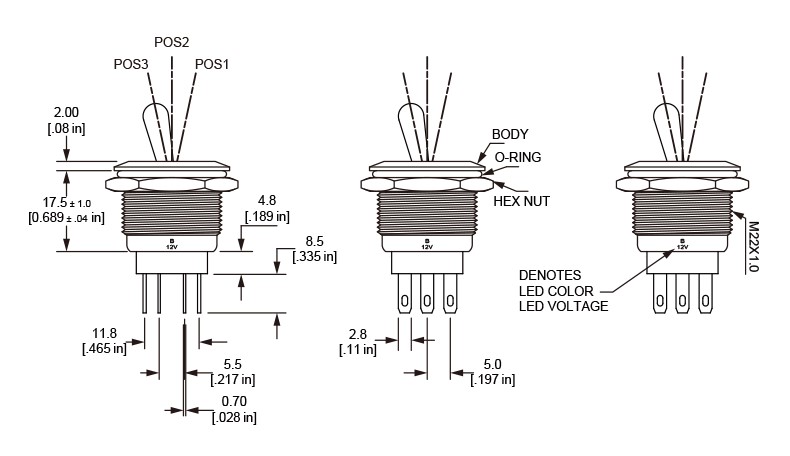

This 22mm Anti Vandal Toggle Switch features a metal lever and ring LED illumination. It has an IP67 rating and can have 2 position or 3 position configuration.
Key Features:
| Product Series | |
|---|---|
| Illumination | |
| Single LED options | |
| Cap / Actuator Shape | |
| Orientation | |
| Function | |
| IP Rating |
| Electrical Rating | 10A 250VAC |
| Insulation Resistance | ≥100MΩ Max |
| Dielectric Strength | 2,000VAC |
| Contact Resistance | ≤50mΩ Max |
| Electrical Life | 6,000 Cycles |
| Mechanical Life | 200,000 Cycles |
| Operating Temperature | -20°C to 55° C |
| Moisture Protection | IP67 |
| Actuation Force | 4N |

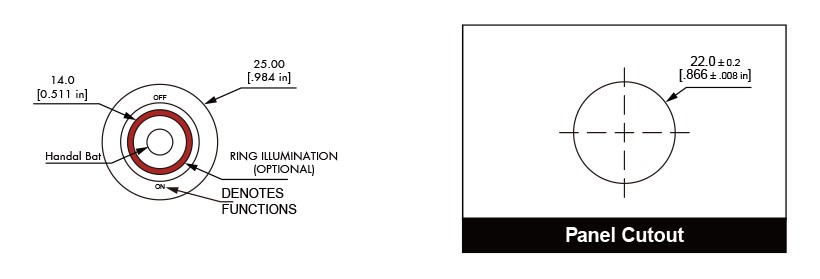

| Panel Thickness | 1-10mm |
| Mounting Nut Torque | 5-14Nm |
