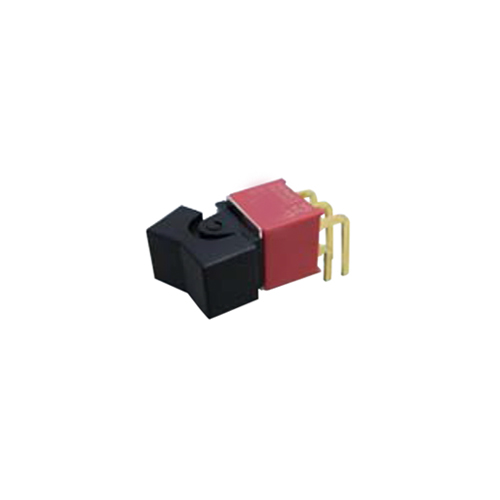

3A-M6-DPDT

Panel mount, Rocker, M6 DPDT, ROCKER SWITCH. Panel Mount, momentary functioning Rocker switches by RJS Electronics Ltd, Rocker Switches, on off switch, plastic, metal, PCB, panel mount switch, available with and without LED illumination, IP rated, miniature sealed rocker and paddle switch, SPDT – 3PDT. RJS Electronics Ltd.

  • Sealed Miniature Rocker and Paddle Switches
  • DPDT
  • Contact Rating up to 5A.
  • Sealed to IP67
  • Full 3A Series

Applications

  • Automotive
  • Boatbuilding & Marine
  • Security
  • Door entry
  • Medical

PDF

SKU: 11525 Categories: , ,
PDF
Function

IP Rating

Product Series

Mechanical Operations

Insulation Resistance:

1,000 MΩ min.
Dielectric Strength:

1,000 Vrms [email protected] level.
Contact Resistance:

10 m Ω max. initial @ 2-4VDC
1 00mA for both silver and gold plated contacts.

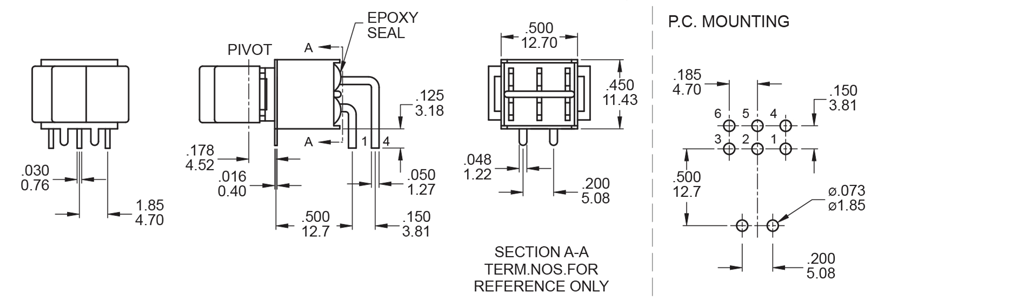

Circuit

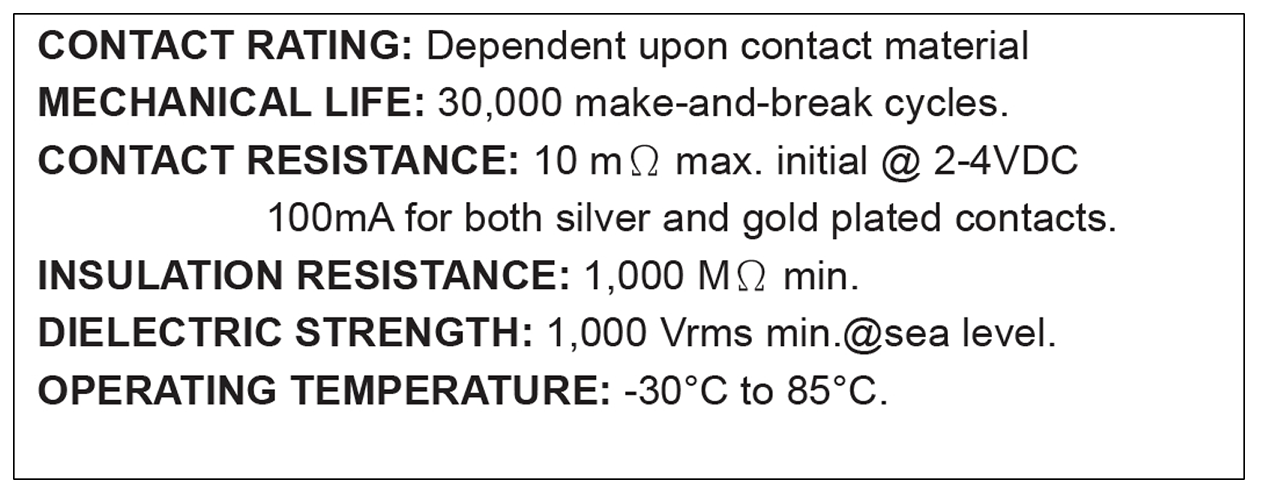

Mechanical & Electrical Specs

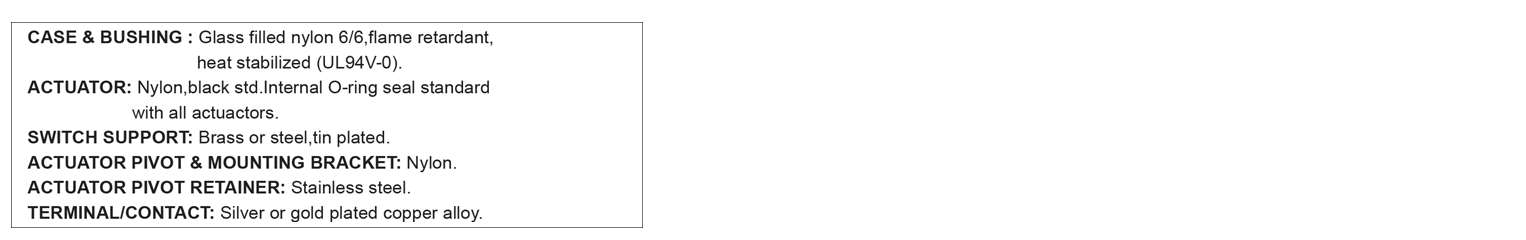

Materials
