| Function | |
|---|---|
| Product Series | |

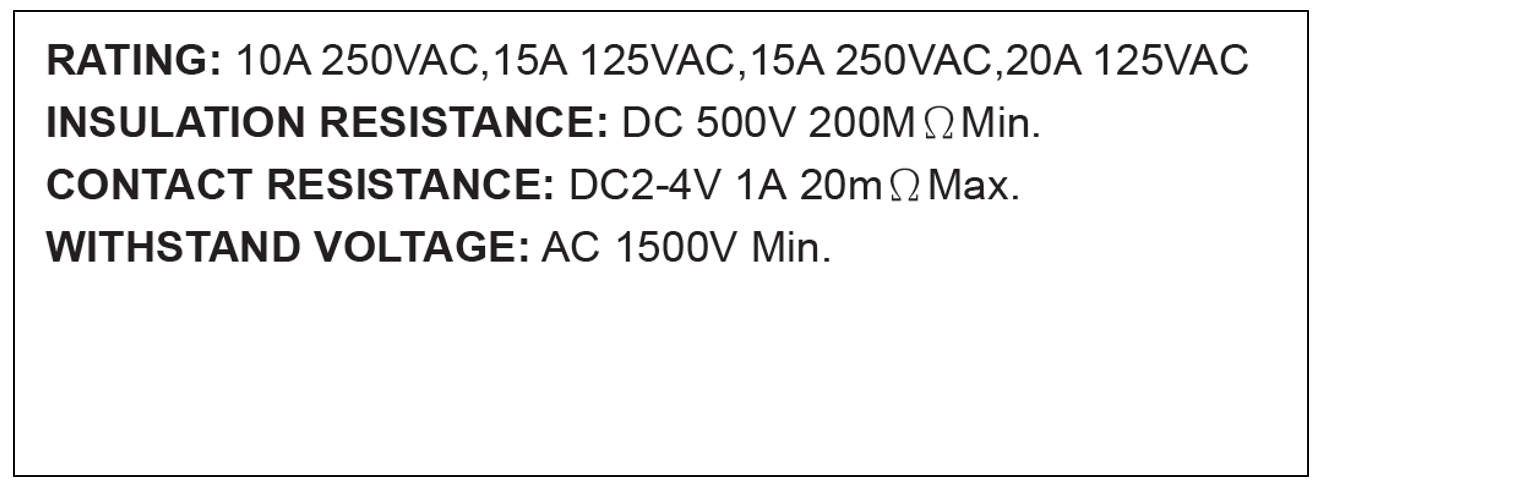

| Rating | 10A 250VAC, 15A 125VAC, 15A 250VAC, 20A 125VAC |
| Insulation Resistance | DC 500V 200M Ω min |
| Contact Resistance | DC2-4V, 1A 20mΩ max |
| Withstand Voltage | AC 1500V min |
| Illumination |

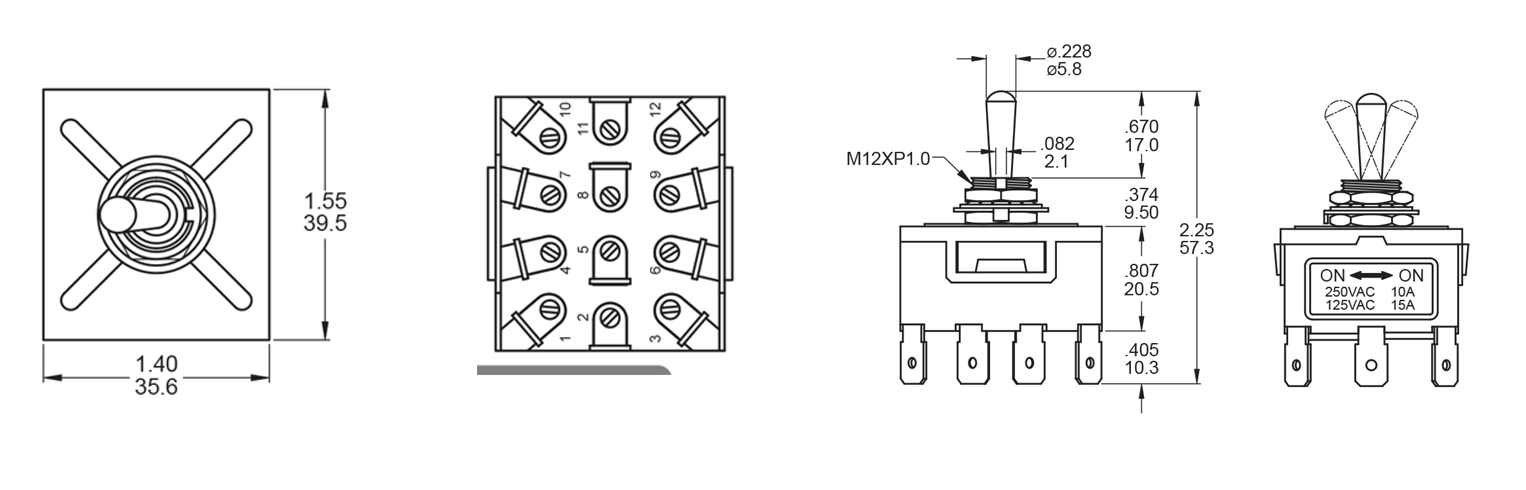

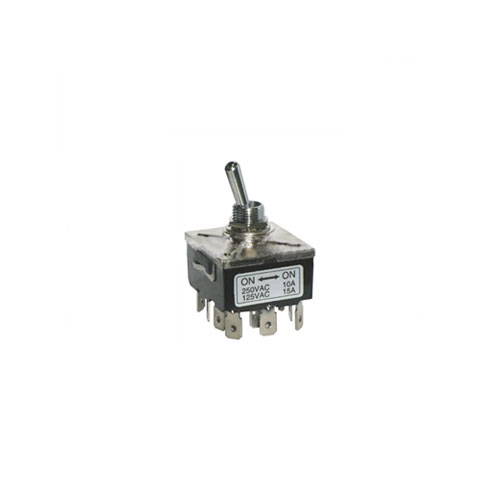

This PCB Toggle Switch features a 4PDT configuration and a vertical mounting style. It can have a momentary or latching function and 2 or 3 positions.
Key Features:
| Function | |
|---|---|
| Product Series | |
| Rating | 10A 250VAC, 15A 125VAC, 15A 250VAC, 20A 125VAC |
| Insulation Resistance | DC 500V 200M Ω min |
| Contact Resistance | DC2-4V, 1A 20mΩ max |
| Withstand Voltage | AC 1500V min |
| Illumination |
