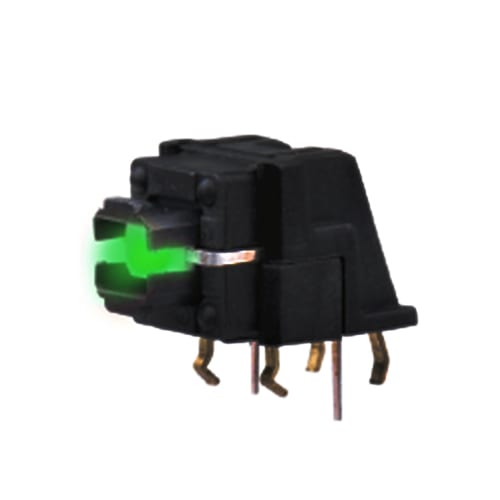

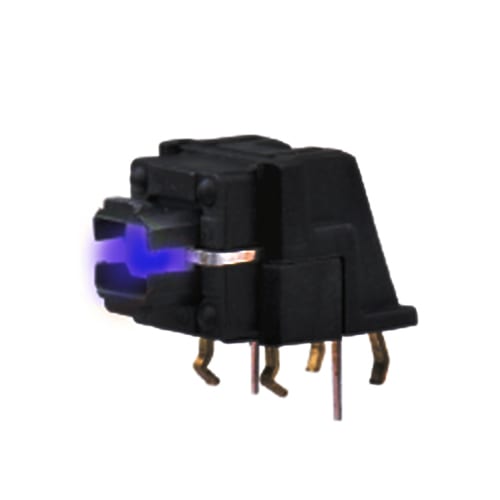

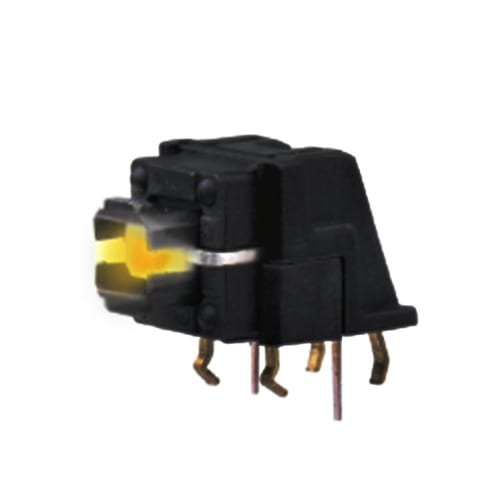

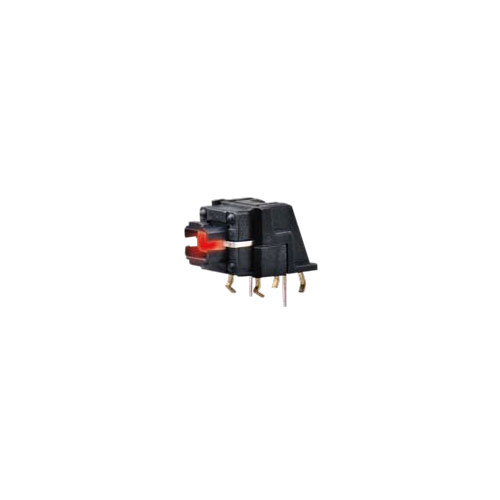

PCB push button switch equipped with momentary function and single or bi-colour LED illumination. Horizontal type with a rating of 50mA 12VDC, choose from a wide selection of caps.

Key Features:

  • Switch Only
  • Momentary function
  • Right angle switch
  • Single/bi-colour LED illumination option
  • Rating: 50mA 12VDC
  • Available with an array of caps caps
  • Tactile switches


Single LED options

, , , , , , , , ,

Terminal Options




Product Series


TP6151 Series Specification


Rating 50mA 12VDC
Insulation Resistance 100MΩ Min (at 500VCD)
Dielectric Strength AC 250V (50/60 Hz for 1 minute)
Contact Resistance 100mΩ Max. (Initial)
Electrical Life 300,000 Cycles Min
Ambient Temperature -25°c~ +70°c
Operating force 160 + 50gf

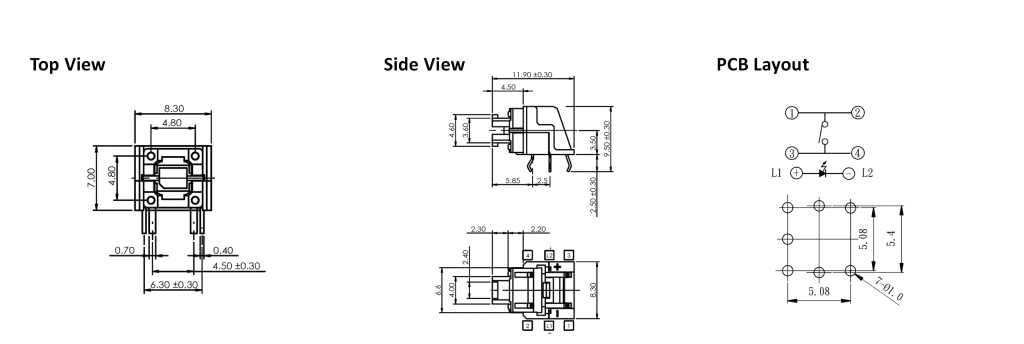

illuminated push button switch drawing, rjs electronics ltd
