RJS-19L(A)-TOG

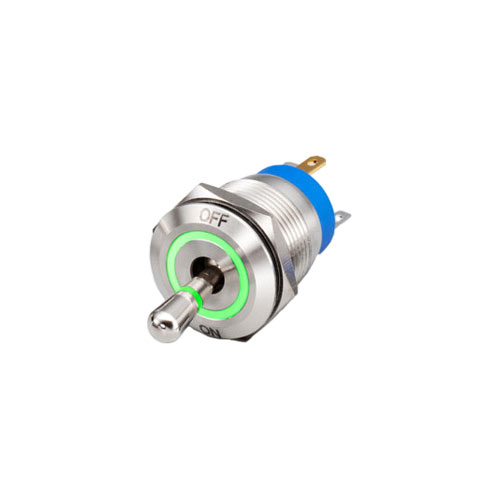

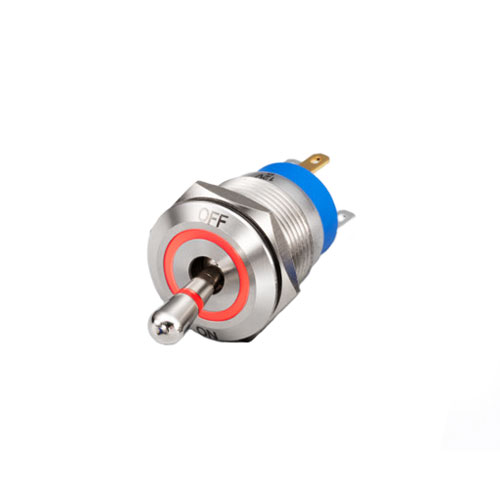

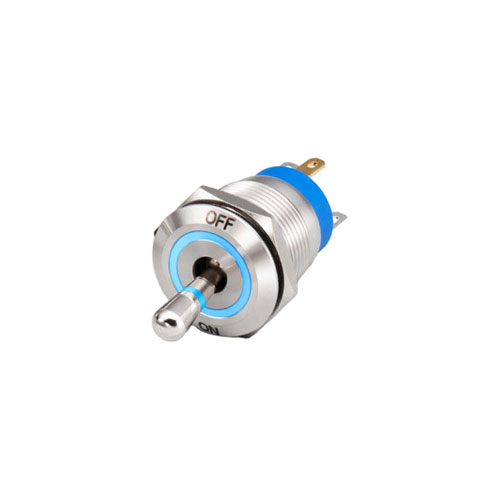

This 19mm Anti Vandal Toggle Switch features a metal lever and ring LED illumination. It has an IP67 rating and can have 2 position or 3 position configuration.

Key Features:

  • Ø 19mm panel cut out
  • Ring LED illumination
  • IP67 rating
  • 2 or 3 position options
  • Soldered wire leads (500mm) available



Data Sheet

Product Series

Illumination

Single LED options

, , , , ,

Cap / Actuator Shape

Orientation

Function

IP Rating

Electrical Rating 10A 250VAC
Insulation Resistance ≥100MΩ Max
Dielectric Strength 2,000VAC
Contact Resistance ≤50mΩ Max
Electrical Life 6,000 Cycles
Mechanical Life 200,000 Cycles
Operating Temperature -20°C to 55° C
Moisture Protection IP67
Actuation Force 4N
Panel Thickness 1-10mm
Mounting Nut Torque 5-14Nm

Drawing of RJS-19L(A)-TOG anti vandal toggle switch, ring led illumination, led switches, RJS Electronics LtdDrawing of RJS-19L(A)-TOG anti vandal toggle switch, ring led illumination, led switches, RJS Electronics LtdDrawing of RJS-19L(A)-TOG anti vandal toggle switch, ring led illumination, led switches, RJS Electronics Ltd
