| Function | |
|---|---|
| IP Rating | |
| Illumination | |
| Mechanical Operations | |
| Contact Rating | 0.4 VA max. @20V AC or DC max. |
| Contact Resistance | Below 100m Ω typ. initial @2-4V DC, 100 mA |
| Insulation resistance: | 500 mΩ min. |
| Dielectric Strength | 500 Vrms min. @ sea level. |
| Product Series |
- Vertical Toggle Switch
- Sealed Ultra-Miniature PCB Toggle Switches
- DPST
- Contact Rating up to 0.4VA
- Sealed to IP67 ratings
- Full 2u Series
Applications
- Audio & Broadcast
- Boatbuilding & Marine
- Home Automation
- Industrial Controls
Circuit

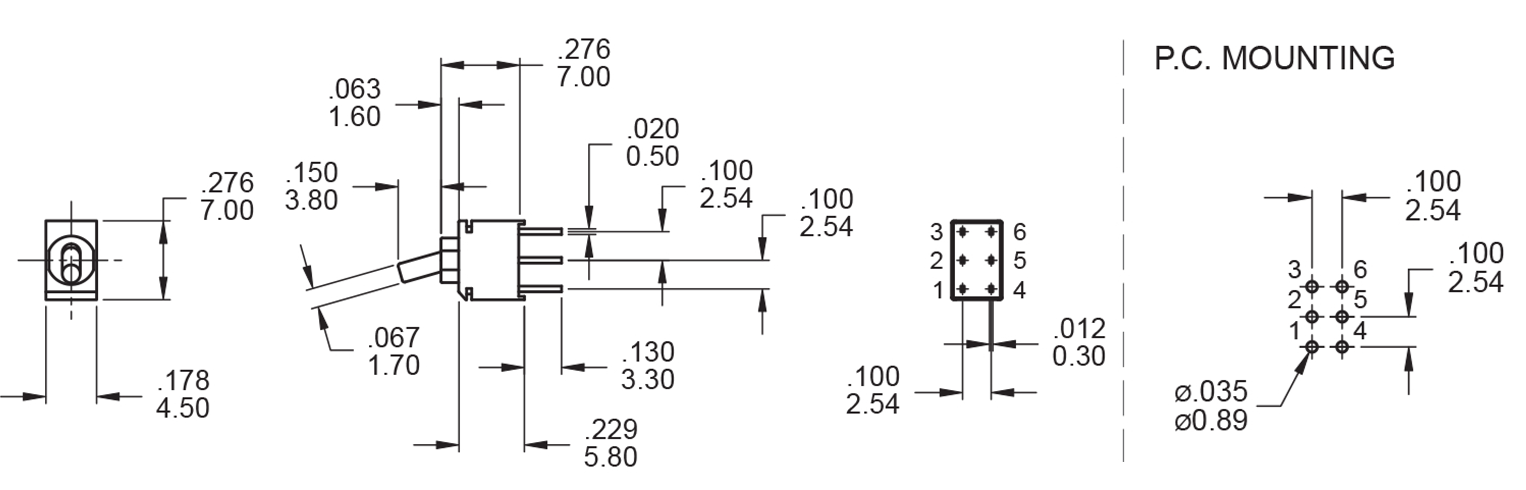

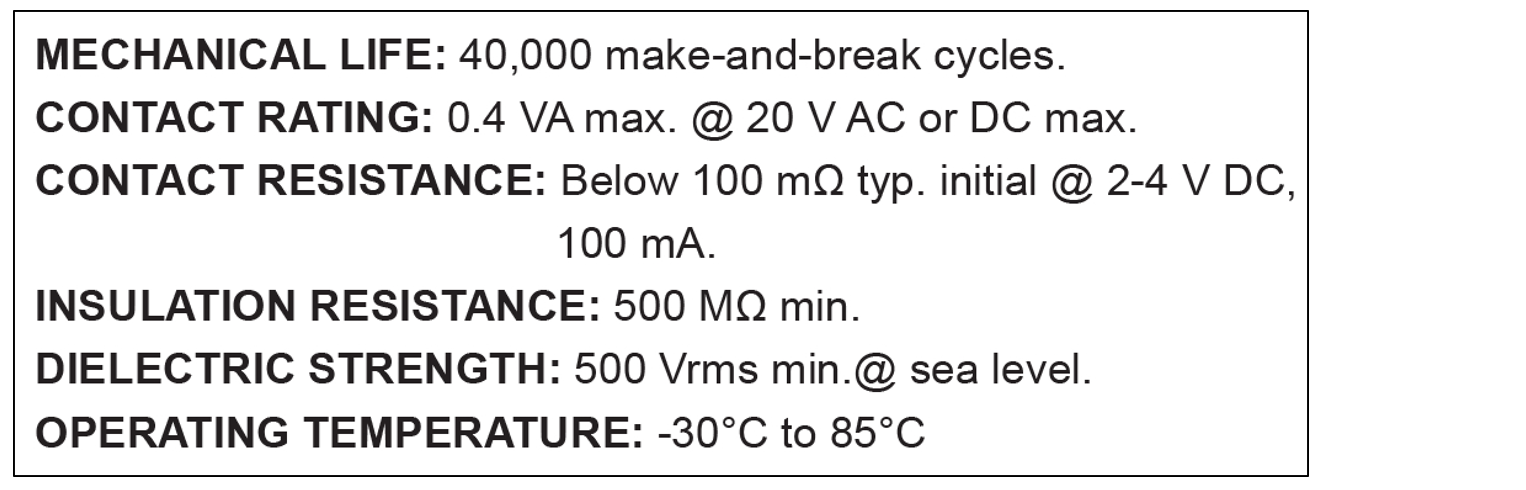

Mechanical & Electrical Specs

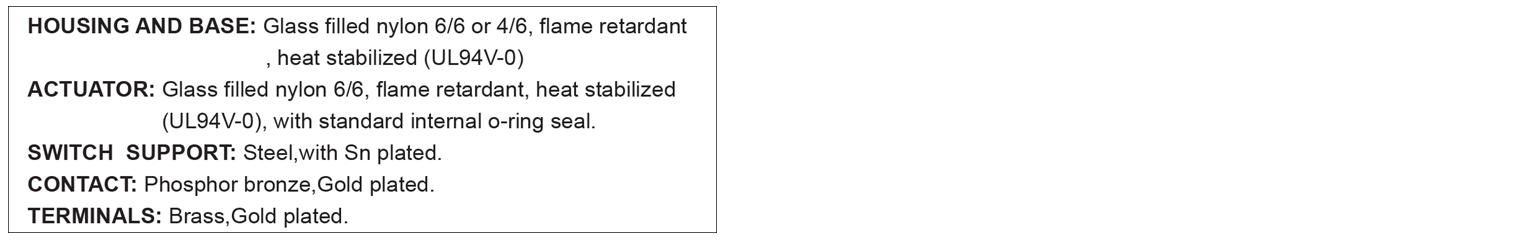

Materials
