IP Rating | |
---|---|
Configuration | 1NC (SPST) [push to break], 1NO (SPST) [push to make], 1NO1NC (SPCO) [change over], 2NC (DPST) [push to break], 2NO (DPST) [push to make], 2NO2NC (DPCO) [change over] |
Illumination | |
Cap / Actuator Shape | |
Function | |
# NO Contacts | |
# NC Contacts | |
Product Series | |
Switch Travel | |
Switch Action |
19mm antivandal switch with no LED illumination.
Key Features:
- Ø 19mm Panel cut out
- Momentary/Latching
- Single/Bi-colour/RGB LED illumination
- IP67 rated (from the front)
- SPDT/DPST
- 3V-24V DC LED
Applications
- Automotive
- Boat building & Marine
- Security
- Door entry
- Medical

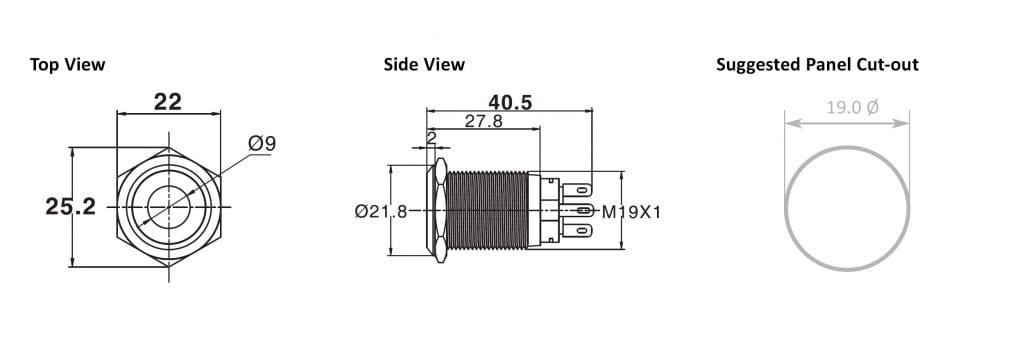

Drawing
