RJS1N1LP-22M-H~67J

This 22mm Anti Vandal Switch with No LED Illumination is robust and well suited to high usage applications. This switch has a momentary function, micro-travel and is IP67 rated with SPDT configuration.

Key Features:

  • Ø 22mm Panel cut out
  • Momentary function
  • Non-illuminated
  • 3V-24V DC LED
  • IP67 (from the front)
  • SPDT
  • Low profile with micro travel
Product Series

,

IP Rating

Configuration

Mechanical Operations

Cap / Actuator Shape

,

Bezel Shape

,

Illumination

Single LED options

Function

,

Panel Cut-Out Diameter

Switch Action

# NO Contacts

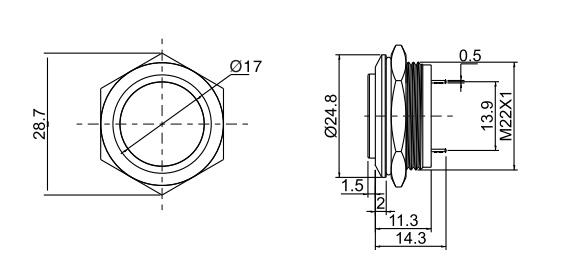

drawing for low profile switch, rjs electronics ltd
