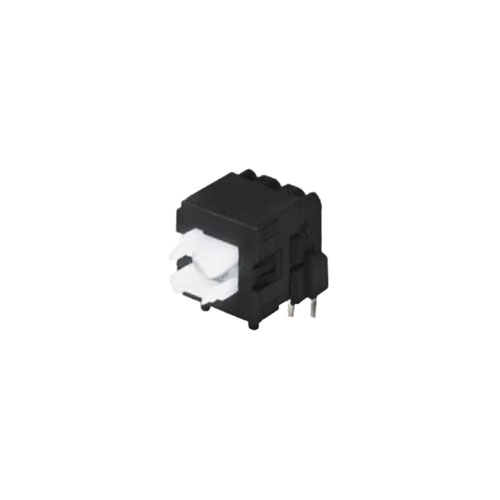

PCB Push button switch, side actuated with right angle terminal. Available with a momentary or latching function.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Illumination | |
| Orientation | |
| Terminal Options | |
| Product Material Options |
|

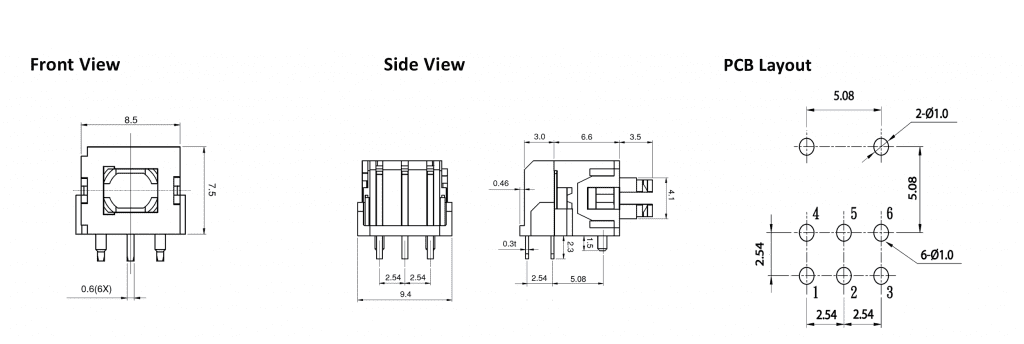

TP613 Series Specification
|
|
| Rating | 0.1A 30VDC |
| Insulation Resistance | 100MΩ Min (at 500VCD) |
| Dielectric Strength | AC 500V (50/60 Hz for 1 minute) |
| Contact Resistance | 50mΩ Max. (Initial) |
| Electrical Life | 10,000 Cycles Min |
| Ambient Temperature | -10°c~ +80°c |
| Operating force | 150 + 100gf (Momentary)
250 + 100gf (Alternate) 200 + 100gf (Momentary with click) |
