TP615L

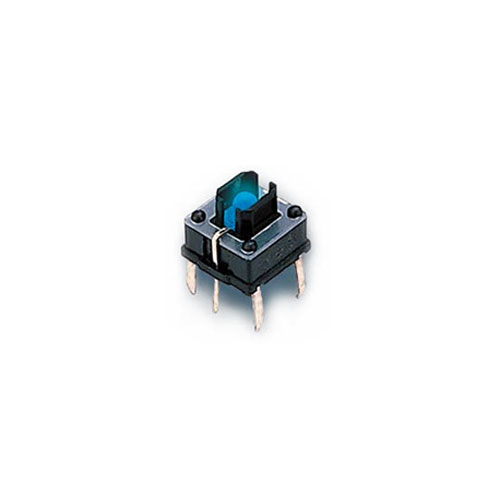

PCB push button with the option for single or bi-colour LED illumination, making it easy to see in any lighting situation. This switch is available with a range of caps to suit your needs, allowing you to easily customise it to match the aesthetics of your project.

Key Features:

  • Switch only
  • Momentary function
  • Single / bi-colour LED illumination option
  • Available with caps
  • Rating: 50mA 12VDC
Configuration

Illumination

Single LED options

, , , , , , , , ,

Terminal Options

Orientation

Function

,



TP6151 Series Specification



Rating 50mA 12VDC
Insulation Resistance 100MΩ Min (at 500VCD)
Dielectric Strength AC 250V (50/60 Hz for 1 minute)
Contact Resistance 100mΩ Max. (Initial)
Electrical Life 300,000 Cycles Min
Ambient Temperature -25°c~ +70°c
Operating force 160 + 50gf

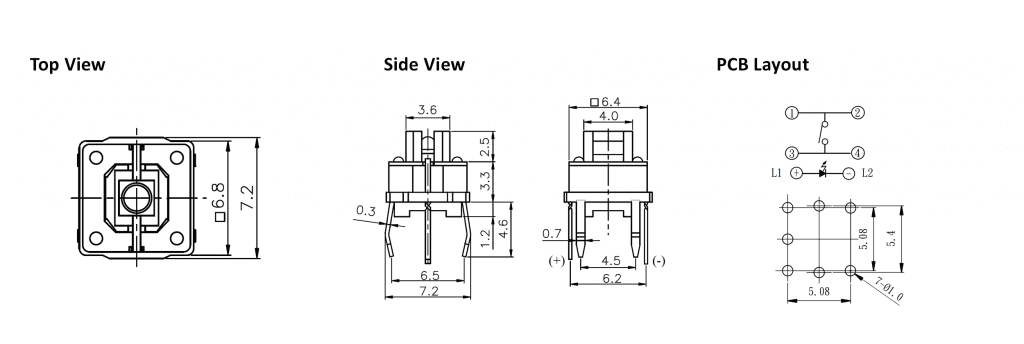

pcb switch with illumination drawing, rjs electronics ltd
