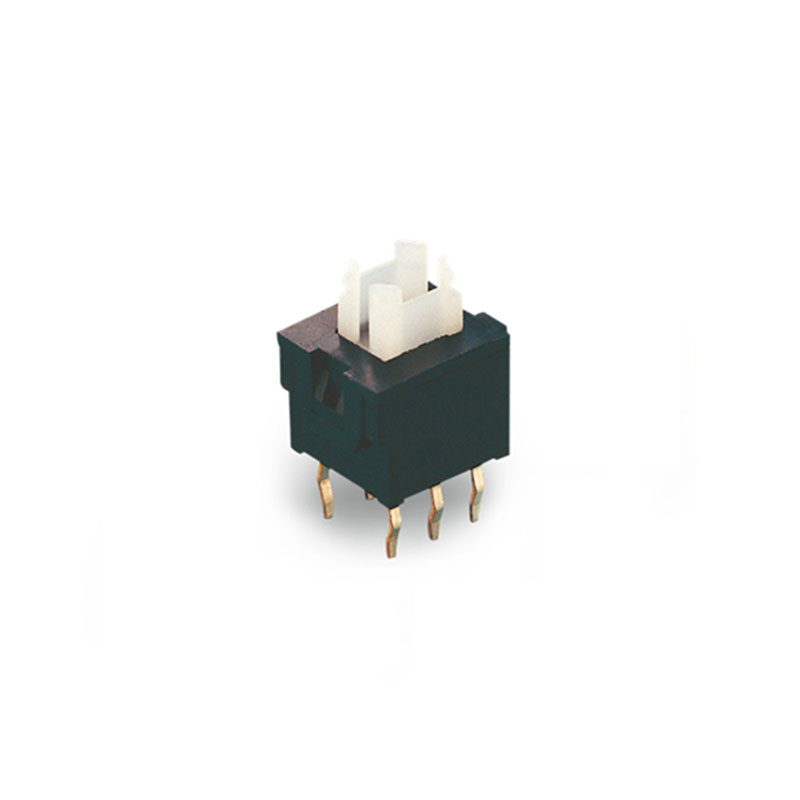

High-quality push button switch, now available with the switch only, with momentary function. You can also choose between a single or bi-colour LED illumination option to suit your specific needs.

Choose the TP613A for the latching version.

Key Features:

  • Switch Only
  • Momentary function
  • Switch rating: 0.1A 30VDC
  • PCB mount
  • Single/bi-colour LED illumination option

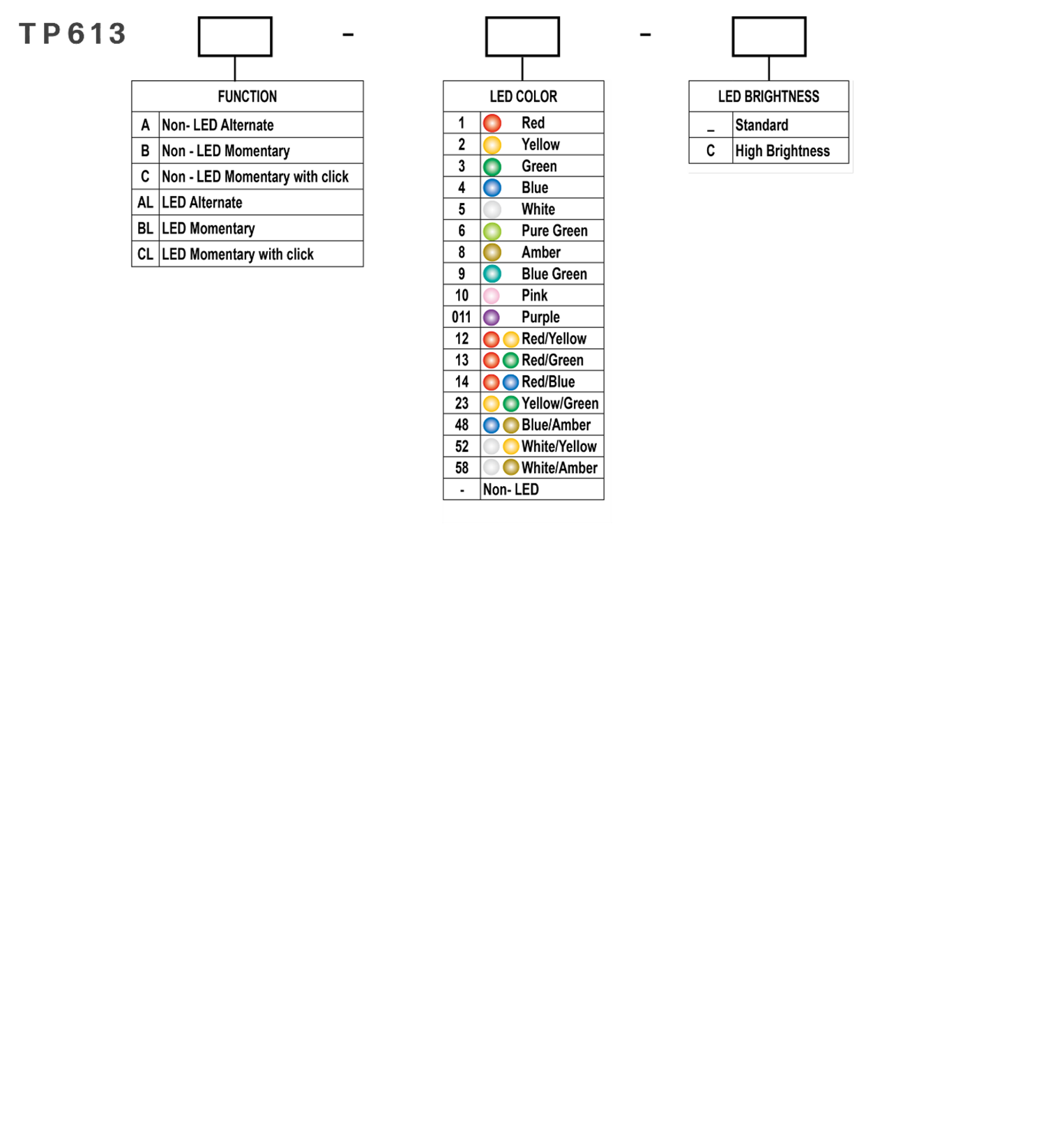

Product Series

Switch Action

, ,

Switch Circuit

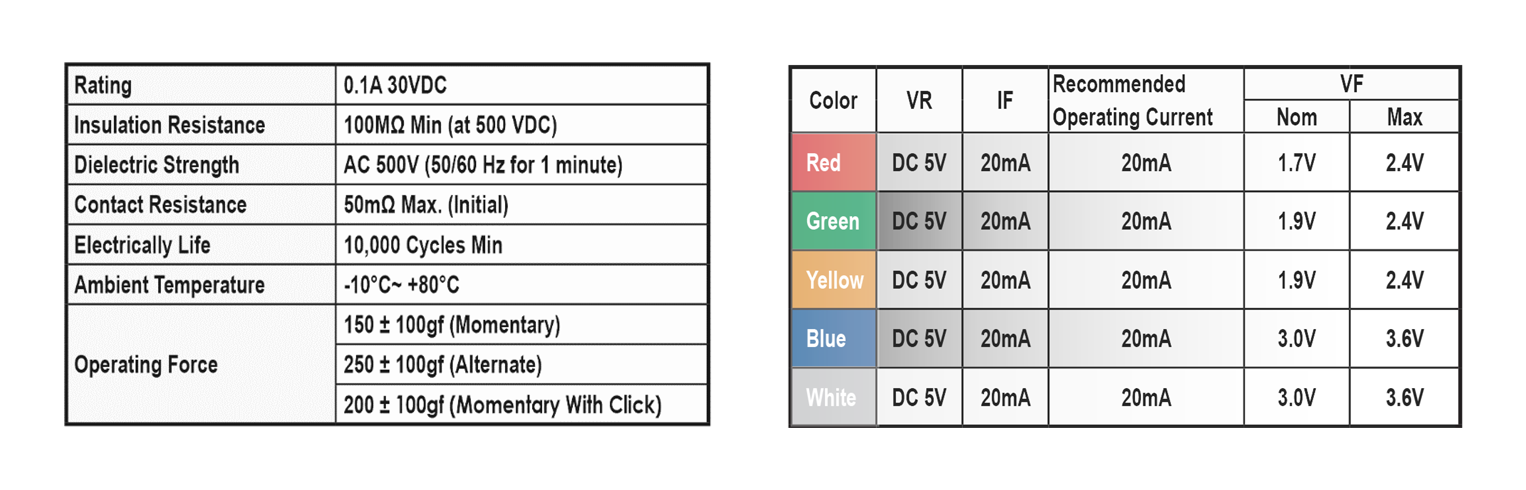

TP613 Series Specification


Rating 0.1A 30VDC
Insulation Resistance 100MΩ Min (at 500VCD)
Dielectric Strength AC 500V (50/60 Hz for 1 minute)
Contact Resistance 50mΩ Max. (Initial)
Electrical Life 10,000 Cycles Min
Ambient Temperature -10°c~ +80°c
Operating force 150 + 100gf (Momentary)

250 + 100gf (Alternate)

200 + 100gf (Momentary with click)
