SPD5K2

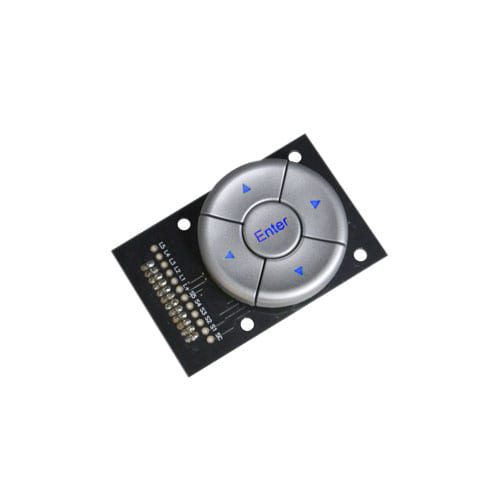

This PCB mount Navigation Module features 5 SPD tactile push button switches with a momentary function and connector quick assemble. Available with silver, black or white caps, LED illumination and custom etchings.

Key Features:

  • 5 SPD tactile push button switches mounted on a PCB
  • Illuminated switches available – Custom laser cut legends for LED symbols
  • Momentary function
  • Connector quick assemble
  • Tactile switch



Switches can be supplied separately without being mounted on PCB | View our SPD series here

Product Series

Function

, ,

Illumination

,

Terminal Options

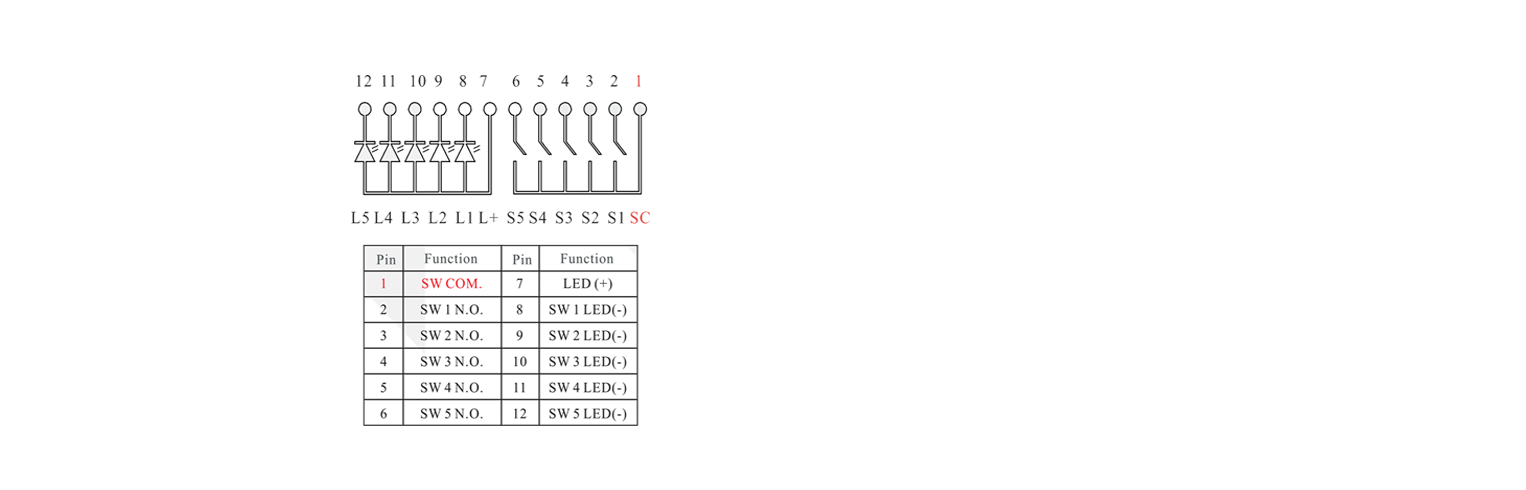

Switch Circuit

Switch Travel

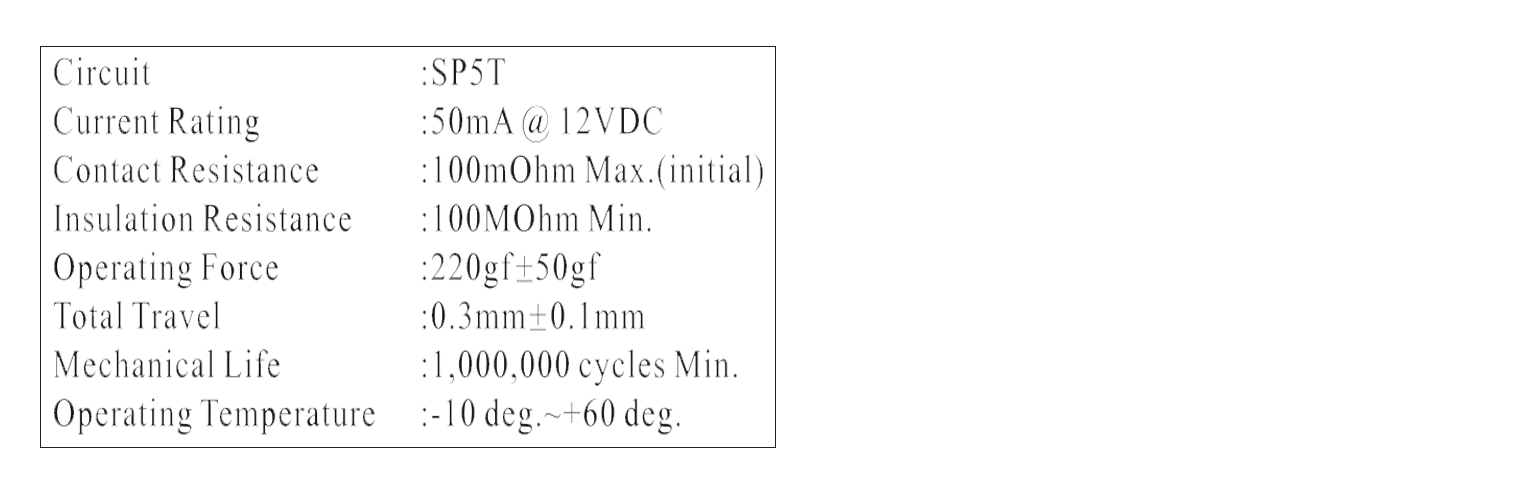

SPD-Z Series Specification



Circuit SPST
Current rating 50mA @ 12VDC
Contact resistance 100mOhm max.(initial)
Insulation resistance 100MOhm min
Operating force 220gf + 50gf (S1~4)
Total travel 0.3mm + 0.1mm
Mechanical life 1,000,000 cycles min
Operating temperature -25deg~+60deg
Solder specifications 250 deg

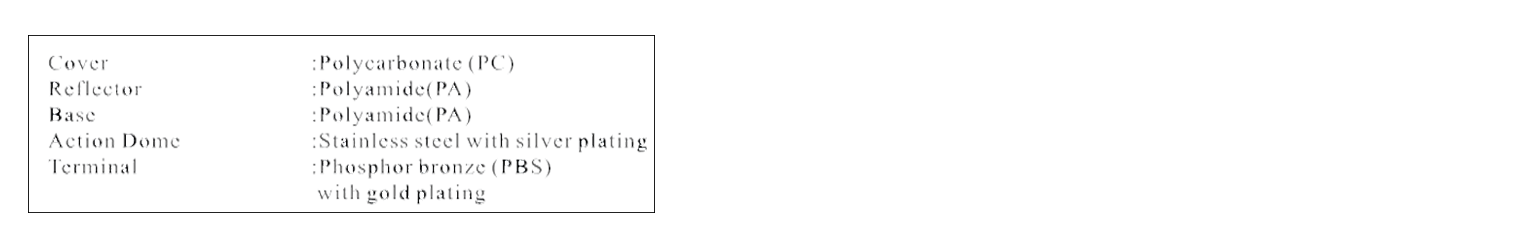

SPD-Z Series Materials



Cover Polycarbonate (PC)
reflector Polyamide (PA)
Base LCP
Action dome Stainless steel with silver plating
Terminal Phosphor bronze (PBS) with gold plating

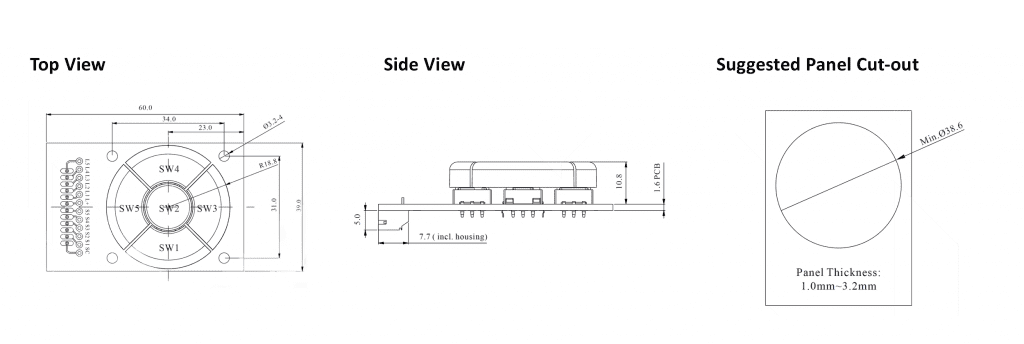

Drawing of SPD5K2, 5 SPD tactile push button switches mounted on a PCB, momentary tactile function, custom led illumination, rjs electronics ltd
