Ø16mm non-illuminated low profile Anti vandal switch.
Key Features:
- Ø16mm Panel cut out
- Momentary
- Non-illuminated
- IP67 / IP68 rated (from the front)
- SPST
- Ultra low profile (12.3mm from the underside of the bezel)
Applications:
- Automotive
- Boat building & Marine
- Security
- Audio & Broadcast
- Medical
SKU: 1435
Categories: 16mm, Applications, Boat Building & Marine, Door Entry / Security, Low Profile Switches, Metal Pushbutton Switches, Panel Mount
Tags: Low Profile Switches, Micro-Travel

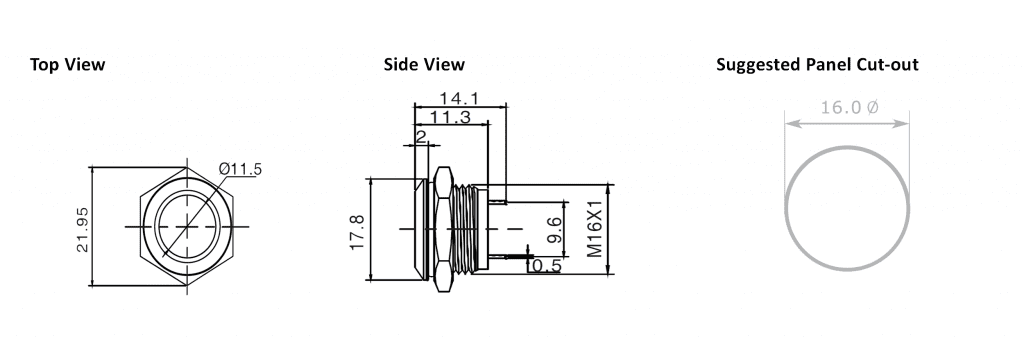

Drawing
