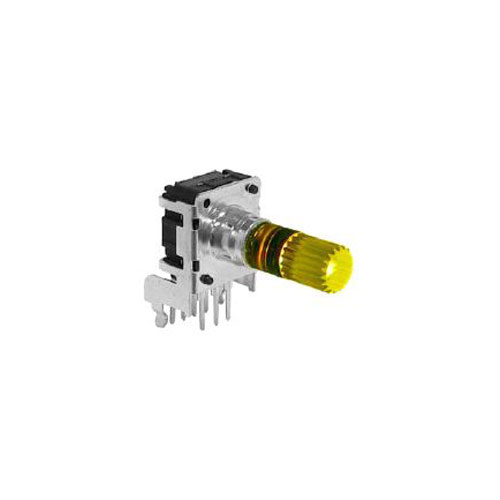

RJSILLUME-12S24212

Key Features:

  • LED illuminated Rotary Encoder with push on switch
  • Horizontal type
  • High precision LED Illumination
  • 12mm
  • 0.5mm switch travel
  • Rotational Life (cycle): 30,000

Applications:

  • Broadcast
  • Menu Selection
  • Audio and visual control



SKU: 11842 Categories: , ,
Function

,

Illumination

Single LED options

, , , , , , ,

Multi-Colour LED Options

Switch Action

Switch Travel

Mechanical Operations

Rating

DC 5V
10 mA

Contact Resistance

100 mΩ

Insulation Resistance

250V DC
100MΩ Min

Dielectric Strength

300V AC
1 Min

Product Series

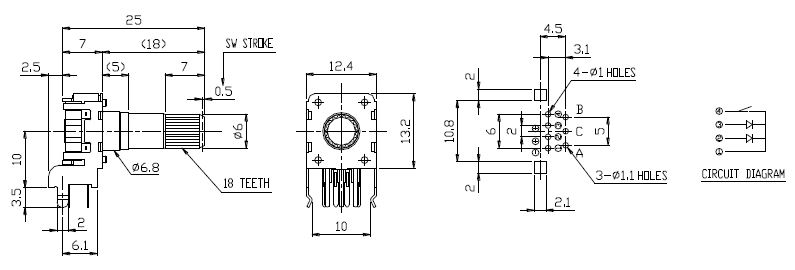

Circuit
